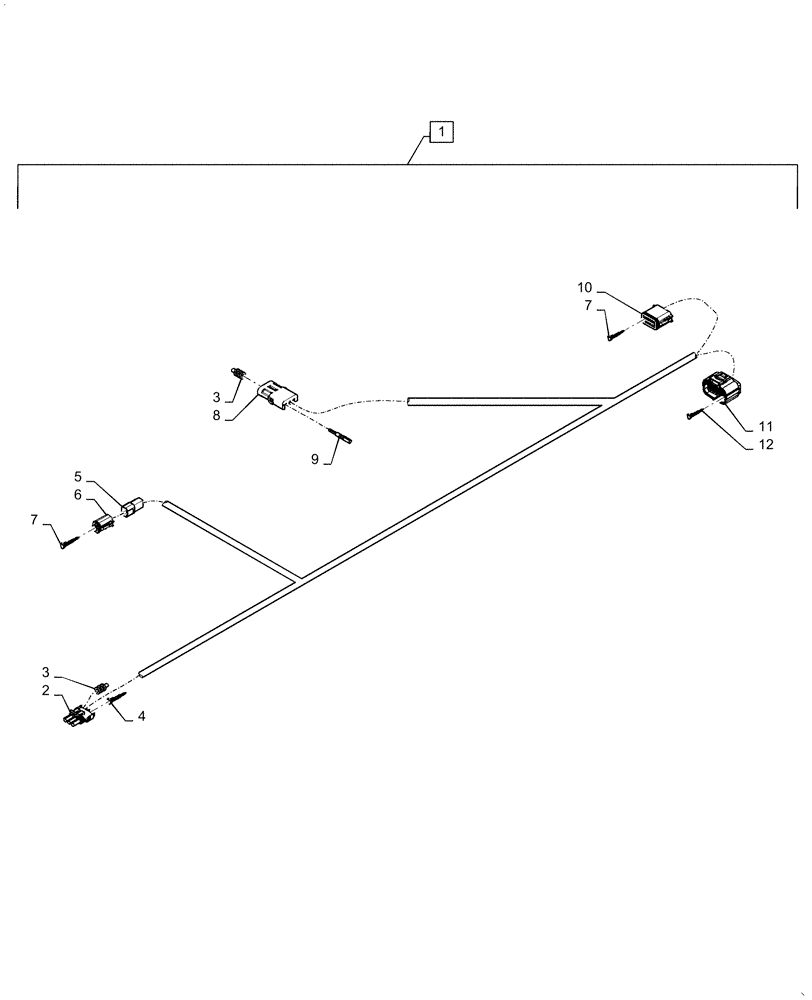

Запчасти Case IH RP65 (55.015.AB) - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

1

47612032

WIRE HARNESS

Engine

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

Housing

1шт.

3

87680710

SEAL

Cable

2шт.

4

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Male

1шт.

5

87694101

ELEC CONNECTOR,Female, 4 Cavities

Housing

1шт.

6

87694148

ELEC CONNECTOR

Locking Wedge

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Stamped Socket, 16

2шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Housing

1шт.

9

87692882

ELEC. TERMINAL PIN

Male

1шт.

10

87695592

CONTACT HOUSING,Female, 12 Pole

Housing

1шт.

11

87710914

STOP LOCK,12 Pin Plug

12-Pin

1шт.

12

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

1шт.
