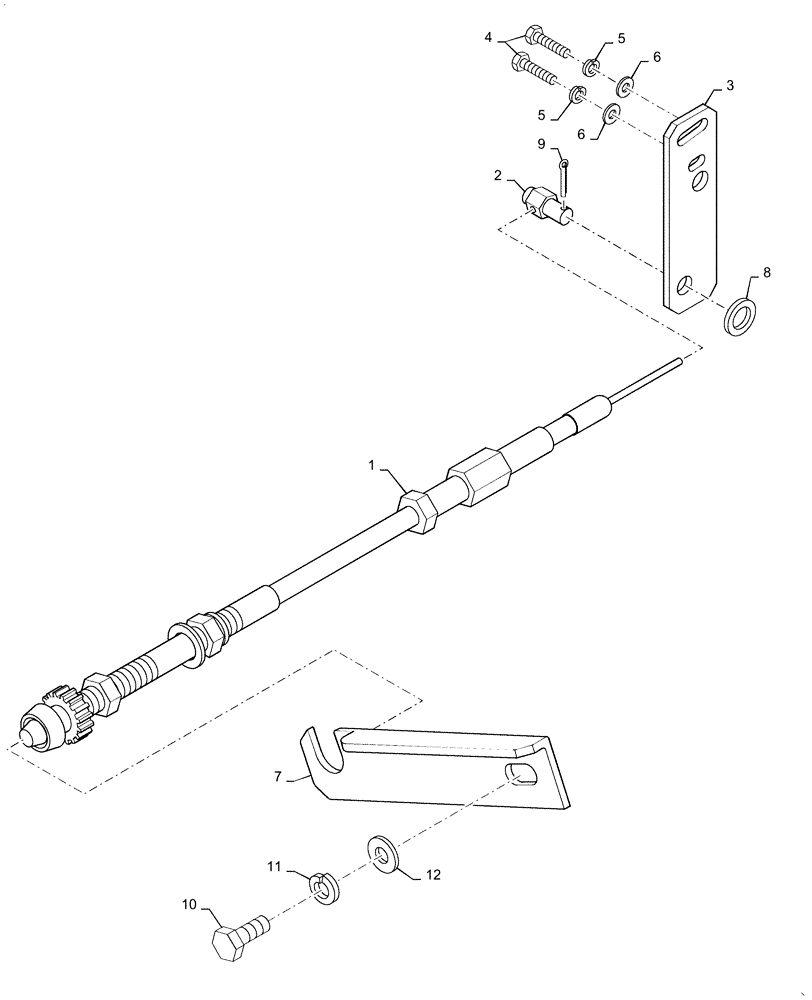

Запчасти Case IH RP65 (10.220.AA) - THROTTLE CONTROL (10) - ENGINE

1

47635401

CABLE

Throttle Control

1шт.

2

309762A1

PIVOT

Control Cable

1шт.

3

300747A1

BRACKET

Throttle Lever Extension, at Injection Pump

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

300746A1

BRACKET

Mounting, Control Cable at Flywheel Housing

1шт.

8

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

9

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

10

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

11

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.
