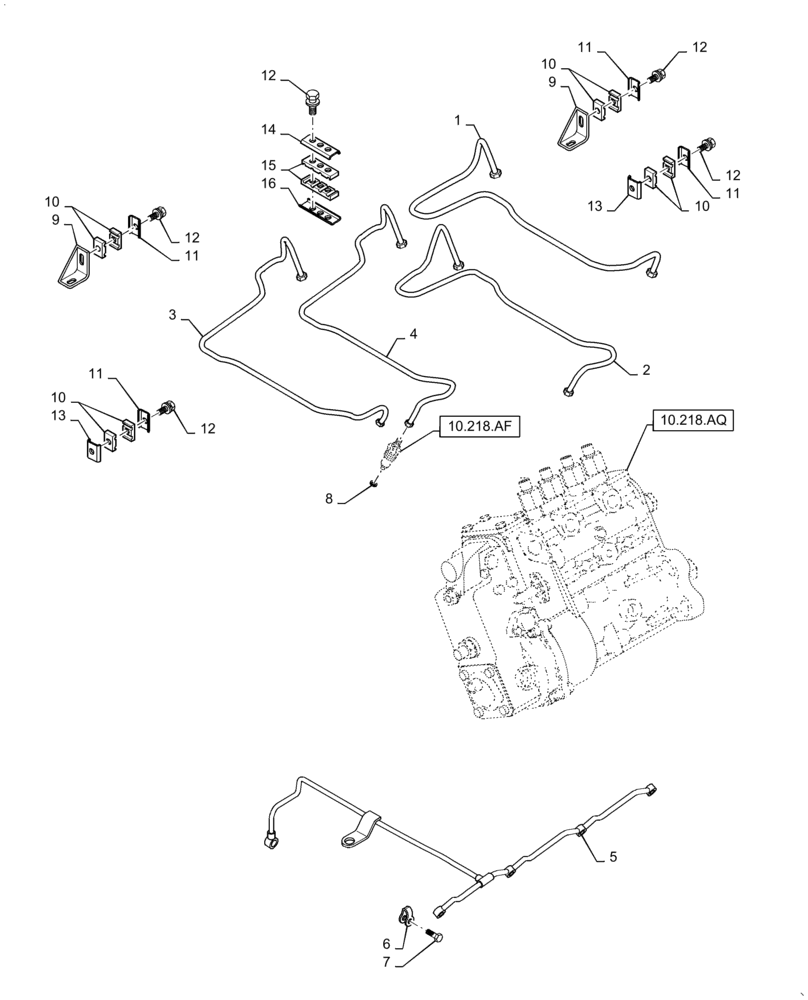

Запчасти Case IH RP65 (10.218.AE[01]) - FUEL INJECTOR, LINES (10) - ENGINE

1

J929393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1 Cylinder

1шт.

2

J929394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2 Cylinder

1шт.

3

J929395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3 Cylinder

1шт.

4

J929396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4 Cylinder

1шт.

5

J927633

TUBE

Fuel Manifold

1шт.

6

J903380

SEAL

Connector

4шт.

7

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

8

J930324

SEAL

7 mm Injector Tip

4шт.

9

J920414

BRACE

Fuel Tube

2шт.

10

J917746

CLAMP

Fuel Tube

8шт.

11

CASJ904711

SUPPORT

Fuel Tube

4шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J917717

BRACE

Fuel Tube

2шт.

14

J918785

BRACE

Tube

1шт.

15

J918786

FIXING BRACKET

Vibration

2шт.

16

J918784

CLAMP

Tube

1шт.
