Запчасти Case IH RP65 (10.218.AD) - FUEL FILTER & FUEL TRANSFER PUMP (10) - ENGINE

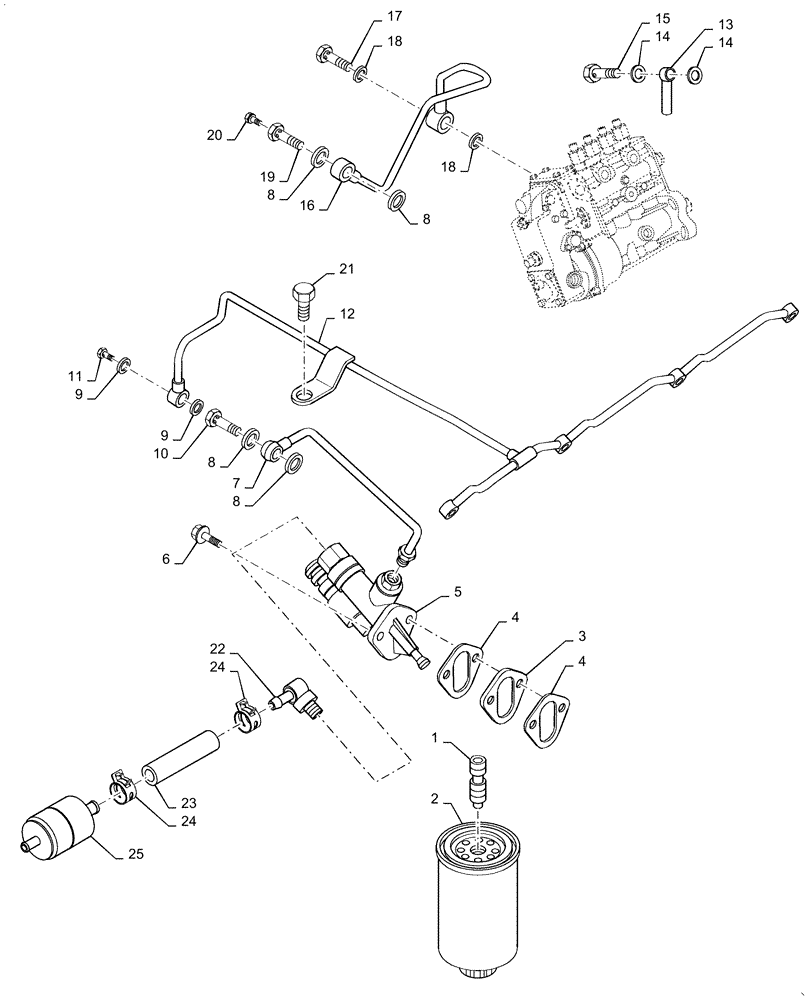

Схема запчастей Case IH RP65 - (10.218.AD) - FUEL FILTER & FUEL TRANSFER PUMP (10) - ENGINE
21
9
11
8
24
17
19
2
12
24
10
6
8
13
14
18
16
7
5
9
8
8
18
14
20
15
25
4
22
23
4
1
3

Артикул

Название

Примечание

Количество

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

Fuel Filter

1шт.

2

71104220

FUEL FILTER

Fuel

1шт.

3

J914284

SPACER

Fuel Transfer Pump Mounting

1шт.

4

J939258

GASKET,1.21mm Thk

Fuel Transfer Pump Mounting

1шт.

5

87473337

FUEL PUMP

Fuel Transfer

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 18 x1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

Sealing

2шт.

10

J916361

BANJO BOLT

M12 x 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

1шт.

12

J284579

TUBE

Fuel Manifold

1шт.

12

J927633

TUBE

Fuel Manifold

1шт.

13

J911447

CONNECTOR, ELEC

Banjo, Fuel Return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Sealing M14 x 20 x 1 mm

2шт.

15

87409051

VALVE

Overflow

1шт.

16

J936348

FUEL TUBE,8 mm OD x 232.2, 46.1 mm L

Fuel Supply

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

M14 x 20 x 1 mm

2шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

21

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

22

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

23

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

1шт.

Use Bulk Hose 364357C2 7620 mm (300 inches) Long

1шт.

24

1348264C1

HOSE CLAMP

3/8 inch

2шт.

25

D139225

FILTER, FUEL

In-line Fuel

1шт.

Выбрано товаров: 27
