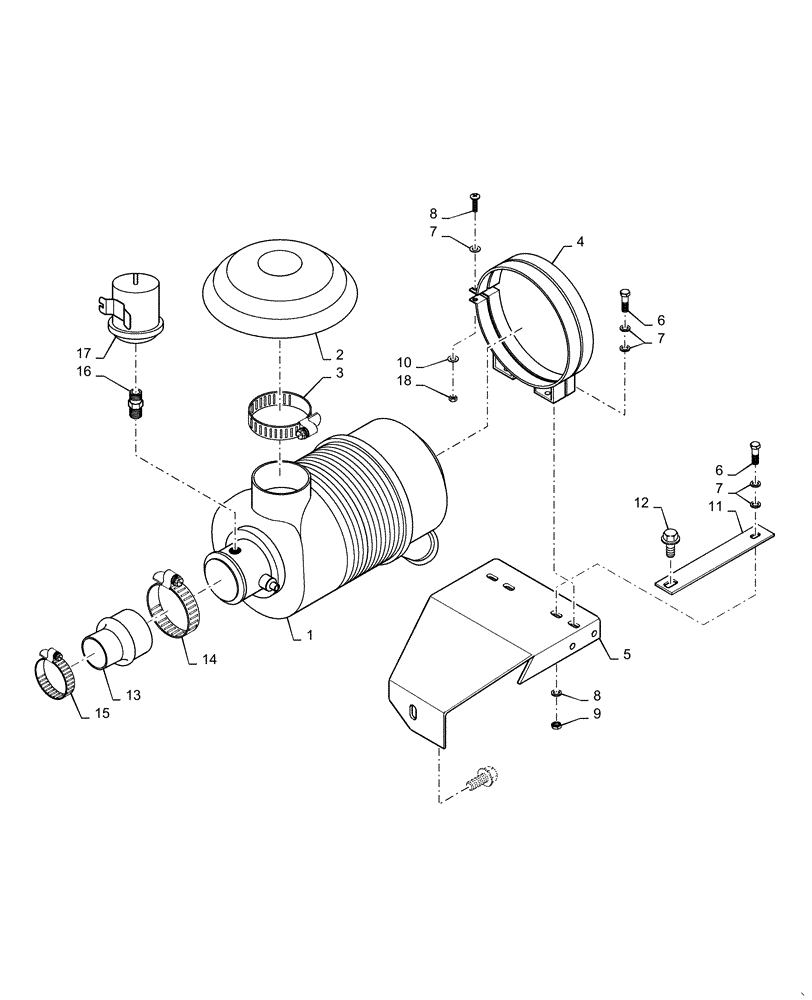

Запчасти Case IH RP65 (10.202.BD) - AIR INDUCTION SYSTEM - RP65 UNITS (10) - ENGINE

1

47610227

AIR CLEANER

Cleaner Assy, Air, PL See Fig 10.202.AB

1шт.

2

70698760

COVER

Air Cleaner

1шт.

3

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Air Cleaner Inlet

1шт.

4

84057675

CLAMP BRACKET

Air Cleaner

1шт.

5

322634A1

BRACKET

Air Cleaner Mounting

1шт.

6

86512170

BOLT,Hex Flg, 5/16" - 18 x 1 1/2"

3шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

8

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

Heavy Lock

2шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

3шт.

10

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

11

322635A1

BRACE

Air Cleaner Mounting

1шт.

12

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

Air Cleaner Support Brace to Cylinder Head

1шт.

13

S83126

ADAPTER

Rubber, Air Cleaner to Intake Elbow

1шт.

14

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

Air Cleaner End of Reducer Hose

1шт.

15

87040758

HOSE CLAMP,71.4mm - 95.2mm

Turbo End of Reducer Hose

1шт.

16

D36264

FITTING

Indicator, 1/8 NPT X 1/8 NPT

1шт.

17

A59569

INDICATOR

Air Restriction

1шт.

18

353308

NUT,M6 x 1.0, Cl 8

2шт.
