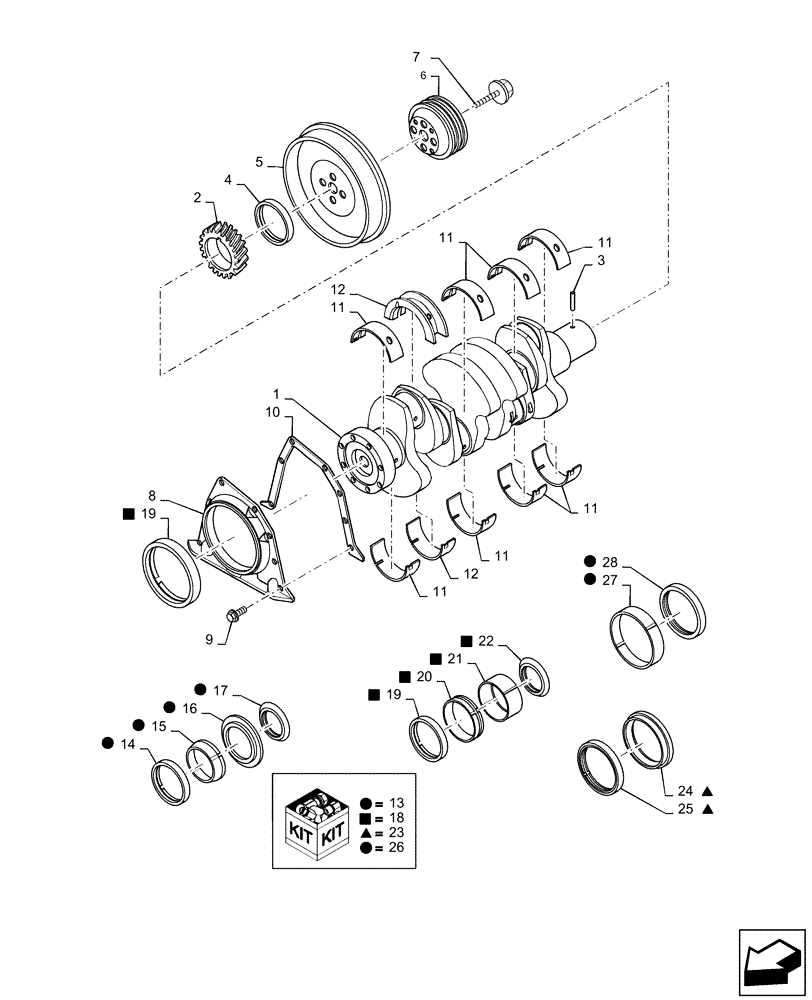

Запчасти Case IH RP65 (10.103.AA) - CRANKSHAFT (10) - ENGINE

1

J929036R

REMAN-CRANKSHAFT

1шт.

1

J929036C

CORE-CRANKSHAFT

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Comes in Kit A77889

1шт.

5

J914494

PULLEY,181.25mm OD

Crankshaft Vibration Dampner

1шт.

6

J907982

PULLEY

Crankshaft Accessory, if used

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

4шт.

8

J936904

REAR COVER

1шт.

9

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

10

J938159

GASKET

Rear Cover Retainer

1шт.

11

J804940

BEARING SET

Main, Upper and Lower Set, Standard

4шт.

11

84282771

BEARING LINER,Main, Incl Upper and Lower, STD

Main, Upper and Lower Set, Standard

4шт.

11

84282772

BEARING SET,Main, Incl Upper and Lower, 0.25mm

Main, Upper and Lower Set, 0.25 mm Undersized

4шт.

11

84282773

BEARING,84.11mm ID x 89.54mm OD x 28.9mm W

Main, Upper and Lower Set, 0.50 mm Undersized

4шт.

11

84282774

BEARING

Main, Upper and Lower Set, 0.75 mm Undersized

4шт.

11

84282775

BEARING,83.66mm ID x 89.54mm OD x 28.9mm W

Main, Upper and Lower Set, 1.00 mm Undersized

4шт.

12

A77895

THRUST BEARING,KIT

Main Thrust, Upper and Lower Set, Standard

1шт.

12

84282776

BEARING SET

Main Thrust, Upper and Lower Set, Standard

1шт.

12

84282777

BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersized

1шт.

12

84282778

BEARING,88.01mm ID x 114.15mm OD x 37.33mm W

Main Thrust, Upper and Lower Set, 0.50 mm Undersized

1шт.

12

84282779

BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersized

1шт.

12

84282780

BEARING

Main Thrust, Upper and Lower Set, 1.00 mm Undersized

1шт.

12

84282782

BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize, 0.50 mm Oversize Thrust

1шт.

12

84282783

BEARING,88.01mm ID x 114.15mm OD x 38.33mm W

Main Thrust, Upper and Lower Set, 1.00 mm Undersize, 1.00 mm Oversize Thrust

1шт.

13

A77889

SEAL PACKAGE

Oil Seal, Crankshaft Front

1шт.

14

NSS

NOT SOLD SEPARAT

Oil, Front Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Installation Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Installation Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Dust Shield

1шт.

18

A77890

SEAL PACKAGE

Oil Seal, Crankshaft Front, Includes Wear Sleeve

1шт.

19

NSS

NOT SOLD SEPARAT

Oil, Front Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Wear Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Installation Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Dust Shield

1шт.

23

J934486

SERVICE KIT

Oil Seal, Crankshaft Rear

1шт.

24

NSS

NOT SOLD SEPARAT

Installation Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Oil, Rear Seal

1шт.

26

A77810

SERVICE KIT

Oil Seal, Crankshaft Rear, Includes Wear Sleeve

1шт.

27

NSS

NOT SOLD SEPARAT

Wear Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Oil, Rear Seal

1шт.
