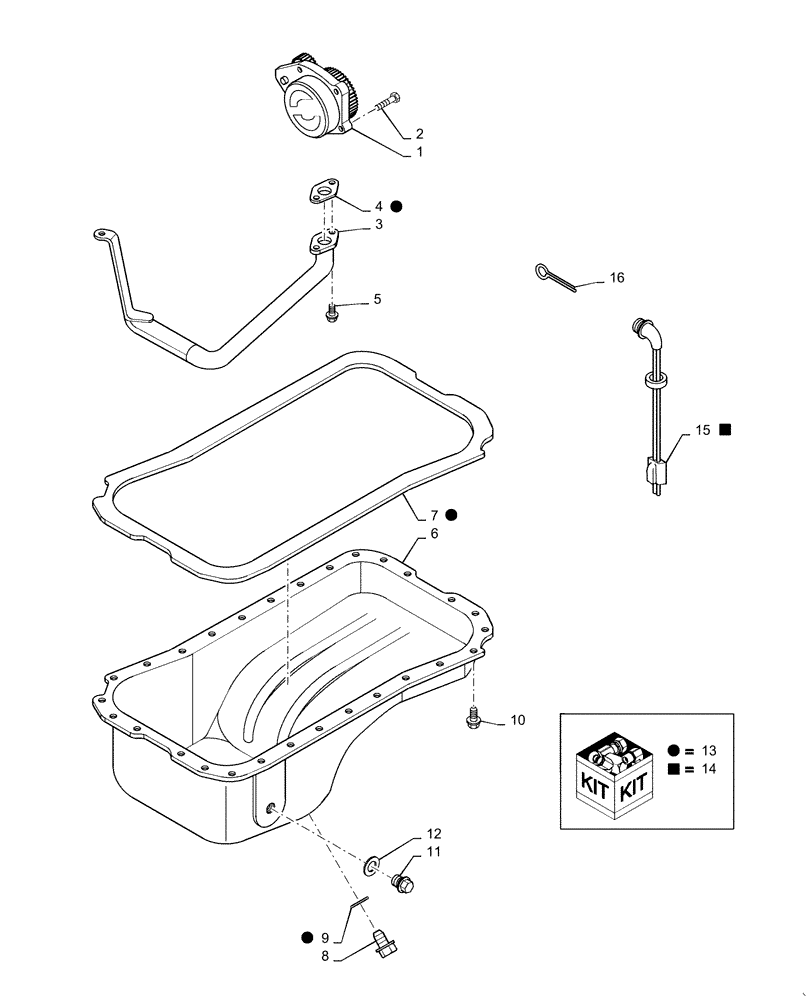

Запчасти Case IH RP65 (10.102.AD) - OIL PUMP & PAN (10) - ENGINE

1

87717475R

REMAN-ENG OIL PUMP

1шт.

1

87717475C

CORE-ENGINE OIL PUMP

1шт.

2

J900677

BOLT,Hex

1.25 x 30mm

4шт.

3

J905206

TUBE,1" OD

Suction

1шт.

4

J938157

GASKET,1.2mm Thk

Oil Suction Tube

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1.25 x 16mm

3шт.

6

J901049

PAN, ENGINE OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Incl with Ref 13

1шт.

8

J924147

PLUG,M18 x 1.5

12mm x 1.5 Oil Drain

1шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

Drain Plug

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

1.25 x 25mm

28шт.

11

J924148

PLUG,M22 x 1.5

22mm x 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

13

A77673

GASKET KIT

1шт.

14

A77490

KIT

Oil Pan Heater

1шт.

15

87105748

ELECTRIC CABLE,120V, 15A

1830 mm (72 inches) Long

1шт.

16

NSS

NOT SOLD SEPARAT

Element, Incl with 14

1шт.
