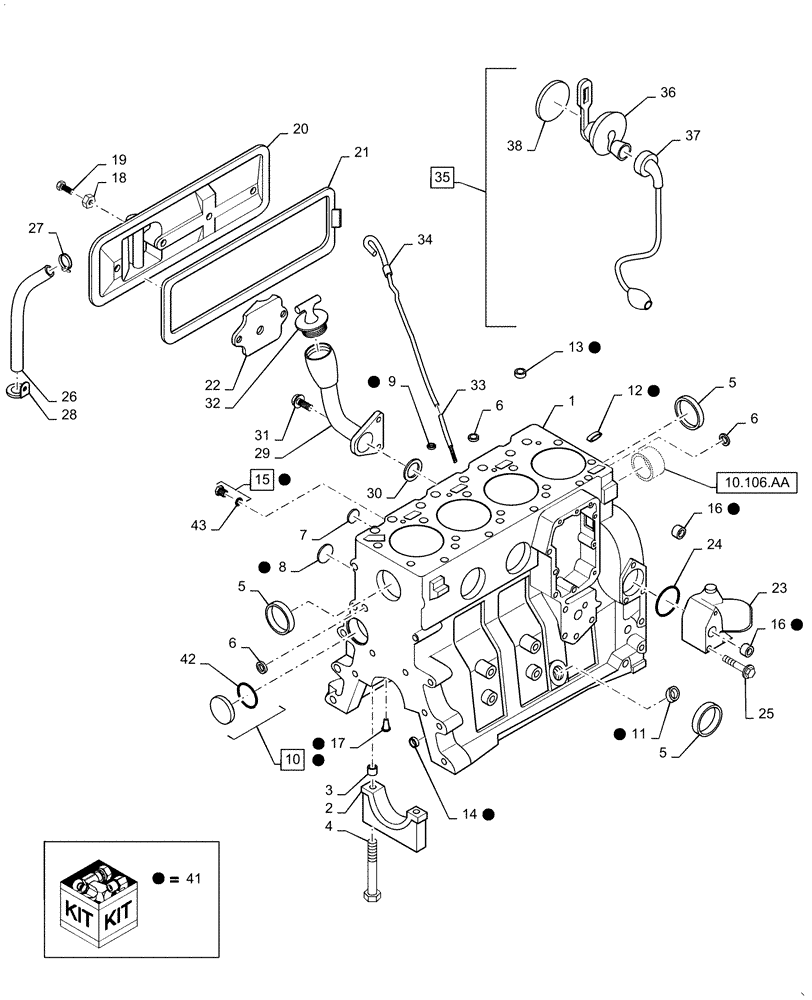

Запчасти Case IH RP65 (10.001.AD[01]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

339851A1R

REMAN-BASIC ENGINE

Assembly

1шт.

If Engine Tag Has CPL 2362 or 2458, Also Order 1.5mm Seal (PN J937142 Qty. 4)

1шт.

If Engine Tag Has CPL 2293, Also Order 2.5mm Seal (PN J923261 Qty. 4)

1шт.

1

339851A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

J935600R

SHORT ENGINE

Short Block

1шт.

If Engine Tag Has CPL 2362 or 2458, Also Order 1.5mm Seal (PN J937142 Qty. 4)

1шт.

If Engine Tag Has CPL 2293, Also Order 2.5mm Seal (PN J923261 Qty. 4)

1шт.

1

J935600C

CORE-SHORT ENGINE

Return Part Number

1шт.

1

84271255

BLOCK ASSY.

Stripped, Must Order Ref 41

1шт.

2

87579994

BEARING ASSY

Cap, Main

5шт.

3

J900068

BEARING WASHER

Ring, Dowel

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Bearing Cap

10шт.

5

75312133

PLUG

Expansion, 58mm

1шт.

6

J900956

PLUG

Expansion, 18mm

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Expansion

2шт.

8

J900958

PLUG

Expansion, 32mm, Incl with 41

2шт.

9

J900955

PLUG

Expansion, 10mm, Incl with 41

1шт.

10

41-3038

PLUG,Exp, 2 3/8"

Incl with 41, Incl 42

1шт.

11

J920706

PLUG

Expansion, .886mm, Incl with 41

1шт.

12

J900257

PIN,10.01mm OD x 16mm L

Dowel, 16mm, Incl with 41

2шт.

13

J902343

DOWEL

Ring, 16mm, Incl with 41

2шт.

14

J900068

BEARING WASHER

Dowel Ring, 18mm, Incl with 41

2шт.

15

J678923

PLUG,M10 x 1

Hex Socket Pipe, 10mm, Incl with 41, Incl 42

2шт.

16

87034671

PLUG,Hex Soc, 1/2"-14

Incl with 41

3шт.

17

J937214

NOZZLE CAP

Piston Cooling, Incl with 41

4шт.

18

J928759

SEALING WASHER

Cover Bolt

4шт.

19

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

20

J936186

COVER

Tappet

1шт.

21

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

22

J907586

BAFFLE

Tappet Cover

1шт.

23

J934877

HYD CONNECTOR

Water Inlet

1шт.

24

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50mm

1шт.

25

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

26

J918612

TUBE,360.00 mm

Breather

1шт.

27

J904230

CLAMP,25.4mm

Spring, Hose

1шт.

28

J928989

CLIP

P Style, Retaining

1шт.

29

84396666

TUBE

Oil Fill

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Fill Tube

1шт.

31

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

32

A77424

FILLER CAP

Oil Fill Cap

1шт.

33

84487447

TUBE

Oil Dipstick

1шт.

34

J905782

DIPSTICK

Oil Level

1шт.

35

196803A1

KIT

Engine Block Heater, Incl 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

Engine Heater Element, 12 Volt, Incl with 35

1шт.

37

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater, Incl with 35

1шт.

38

J910517

O-RING

Heater Sealing, Incl with 35

1шт.

39

250838A2

HYD CONNECTOR

Fitting, Not Illustrated

1шт.

40

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

For 39

1шт.

41

84301646

ENGINE OVERHAUL KIT

Hardware, Incl 8 - 17

1шт.

42

J926047

O-RING,0.07" Thk x 2.239" ID

Incl with 10

1шт.

43

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Incl with 15

1шт.
