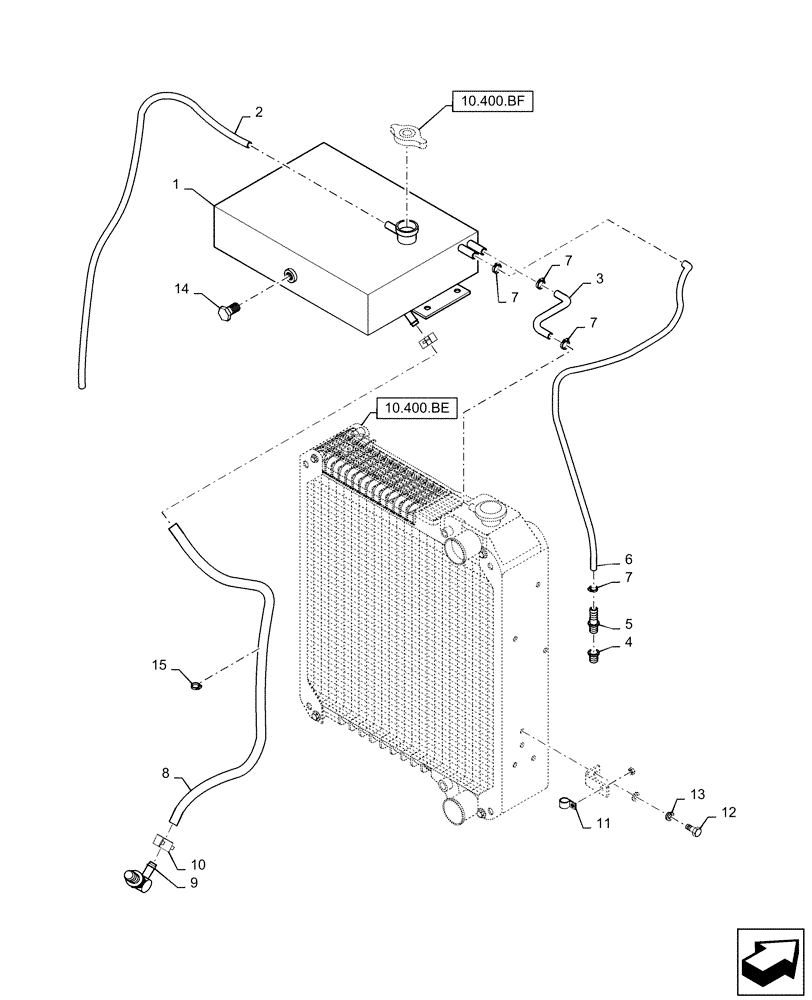

Запчасти Case IH RP65 (10.000.BI) - COOLANT RECOVERY SYSTEM (10) - ENGINE

1

47705958

TANK

Deaeration

1шт.

2

239383A1

HOSE,0.31" ID x 54.50"

1397 mm (55 in) Long, Cut from L126767 Bulk Hose, Deaeration Overflow

1шт.

Hose - Bulk 8 (5/16) ID x 2336 mm (92 in) Long, SAE 20R4, L126767

1шт.

3

303950A1

RADIATOR HOSE,7.90 mm ID x 76.20 mm, SAE J20R4

Formed, Radiator Overflow to Deaeration Tank

1шт.

4

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

Pipe Reducing, Installed in Right-hand Front Top of Cylinder Head

1шт.

5

241173A1

FITTING

Straight, 0.120 in Hole, 1/8 PT X 5/16 in Stem End

1шт.

6

322128A1

HOSE

Straight, 635 mm (25 in) Long, Use from 194881A1

1шт.

Hose - Bulk, 8 (5/16) ID x 7620 mm (300 in) Long, SAE 30R7, 194881A1

1шт.

7

J923527

CLAMP

Spring, Hose

4шт.

8

322028A1

HOSE

19 (3/4) ID X 914 (36 in) Long, Cut from 278703A1 Bulk Hose, Deaeration Tank to Water Pump

1шт.

Hose - Bulk, 19 (3/4) ID x 15240 mm (600 in) Long, 278703A1

1шт.

9

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

Installed in Side Hole of Water Pump Inlet at 2 O'Clock Position

1шт.

10

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

Adj, 9/16 - 1-1/16 in Dia

2шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

P-Type, Fasten to Right-hand Upper Fan Shroud Mounting Bracket

1шт.

12

87015745

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

Lock

1шт.

14

9576801

PLUG,1/4" - 18 NPT

1шт.

15

529070

CABLE TIE,368.3mm L

Used to Tie Deaeration Tank Hose to Upper Radiator Hose

1шт.
