Запчасти Case IH RP165 (88.100.10[02]) - GASKET KIT - CYLINDER BLOCK (88) - ACCESSORIES

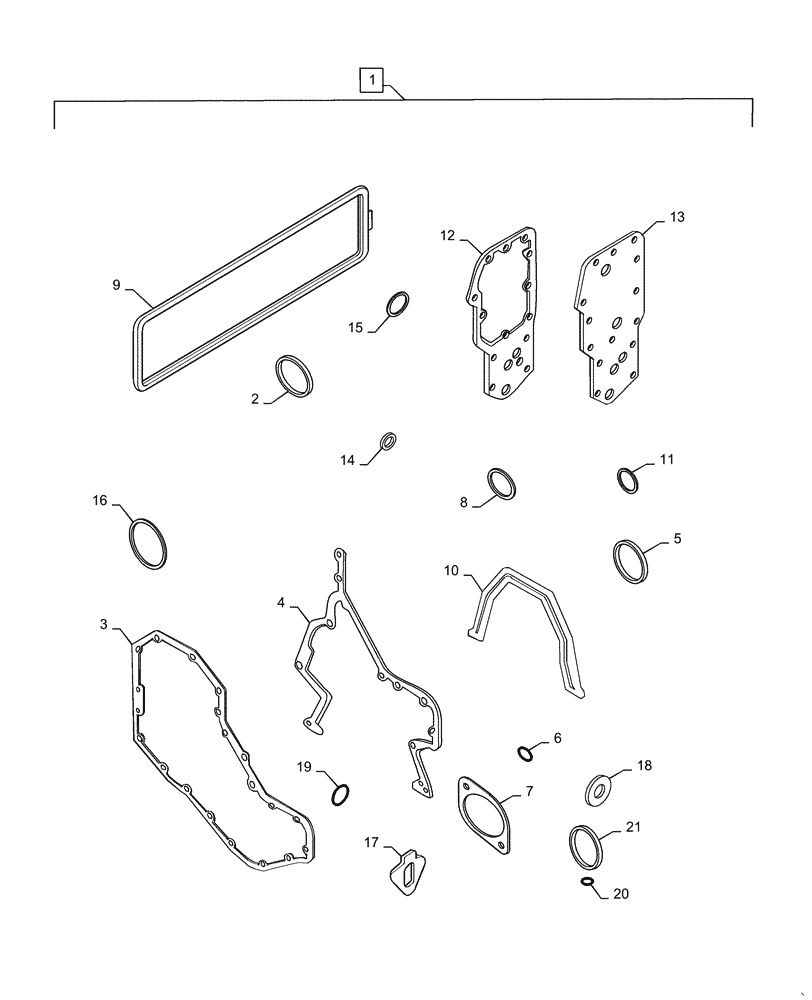

Схема запчастей Case IH RP165 - (88.100.10[02]) - GASKET KIT - CYLINDER BLOCK (88) - ACCESSORIES
21
4
15
11
2
3
16
10
20
14
13
9
5
19
12
8
17
6
7
18
1

Артикул

Название

Примечание

Количество

1

A77868

SEAL PACKAGE

Incl 2 - 21

1шт.

For Complete Overhaul also Order Valve Grind Kit, Oil Pan Kit, Front and Rear Crankshaft Seal Kit, and Required Head Gasket

1шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover

1шт.

3

J918673

GASKET,1.02mm Thk

Front Cover

1шт.

4

J938156

GASKET,0.79mm Thk

Gear Housing

1шт.

5

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

Quad, Timing Pin Housing

1шт.

6

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Sealing, Timing Pin

1шт.

7

J938655

GASKET,1.27mm Thk

Access Cover Plate

1шт.

8

86625101

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water Pump To Block

1шт.

9

J284623

GASKET

Tappet Cover

1шт.

10

J938159

GASKET

Rear Cover Retainer, Crankshaft

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

Sealing, Water Inlet Connection

1шт.

12

87549580

GASKET,1.02mm Thk

Oil Cooler Core

1шт.

13

J929792

GASKET,1.2mm Thk

Filter Head

1шт.

14

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug, Oil Pan

1шт.

15

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Oil Fill Tube

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

Flywheel Housing To Block

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting, Fuel Transfer Pump

1шт.

18

J928759

SEALING WASHER

Cover Bolt, Tappet

6шт.

19

86553262

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel Housing Plug

1шт.

20

J929457

O-RING

Plug, Engine Oil Cooler

1шт.

21

J935032

SEAL

Sealing, Fuel Injection Pump Mounting

1шт.

Выбрано товаров: 22
