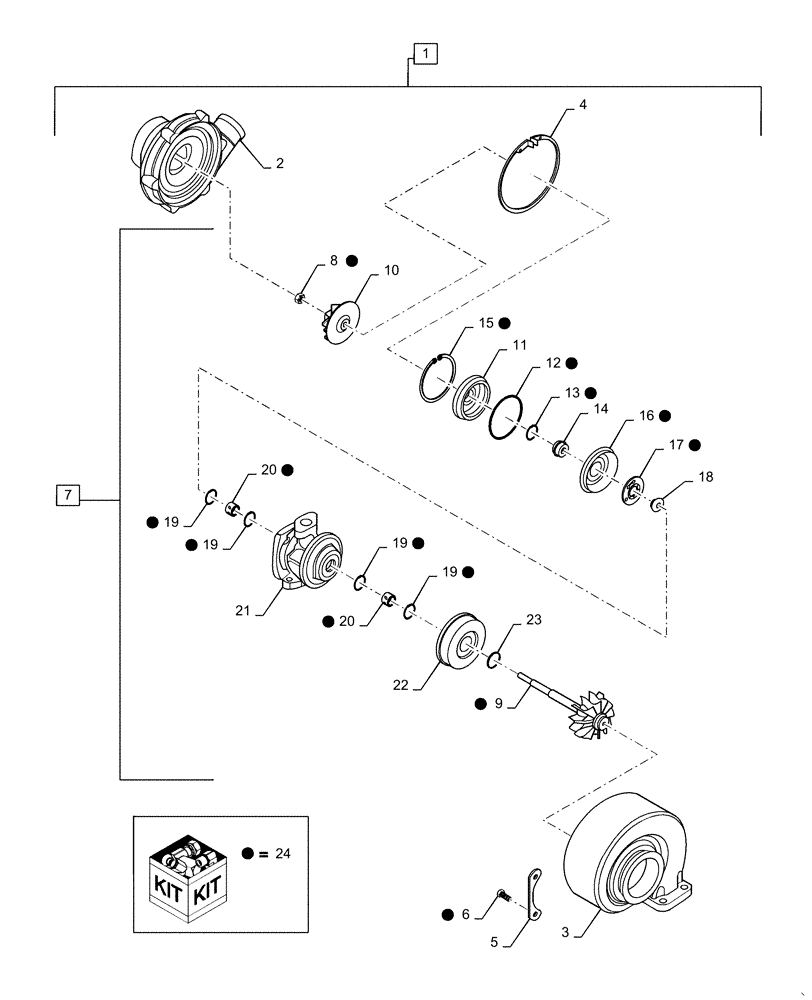

Запчасти Case IH RP165 (10.250.AC) - TURBOCHARGER (10) - ENGINE

1

JR802770

REMAN-TURBOCHARGER

Kit, Remanufactured turbocharger with gasktes and one each of J919369 turbocharger mounting gasketand J937706 turbo oil drain tube gasket, Inl 2 - 23

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number, Use this part number to return turbocharger core for credit when using a remanufactured assembley

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Compressor, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Turbine, Incl in 1

1шт.

4

J533163

SNAP RING

Ring, Retaining

2шт.

5

J501188

PLATE

Clamping, Turbine housing

4шт.

6

J759917

SET SCREW

Hex head, Plate retaining

1шт.

7

NSS

NOT SOLD SEPARAT

Center Housing Assembly, Turbocharger, Incl in 1, Incl 8 - 23

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, Hex lock, Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

Rotor Assembly, Turbocharger, Incl in 7

1шт.

10

NSS

NOT SOLD SEPARAT

Impeller, Turbo compressor, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

Plate, Oil seal, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Diffuser, Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Split ring, Compressor, Incl in 7

1шт.

14

NSS

NOT SOLD SEPARAT

Slinger, Oil, Incl in 7

1шт.

15

NSS

NOT SOLD SEPARAT

Ring Retaining, Incl in 7

1шт.

16

NSS

NOT SOLD SEPARAT

Baffle, Oil, Incl in 7

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing, Thrust, Incl in 7

1шт.

18

NSS

NOT SOLD SEPARAT

Collar, Thrust, Incl in 7

4шт.

19

NSS

NOT SOLD SEPARAT

Ring, Snap, Retaining, Incl in 7

2шт.

20

NSS

NOT SOLD SEPARAT

Bearing, Impeller shaft, Incl in 7

1шт.

21

NSS

NOT SOLD SEPARAT

Housing, Turbine bearing, Incl in 7

1шт.

22

NSS

NOT SOLD SEPARAT

Shield, Heat, Turbine, Incl in 7

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Split ring, Turbine, Incl in 7

1шт.

24

J575169

REPAIR KIT

Overhaul, Turbocharger, Incl 6, 8, 9, 12, 13, 15 - 17, 19, 20

1шт.
