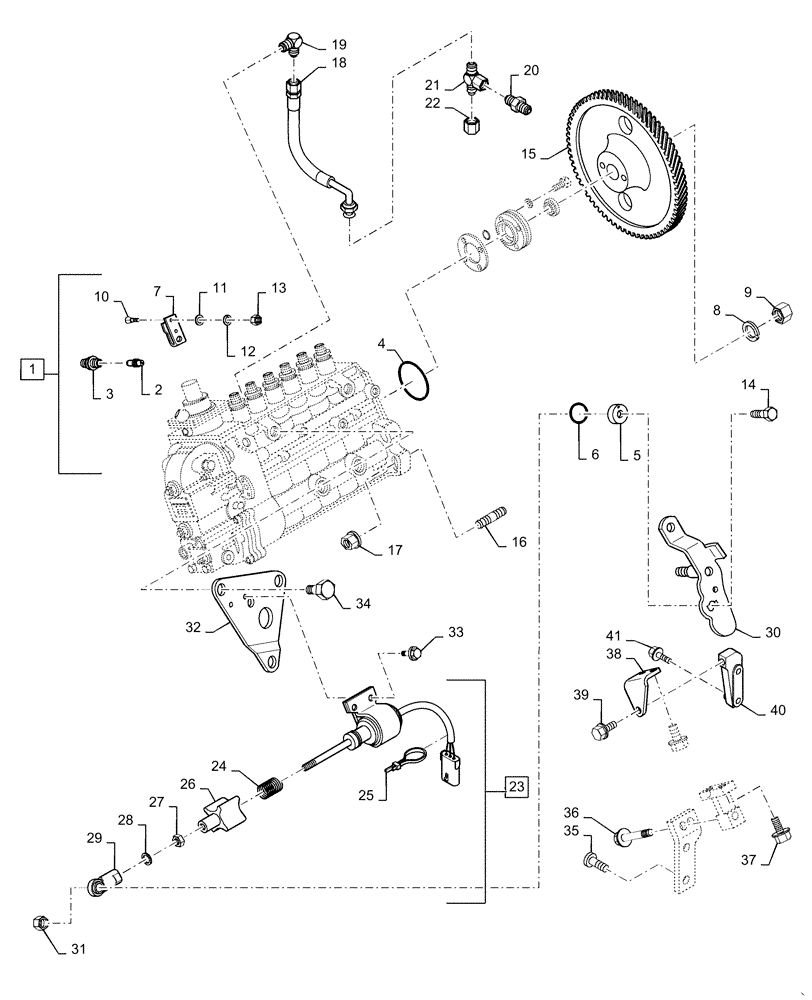

Запчасти Case IH RP165 (10.218.AQ) - FUEL INJECTION PUMP AND DRIVE (10) - ENGINE

1

JR929406

REMAN-INJECTION PUMP

Pump Assembly, Fuel Injection, Remanufactured Assembly, North America Only, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly, Engine RP135, Incl 2 - 14

1шт.

1

JC929406

CORE-INJECTION PUMP

Return Number

1шт.

1

JR928597

REMAN-INJECTION PUMP

Pump Assembly, Fuel Injection, Remanufactured Assembly, North America Only, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly, Engine RP165, Incl 2 - 14

1шт.

1

JC928597

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

Timing

1шт.

3

J912888

PLUG

Timing

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

Sealing

1шт.

5

691292C1

RETAINER

Spring Return

1шт.

6

680187C1

O-RING,2.5mm Thk x 9mm ID

Sealing, Special

1шт.

7

87438537

LEVER

Throttle Control

1шт.

8

A77775

LOCK WASHER

1шт.

9

A41852

LOCK NUT

Self, Locking

1шт.

10

1808822C1

THUMB SCREW,M6 x 26mm

Throttle Lever

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat

1шт.

12

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

13

86625072

NUT,Hex, M6, Cl 10

1шт.

14

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

15

J934636

PINION

Fuel Pump

1шт.

16

86991263

STUD,M10 x 1.5 x 55

Pump Mounting

1шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

18

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

19

A77512

ELBOW

90 Degree

1шт.

20

86017142

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

Prior To Engine Seiral Number 45534441

1шт.

20

J941472

FITTING

Engine Serial Number 45534441 And After

1шт.

21

J924346

TEE

Oil Pressure, Prior To Engine Serial Number 45534441

1шт.

21

J933291

TEE

Engine Serial Number 45534441 And After

1шт.

22

86511869

CAP,7/16" - 20 JIC

1шт.

23

87435487

SOLENOID VALVE

Fuel Shutoff, 12 Volt, Incl 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

Spring, Plunger Return, Incl in 23

1шт.

25

NSS

NOT SOLD SEPARAT

Tie Strap, Incl in 23

1шт.

26

NSS

NOT SOLD SEPARAT

Boot, Plunger Protective, Incl in 23

1шт.

27

NSS

NOT SOLD SEPARAT

Nut, Hex Jam, 1/4 inch, Incl in 23

1шт.

28

NSS

NOT SOLD SEPARAT

Lock Washer, 1/4 inch, Incl in 23

1шт.

29

NSS

NOT SOLD SEPARAT

Ball Joint, Incl in 23

1шт.

30

J802998

PACKAGE,SERVICE

Pump Shutoff

1шт.

31

J930683

LOCK NUT

1шт.

32

J930589

SUPPORT

Solenoid Mounting

1шт.

33

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

34

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

3шт.

35

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

36

86609280

BOLT,Hex Flg, M8 x 45mm, Cl 8.8

1шт.

37

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

38

J863311

BRACE

Fuel Pump

1шт.

39

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

3шт.

40

J863312

BRACE

Fuel Pump

1шт.

41

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

2шт.
