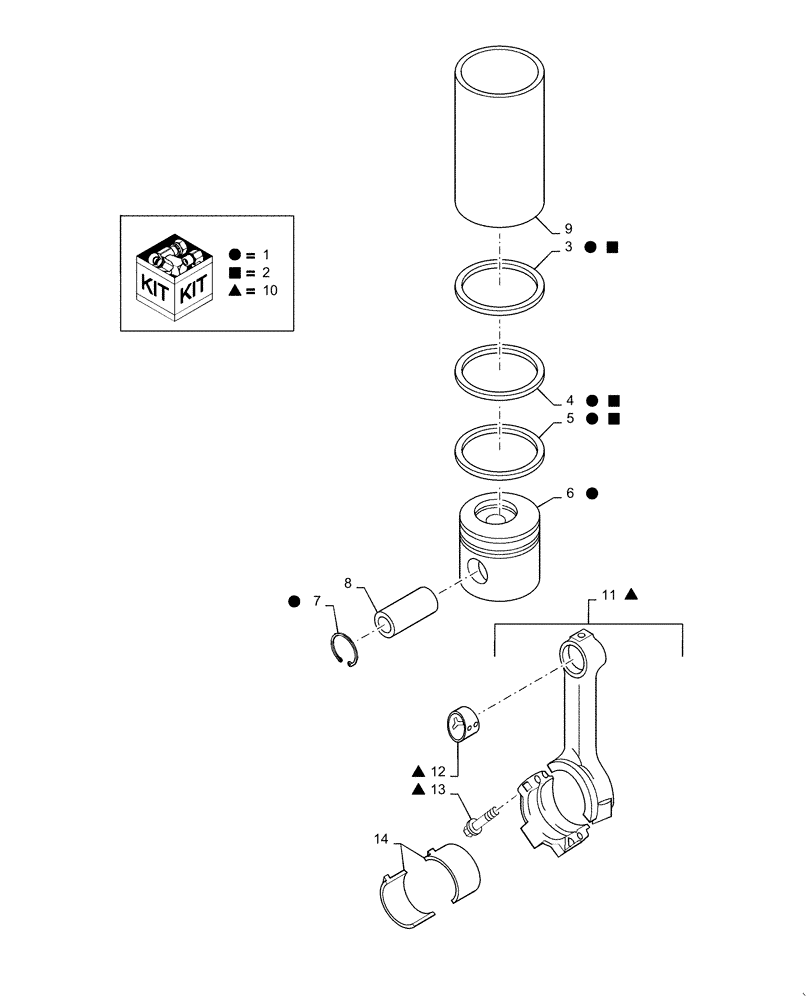

Запчасти Case IH RP165 (10.105.AB) - PISTONS AND CONNECTING RODS (10) - ENGINE

1

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard

4шт.

1

J802764

PISTON & RINGS KIT

0.5 mm Oversized

4шт.

1

J802765

PISTON & RINGS KIT

1.0 mm Oversized

4шт.

2

A77727

PISTON RING SET

Standard

1шт.

2

A77728

PISTON RING SET

0.5 mm Oversized

1шт.

2

A77729

PISTON RING SET

1.0 mm Oversized

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Compression, Top, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Compression, Middle, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Oil, Bottom, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

7

J920691

SPECIAL RING

2шт.

8

J934047

PIN,40mm OD x 82.68mm L

1шт.

9

J904166

SLEEVE

Used Only in Engine Block Repair, When Liner is Installed use J802747 Standard Piston Kit

1шт.

10

84145405R

REMAN-CONNECTING ROD

Remanufactured, North America Only, Component Parts Shown on This Page Do Not Apply to the Remanufactured Assembly

1шт.

10

84145405C

CORE-ROD CONNECTING

Return Number, Use This Part Number to Return Connecting Rod for Credit When Using a Remanufactured Assembly

1шт.

10

84145405

ROD, CONNECTING

New, Incl 11 - 13

4шт.

11

NSS

NOT SOLD SEPARAT

Connecting Rod, Incl in 10

1шт.

12

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

Bushing

1шт.

13

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Bolt

2шт.

14

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Upper and Lower, Standard

4шт.

14

A77466

BEARING SET

Upper and Lower, 0.25 mm Oversize

4шт.

14

A77467

BEARING LINER

Upper and Lower, 0.50 mm Oversize

4шт.

14

A77468

BEARING SET

Upper and Lower, 0.75 mm Oversize

4шт.

14

A77469

BEARING SET

Upper and Lower 1.00 mm Oversize

4шт.
