Запчасти Case IH RP165 (10.103.AK) - FLYWHEEL & HOUSING (10) - ENGINE

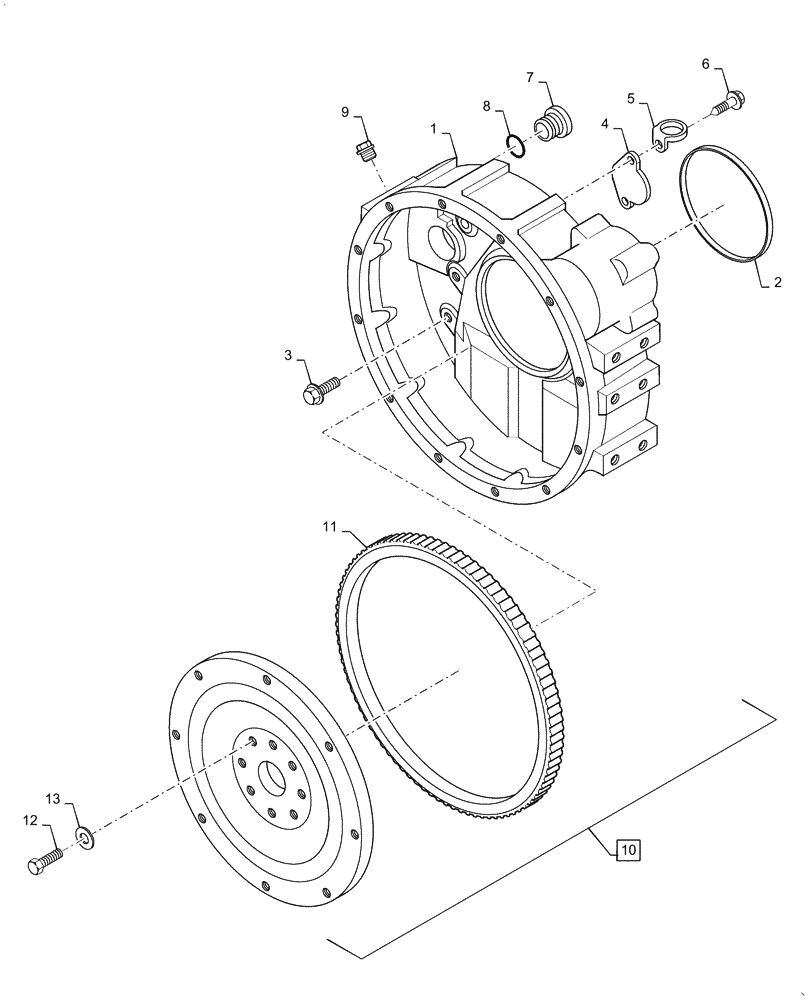

Схема запчастей Case IH RP165 - (10.103.AK) - FLYWHEEL & HOUSING (10) - ENGINE
1
5
4
9
11
12
13
7
6
3
2
10
8

Артикул

Название

Примечание

Количество

1

J937426

HOUSING

Flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

Flywheel Houding

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

Cover

1шт.

5

J928989

CLIP

Breather Hose, Retaining

1шт.

6

J912072

SELF-TAP SCREW

Washer Head, Special

2шт.

7

J910248

PLUG

Flywheel Houding

1шт.

8

86553262

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

86625137

PLUG,Sltd Hd, 3/4"-16

1шт.

10

87455418

FLYWHEEL

Assy, Engine, Incl 11

1шт.

11

J905427

GEAR

Ring, Flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

Special

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

Flat, Special, Flywheel Bolt

8шт.

Выбрано товаров: 13
