Запчасти Case IH RP165 (10.102.AD) - OIL PUMP AND OIL PAN (10) - ENGINE

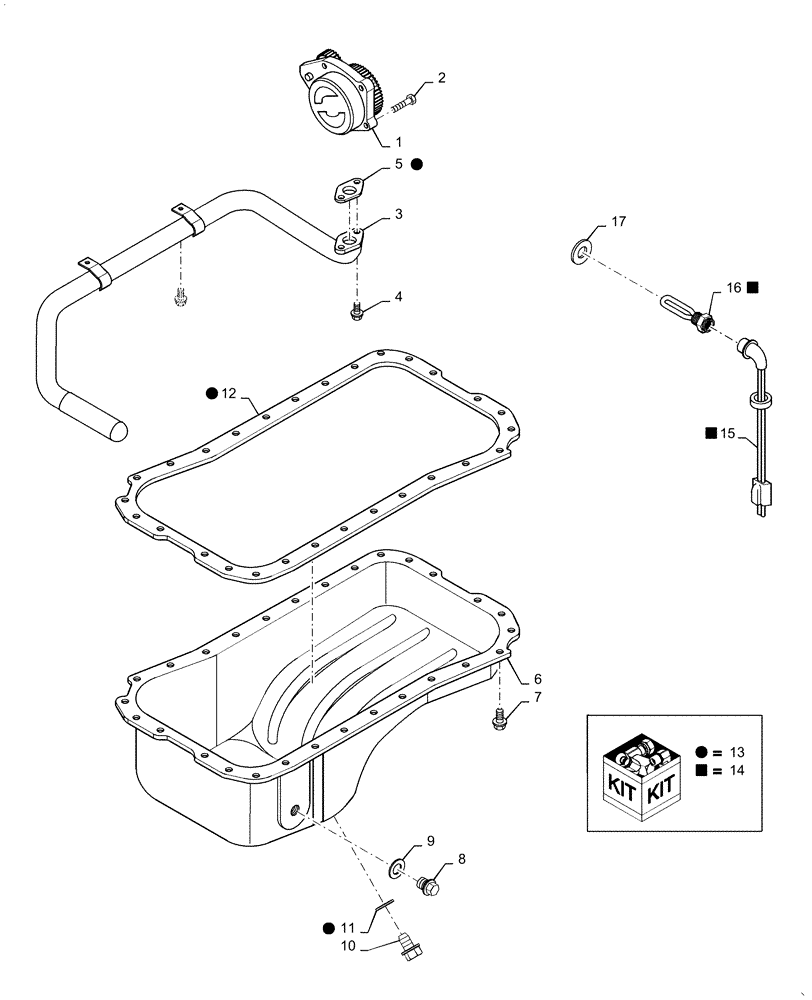

Схема запчастей Case IH RP165 - (10.102.AD) - OIL PUMP AND OIL PAN (10) - ENGINE
13
14
4
11
13
15
1
9
7
13
14
2
14
5
10
13
14
17
6
8
3
13
12
16

Артикул

Название

Примечание

Количество

1

JR930337

REMAN-ENG OIL PUMP

Pump, Oil, Remanufactured, North America only

1шт.

1

JC930337

PUMP

Return Number, Use this Part Number to Return Pump Core for Credit When Using a Remanufactured Assembly

1шт.

2

J900677

BOLT,Hex

Pump to Cylinder Block

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

Oil

1шт.

4

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

3шт.

5

J938157

GASKET,1.2mm Thk

Mounting, Oil Suction Tube

1шт.

6

J915703

PAN, ENGINE OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

Cap, Special

36шт.

8

J924148

PLUG,M22 x 1.5

Hex Magnetic, Special, Heater Hole

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing Plug

1шт.

10

J924147

PLUG,M18 x 1.5

Hex Magnetic, Special, Drain

1шт.

11

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

Drain Plug

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Oil Pan, Incl in 13

1шт.

13

A77979

GASKET KIT

Gasket, Oil Pan, Incl 5, 11, 12

1шт.

14

A77490

KIT

Heater, Engine Oil, Incl 15, 16

1шт.

When A77490 Kit Is Ordered, Item 17, J902425 Washer Must Also Be Ordered

1шт.

15

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater

1шт.

16

NSS

NOT SOLD SEPARAT

Element, Heater, 120 Volt, Incl in 15

1шт.

17

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

Выбрано товаров: 19
