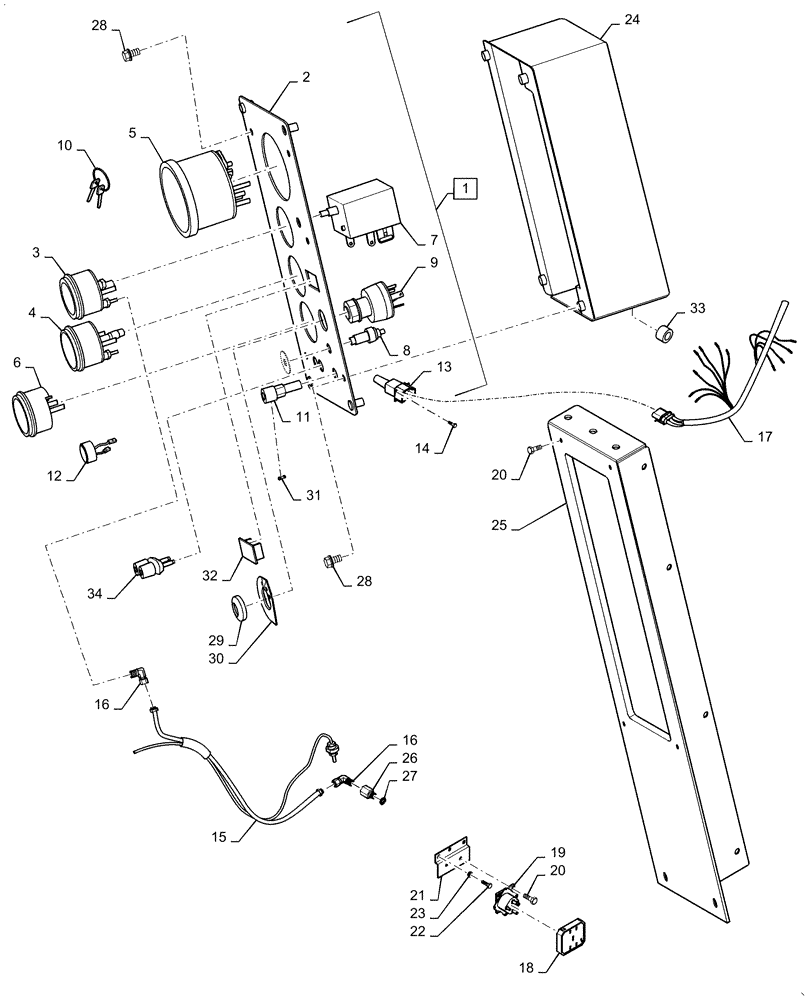

Запчасти Case IH RP135 (90.110.AH) - INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47611970

PANEL

Assy, Incl 2 - 13

1шт.

2

47611971

PANEL

Instrument, Blank

1шт.

3

47613079

GAUGE

Pressure, Engine Oil

1шт.

4

47613089

SHROUD,Shroud, Front

Coolant Temp

1шт.

5

47611983

TACHOMETER

Engine Speed W/ Hour Meter

1шт.

6

47612005

VOLTMETER

Volt Meter

1шт.

7

102787A1

KIT

Switch, Magnetic

1шт.

8

1347699C1

BUTTON

Emergency Stop

1шт.

9

9703814

IGNITION SWITCH

Assy, Incl 10 and 29

1шт.

10

9703810

IGNITION KEY

Engine Start, Set of (2)

1шт.

11

1347753C1

HOLDER

Fuse

1шт.

12

47612022

DIODE

Electrical

1шт.

13

47612023

WIRE HARNESS

Instrument Panel

1шт.

14

86625170

SCREW,Hwh, M10-16, 3/4"

Self Tapping

4шт.

15

283983A1

HOSE,45.00"

Oil Pressure, Engine

1шт.

16

283995A1

UNION

(1) For Hose to Cylinder Block Oil Gallery and (1) For Hose to Engine Operation Guage

2шт.

17

47612032

WIRE HARNESS

Ext Wiring, Engine

1шт.

18

86015610

COVER

Relay

1шт.

19

376208A1

SOLENOID,12V

Starter Switch, Mounted on Bracket

1шт.

20

523292

BOLT,1/4" - 20 x 1.03" OAL

Support to Panel

6шт.

21

47612045

BRACKET

Mounting, Starter Relay, Mounted on RH Side of Block

1шт.

22

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

23

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

24

47612034

COVER

Instrument Panel, Rear

1шт.

25

47612046

SUPPORT

Hood and Instrument Panel, Rear, LH

1шт.

26

250838A2

HYD CONNECTOR

1шт.

27

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

28

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

Panel to Cover

1шт.

29

47513697

NUT

Ignition Switch Mounting

1шт.

30

87656848

DECAL

Ignition Switch

1шт.

31

590420

FUSE

1шт.

32

86539709

PLUG

Rocker Switch

1шт.

33

47613189

MODULE

Plastic

1шт.

34

47613093

POST

Dual Binding

1шт.
