Запчасти Case IH RP135 (90.100.AB[02]) - GRILLE, HOOD AND PANEL, NEW HOLLAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

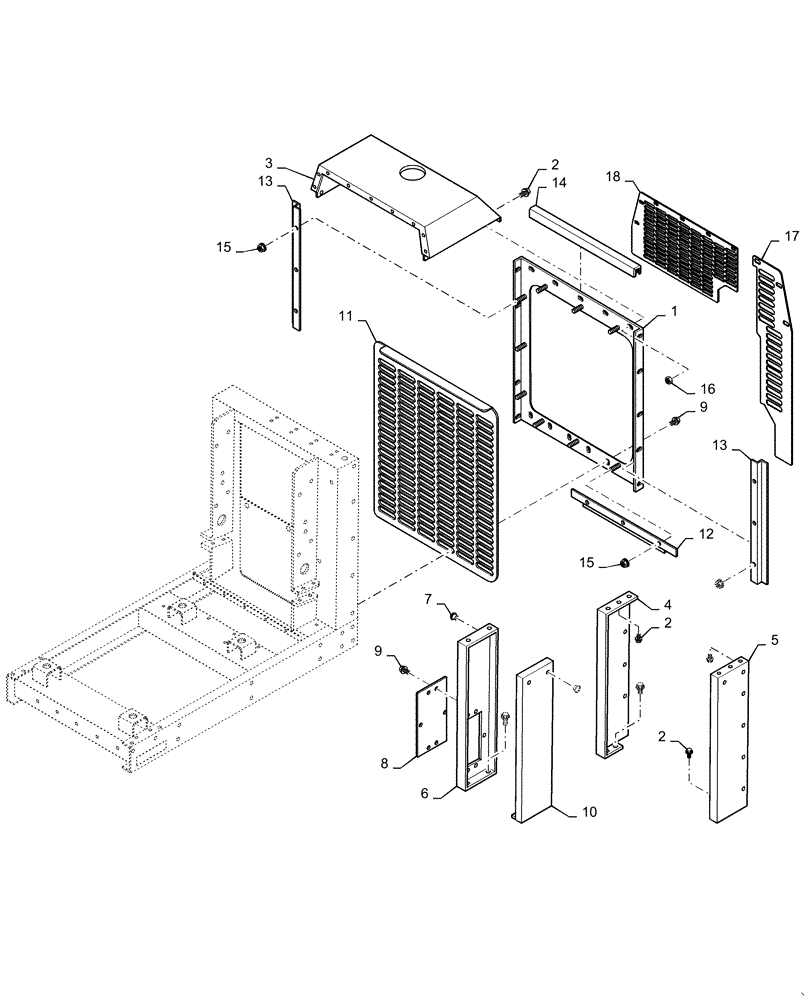

Схема запчастей Case IH RP135 - (90.100.AB[02]) - GRILLE, HOOD AND PANEL, NEW HOLLAND (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
4
14
2
2
3
8
9
18
13
9
2
15
10
1
16
11
17
12
13
5
6
7

Артикул

Название

Примечание

Количество

1

47621489

PANEL

Front

1шт.

2

523292

BOLT,1/4" - 20 x 1.03" OAL

53шт.

3

47621492

HOOD

Front, Upper

1шт.

4

47621497

PANEL

Side, Front, LH

1шт.

5

47621520

PANEL

Side, Front, RH

1шт.

6

47621526

PANEL

Side, LH, Removable

1шт.

7

47613349

KNOB

Plastic Panel

4шт.

8

87462391

PANEL

Access

1шт.

9

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

15шт.

10

47621530

PANEL

Side, RH, Removable

1шт.

11

47613282

GRILLE

Screen

1шт.

12

47613300

BRACKET

Grille Lower

1шт.

13

47613333

BRACKET

Grille Side

2шт.

14

F42827

TRIM,2946.4mm L

Cut to Length, 116 IN

1шт.

15

20332

LOCK NUT,#10-32, GB

9шт.

16

87441708

NUT

21шт.

17

47673452

GUARD

Fan, RH

1шт.

18

47613348

GUARD

Fan, LH

1шт.

19

86625060

PUSH-ON NUT,Self, Threading, 1/4"

Not Shown

4шт.

20

86555967

HEX SOC SCREW,1/4" - 20 x 1 5/8"

Not Shown

4шт.

Выбрано товаров: 20
