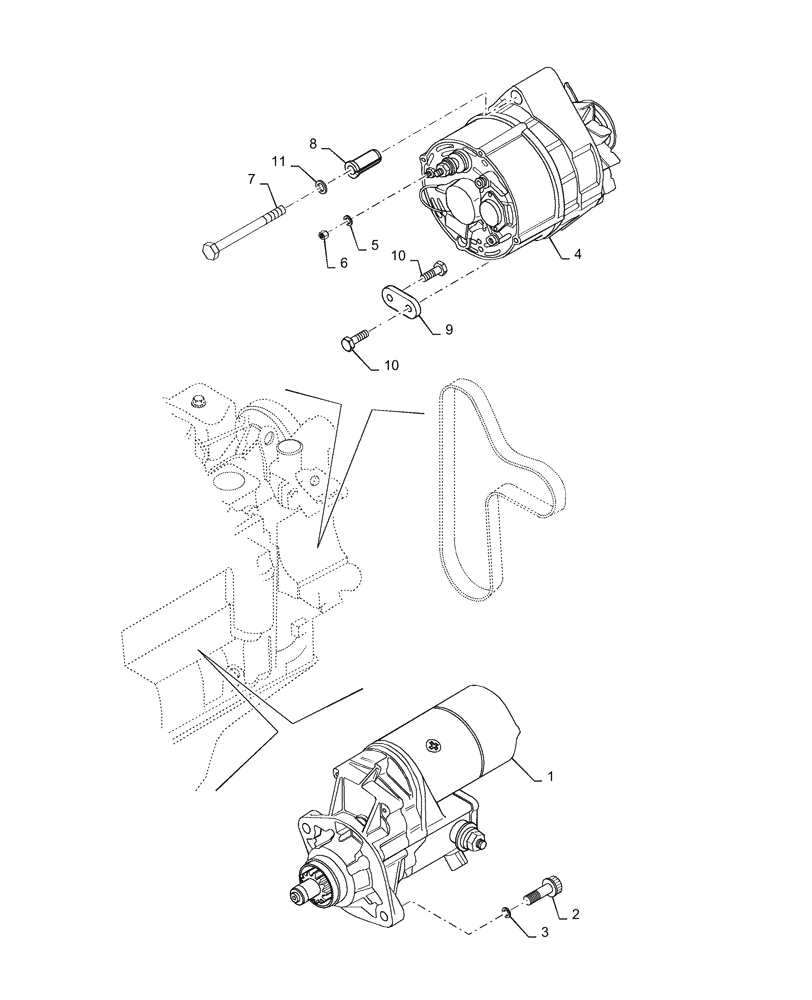

Запчасти Case IH RP135 (55.301.AB) - STARTER AND ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

2

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

4

AR187873

REMAN-ALTERNATOR

Assy, Engine, 65 AMP

1шт.

4

AC187873

CORE-ALTERNATOR

Return Number

1шт.

5

10569179

LOCK WASHER,5.1mm ID x 9.2mm OD x 1.2mm Thk

1шт.

6

86509265

NUT,M5, Cl 10

1шт.

7

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

8

J902469

SPACER

Alternator Mounting

1шт.

9

J903089

SUPPORT

Alternator Mounting

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.
