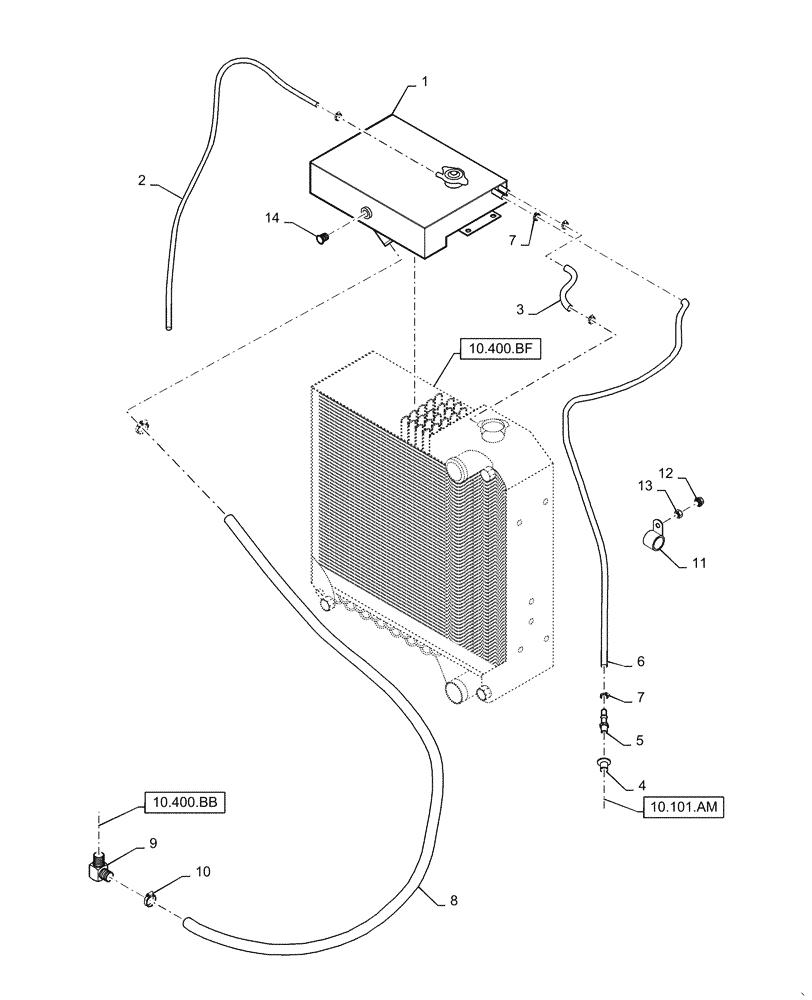

Запчасти Case IH RP135 (10.400.BI) - COOLANT RECOVERY SYSTEM (10) - ENGINE

1

47705958

TANK

Deaeration

1шт.

2

239383A1

HOSE,0.31" ID x 54.50"

Overflow, Cut from L126767 Bulk Hose, 55" Long

1шт.

3

303950A1

RADIATOR HOSE,7.90 mm ID x 76.20 mm, SAE J20R4

Radiator to Deaeration Tank, Formed

1шт.

4

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1шт.

5

241173A1

FITTING

Straight

1шт.

6

277644A1

HOSE

Deaeration Tank to Cylinder Head, Cut from L126767 Bulk Hose, 24" Long

1шт.

7

J923527

CLAMP

Band

5шт.

8

277647A1

HOSE

Deaeration Tank to Water Pump, Cut from 278703A1 Bulk Hose, 40" Long

1шт.

9

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

Installed in Side Hole of Water Pump Inlet

1шт.

10

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

P - Type, Fasten to Right Hand Upper Fan Shroud Mounting Bracket

1шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

1шт.

14

9576801

PLUG,1/4" - 18 NPT

1шт.
