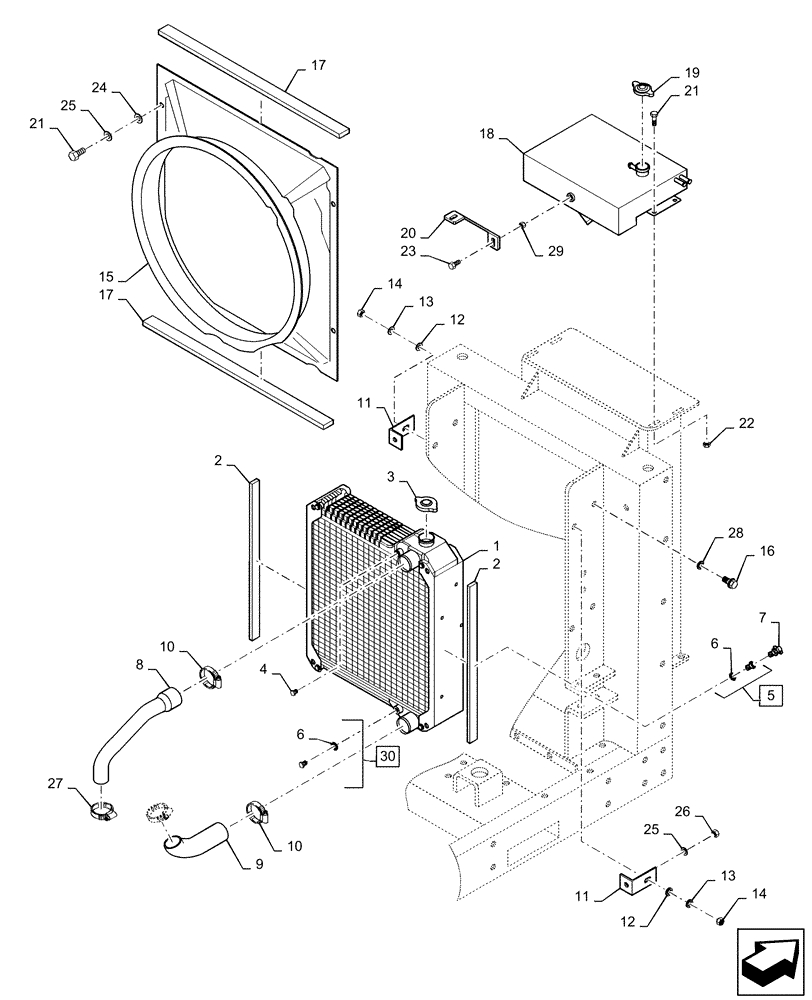

Запчасти Case IH RP135 (10.400.BF) - RADIATOR, DEAERATION TANK AND MOUNTING (10) - ENGINE

1

244295A1

RADIATOR

Assy, Cooling System

1шт.

2

190561A2

SEAL

Adhesive Back

2шт.

3

253858A1

PLUG

Non - Opening

1шт.

4

88071

PLUG

1шт.

5

87742352

FITTING

1/4" MNPT x 1/4" FNPT, Incl 6

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl with 5, 30

1шт.

7

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

8

248373A1

RADIATOR HOSE,43.40 mm ID, 56.20 mm ID x 314.00 mm, SAE J20, SAE 20R4 CLASS D1

Upper

1шт.

9

248374A1

RADIATOR HOSE,56.20 mm ID, 56.40 mm ID x 243.00 mm, SAE J20, SAE 20R4 CLASS D1

Lower

1шт.

10

L115548

CLAMP,57.15mm - 79.38mm

Adjustable

3шт.

11

277896A1

BRACKET

Mounting, Fan Shroud

4шт.

12

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

Hardened

4шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

187089A2

DEFLECTOR

Fan

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

17

190562A2

SEALING STRIP,30mm W x 546mm L x 12.7mm Thk

Adhesive Back

2шт.

18

47705958

TANK

Deaeration

1шт.

19

83957211

RADIATOR CAP

Deaeration Tank

1шт.

20

279618A1

BRACKET

Support, Deaeration Tank

1шт.

21

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

Tank to Tank Support Bracket and Tank Support Brace

8шт.

22

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

23

523292

BOLT,1/4" - 20 x 1.03" OAL

Tank Support Brace to Radiator Support

1шт.

24

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

Hardened

4шт.

25

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

4шт.

27

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Adjustable

1шт.

28

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Lock

2шт.

29

87441708

NUT

1/4" - 20

1шт.

30

214389

PLUG,3/4" - 16 ORB

Incl 6

1шт.
