Запчасти Case IH RP135 (10.400.BB) - WATER PUMP SYSTEM (10) - ENGINE

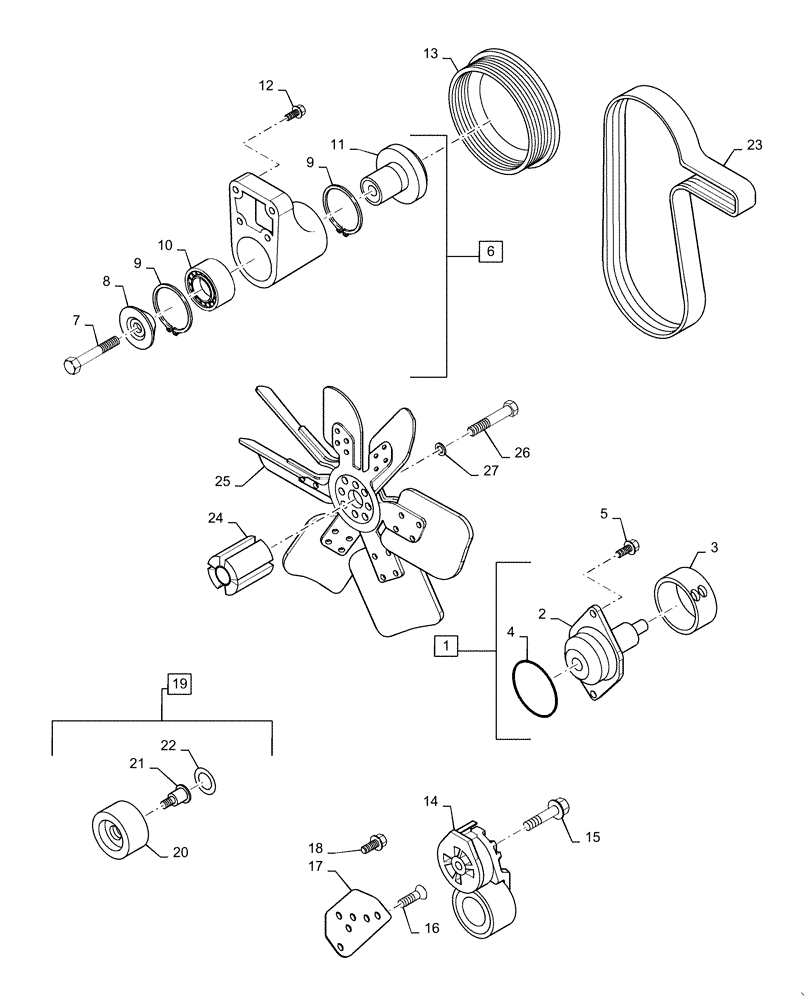

Схема запчастей Case IH RP135 - (10.400.BB) - WATER PUMP SYSTEM (10) - ENGINE
24
6
25
14
27
8
19
1
23
20
17
9
11
9
5
26
16
21
13
18
3
4
15
12
7
10
22
2

Артикул

Название

Примечание

Количество

1

J286278R

REMAN-WATER PUMP

1шт.

1

J286278C

CORE-WATER PUMP

1шт.

1

J286278

WATER PUMP

Incl 2 - 4

1шт.

1

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

2

NSS

NOT SOLD SEPARAT

Pump, Water, Incl in J286278

1шт.

3

NSS

NOT SOLD SEPARAT

Pulley, Water Pump, Incl in J286278

1шт.

4

86625101

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J913433

BRACKET

Fan Pulley, Incl 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

8

J923044

RETAINER

Fan Hub

1шт.

9

34039

SNAP RING,2.50", Int, #250

Internal retaining

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

Fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan Bracket to Cylinder Block

4шт.

13

J914462

PULLEY,163mm OD

Fan

1шт.

14

87326910

BELT TENSIONER

1шт.

15

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Belt Tensioner Mounting

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

J925207

SUPPORT

Belt Tensioner

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

19

A77817

KIT

Belt tensioner pulley, Incl 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Pulley, Belt Tensioner, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt, Pulley, Incl in 19

1шт.

22

NSS

NOT SOLD SEPARAT

Seal, Bolt, Incl in 19

1шт.

23

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan

1шт.

24

A189318

SPACER

Fan Mounting

1шт.

25

437611A1

FAN

Engine

1шт.

26

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

27

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

Выбрано товаров: 30
