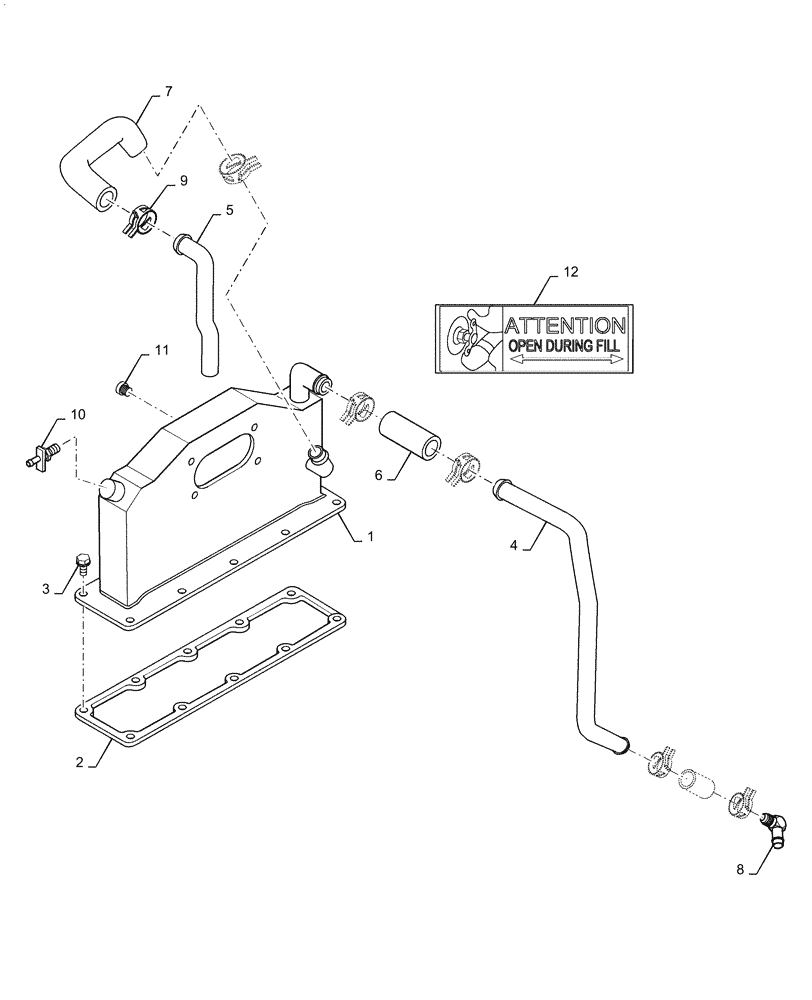

Запчасти Case IH RP135 (10.310.AA) - AFTERCOOLER, RP165 (10) - ENGINE

1

47430051

AFTERCOOLER

Aftercooler

1шт.

2

J938152

MANIFOLD GASKET

Mounting, Aftercooler

1шт.

3

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

Special

16шт.

4

84154314

TUBE

Aftercooler Return

1шт.

5

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

Aftercooler Drain

1шт.

6

J918611

HOSE,18.50 mm ID x 63.00 mm

Tube To Aftercooler

2шт.

7

J928492

TUBE

Elbow, Return, Aftercooler to Tube

1шт.

8

J282444

COUPLING

Block To Hose

1шт.

9

J937613

HOSE CLAMP

Spring Type, Aftercooler Hoses to Tubes

6шт.

10

J909394

COCK, DRAIN

Air Bleed

1шт.

11

J906619

PLUG,1/8" - 27

Installed in Aftercooler Drain

1шт.

12

J910778

DECAL

Caution, Open During Fill, Not Shown

1шт.
