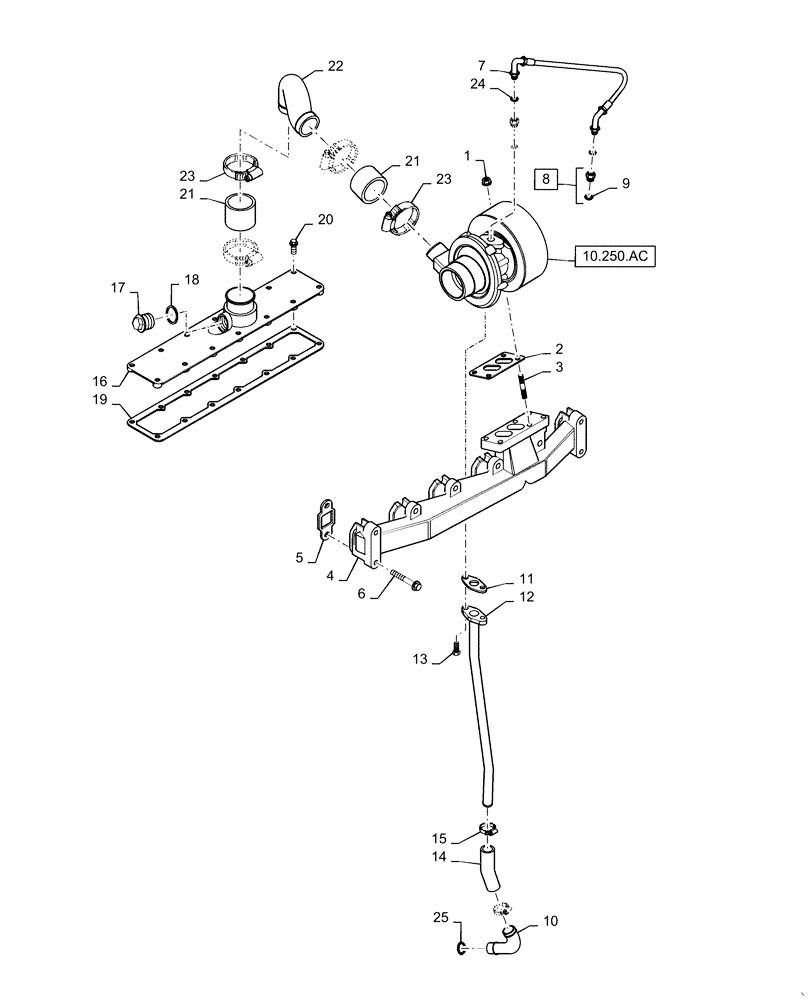

Запчасти Case IH RP135 (10.250.AE[01]) - TURBOCHARGER SYSTEM AND MANIFOLDS, RP135 (10) - ENGINE

1

4899086

FLANGE NUT,Hex, M10 x 1.5

Special

4шт.

2

J901356

GASKET,0.5mm Thk

Turbocharger to Manifold

1шт.

3

J818823

STUD

Turbocharger Mounting

4шт.

4

J931747

MANIFOLD

Exhaust

1шт.

5

J927154

GASKET,0.38mm Thk

Exhaust Manifold

6шт.

6

4896933

SCREW,Hex Flg, M10 x 1.5 x 65

12шт.

7

J918562

HOSE

Turbocharger

1шт.

8

J919687

HYD CONNECTOR

Female Hex, Special, Incl 9

2шт.

9

14453080

O-RING,0.426" ID x 0.07"

Outer

1шт.

10

J931973

TUBE,0.875" OD

Turbocharger Oil Drain, Lower, Req 25 Qty 1

1шт.

11

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

12

J934093

TUBE

Turbocharger Oil Drain, Upper

1шт.

13

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

14

J286499

HOSE

Turbocharger Oil Drain Tube to Block Tube

1шт.

15

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

16

J904862

COVER

Intake Manifold

1шт.

17

J907185

PLUG

Manifold

1шт.

18

J906773

WASHER

Plug Sealing

1шт.

19

J938152

MANIFOLD GASKET

Mounting, Intake Manifold Cover

1шт.

20

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

16шт.

21

87439339

HOSE,62.50 mm ID x 90.00 mm

Crossover Tube

2шт.

22

J931453

TUBE,63.5 mm OD x 254.77 mm L

Air Intake, Crossover

1шт.

23

138773A1

CLAMP,52.32mm - 76.2mm

4шт.

24

86637735

SEAL,9.53mm ID x 13.97mm OD

Flare, Copper, 3/8" OD Tube

2шт.

25

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
