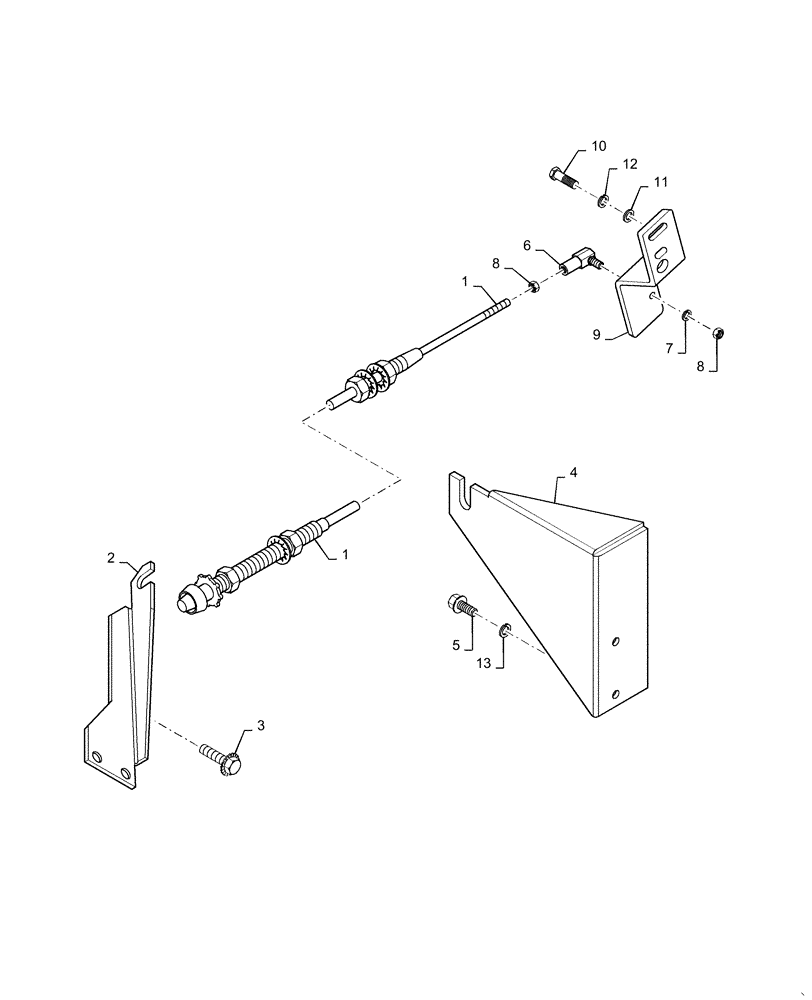

Запчасти Case IH RP135 (10.220.AA) - THROTTLE CONTROL (10) - ENGINE

1

248832A1

CABLE

Control, Throttle

1шт.

2

47689141

BRACKET

Mounting, Thrttle Cable

1шт.

3

523292

BOLT,1/4" - 20 x 1.03" OAL

4шт.

4

239295A1

BRACKET

Mounting, Throttle Cable, At Engine

1шт.

5

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

6

310484C91

BALL JOINT

Injection Pump End of Cable

1шт.

7

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

8

87825

NUT,#10-32

2шт.

9

1289365C1

SUPPORT

Throttle Cable to Injection Pump

1шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat, Hardened

2шт.

12

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.
