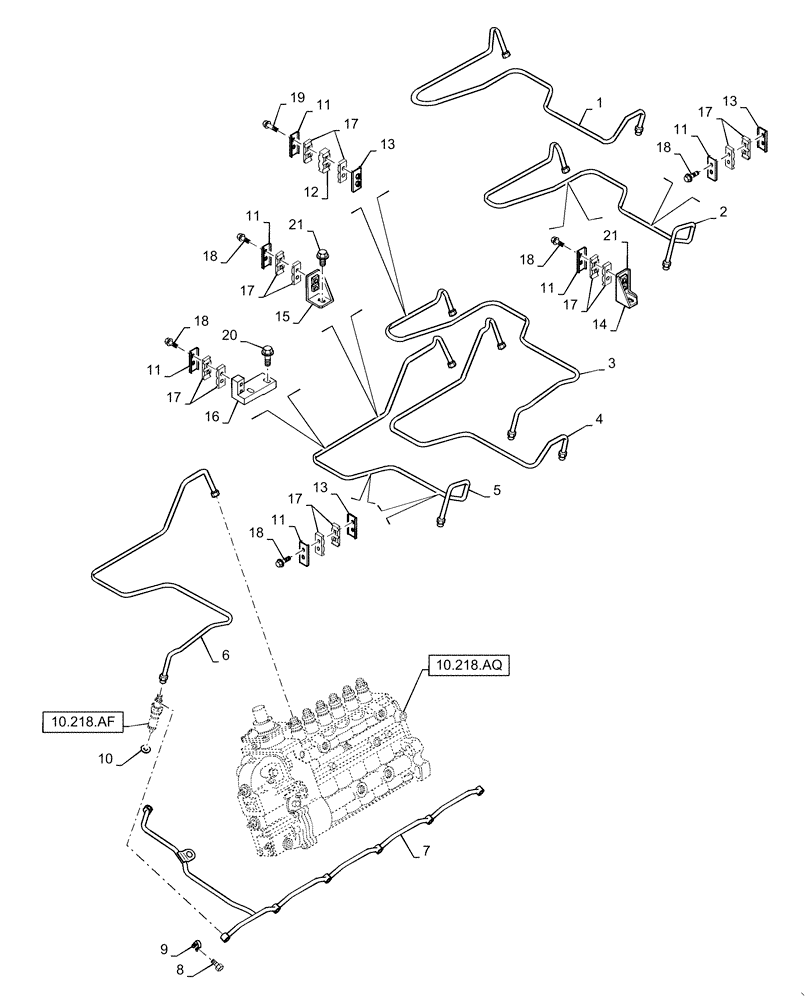

Запчасти Case IH RP135 (10.218.AE[02]) - FUEL INJECTION SYSTEM, RP165 (10) - ENGINE

1

J932102

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

2

J932103

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

3

J932104

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

4

J932105

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

5

J932106

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

6

J932107

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

1шт.

7

J926103

MANIFOLD

1шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

9

J903380

SEAL

6шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

6шт.

11

J904519

SUPPORT

7шт.

12

J917748

CLAMP

1шт.

13

J917716

BRACE

3шт.

14

J282942

BRACKET

3шт.

15

J932417

BRACE

1шт.

16

J920159

BRACE

1шт.

17

J917747

CLAMP

14шт.

18

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

6шт.

19

J920855

CAPTIVE WASHER SCREW

2шт.

20

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.
