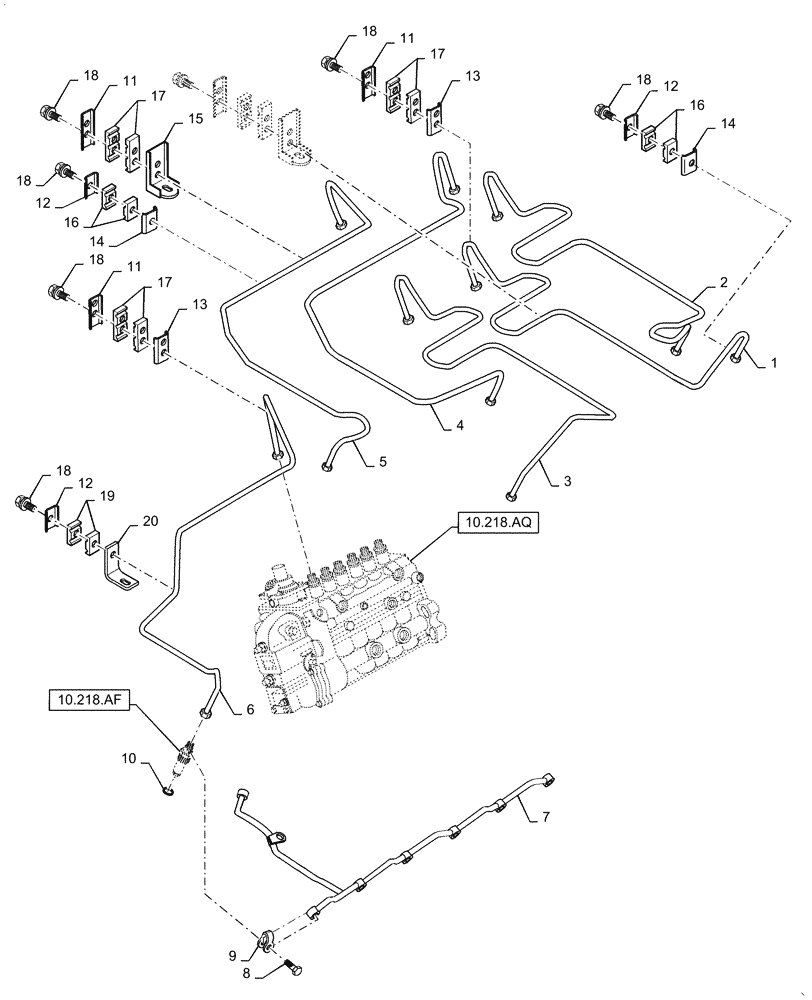

Запчасти Case IH RP135 (10.218.AE[01]) - FUEL INJECTION SYSTEM, RP135 (10) - ENGINE

1

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 1

1шт.

2

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 2

1шт.

3

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 3

1шт.

4

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 4

1шт.

5

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 5

1шт.

6

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Fuel Injector, Cyl 6

1шт.

7

J926103

MANIFOLD

Manifold, Fuel

1шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

9

J903380

SEAL

Connector

6шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injector Nozzle

6шт.

11

J904519

SUPPORT

Tube Retaining

4шт.

12

CASJ904711

SUPPORT

Fuel Tube

4шт.

13

J917716

BRACE

Fuel Tube

2шт.

14

J917717

BRACE

Fuel Tube

3шт.

15

J282942

BRACKET

Fuel Tube

2шт.

16

J917746

CLAMP

Fuel Tube

5шт.

17

J917747

CLAMP

Fuel Tube

8шт.

18

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

14шт.

19

J919359

CLAMP

Vibration

2шт.

20

J940840

BRACE

Fuel Tube

1шт.
