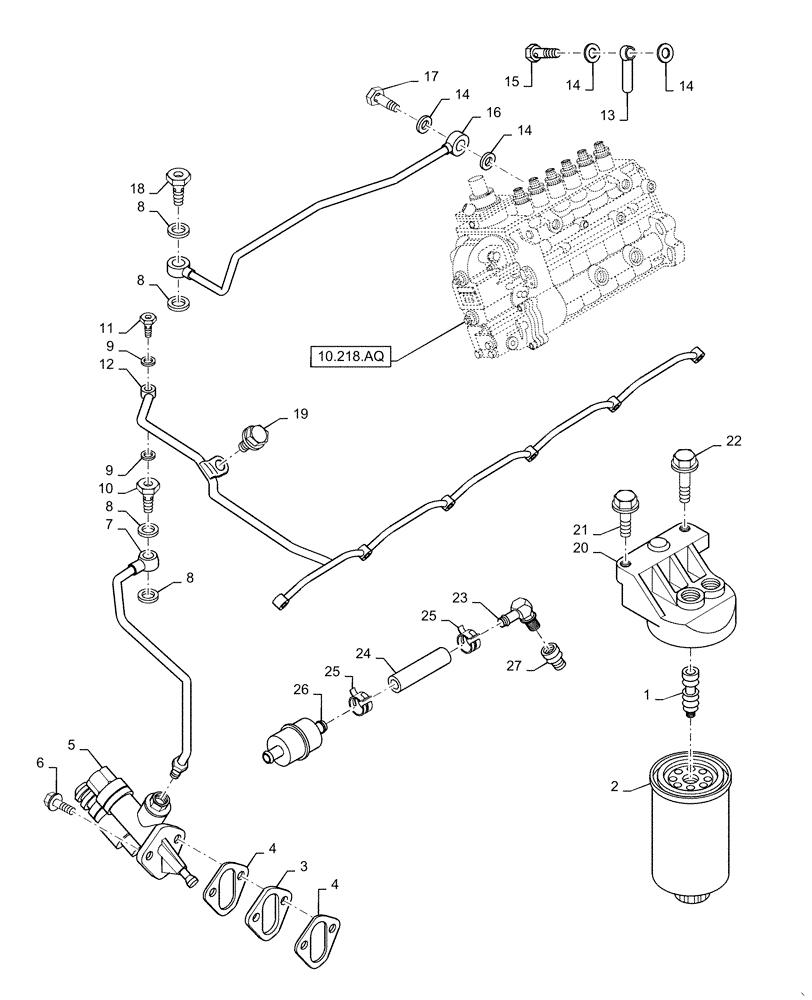

Запчасти Case IH RP135 (10.218.AD[02]) - FUEL FILTER AND LIFT PUMP, RP165 (10) - ENGINE

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

Fuel Filter

1шт.

2

71104220

FUEL FILTER

Fuel

1шт.

3

J914284

SPACER

Fuel Transfer Pump Mounting

1шт.

4

J939258

GASKET,1.21mm Thk

Mounting, Fuel Transfer Pump

2шт.

5

87473339

FUEL PUMP

Transfer

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J926772

FUEL TUBE,8 mm OD x 315.5 mm L

Supply, Fuel Pump To Fuel Filter

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Special

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

Sealing

2шт.

10

J916361

BANJO BOLT

Connector

1шт.

11

J924726

BANJO BOLT

Check

1шт.

12

J926103

MANIFOLD

Manifold

1шт.

13

J911447

CONNECTOR, ELEC

Fuel Return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Sealing, Special

4шт.

15

87409051

VALVE

Overflow

1шт.

16

J286418

FUEL TUBE,311, 68.4 mm L

Supply

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

Connector

1шт.

18

J903035

BANJO BOLT

1шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

20

J933752

HEAD

Fuel Filter

1шт.

21

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

1шт.

22

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

1шт.

23

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

24

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

Order Bulk Hose 364357C2 (3 5/34" Long)

1шт.

25

1348264C1

HOSE CLAMP

Adjustable

2шт.

26

D139225

FILTER, FUEL

In-line

1шт.

27

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.
