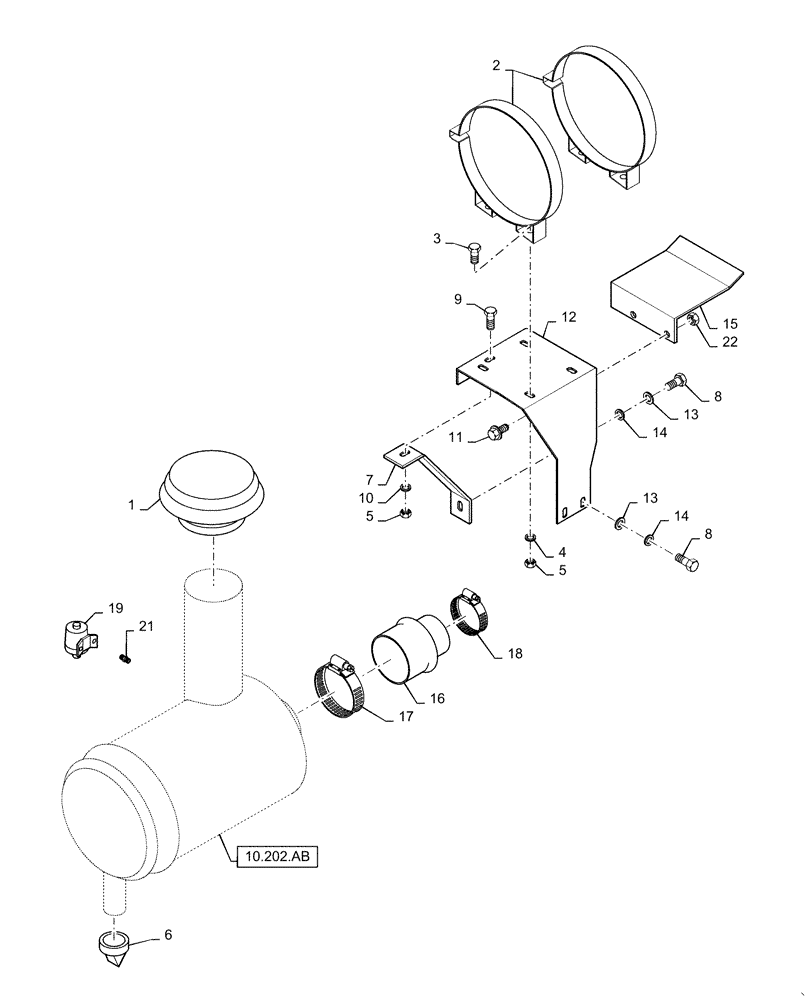

Запчасти Case IH RP135 (10.202.BD) - AIR INDUCTION SYSTEM (10) - ENGINE

1

54-305

CAP

Air Cleaner

1шт.

2

S238773

CLAMP

Air Cleaner Mounting

2шт.

3

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

6

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Dust

1шт.

7

277898A1

BRACE

Air Cleaner Support

1шт.

8

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

Air Cleaner Support Bracket to Cylinder Head

3шт.

9

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

Air Cleaner Support Bracket to Air Cleaner Mounting Bracket

1шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

11

523292

BOLT,1/4" - 20 x 1.03" OAL

2шт.

12

277901A1

BRACKET

Mounting, Air Cleaner to Flywheel Housing

1шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat, Hardened

3шт.

14

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

3шт.

15

277892A1

SHIELD

Heat, Air Cleaner

1шт.

16

L124758

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID x 152.40 mm

Reducer, Air Cleaner

1шт.

17

9706924

HOSE CLAMP,103.1mm - 127mm

Air Cleaner End of Reducer Hose

1шт.

18

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Turbo End of Reducer Hose

1шт.

19

A59569

INDICATOR

Air Restriction

1шт.

20

84492992

HOSE CLAMP,5.12" - 6"

Worm, #88, “Not Illustrated”

1шт.

21

D36264

FITTING

Indicator

1шт.

22

87441708

NUT

1/4" - 20

2шт.
