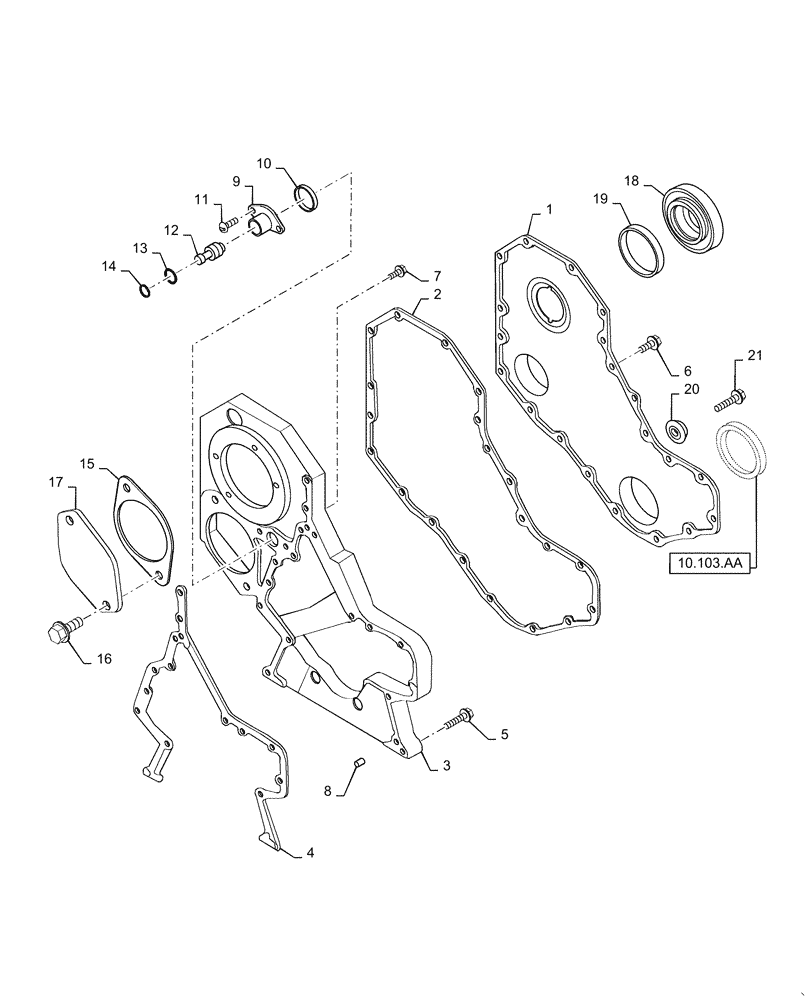

Запчасти Case IH RP135 (10.102.BB) - FRONT GEAR COVER (10) - ENGINE

1

J935583

COVER

Front Gear

1шт.

2

J918673

GASKET,1.02mm Thk

Front Cover

1шт.

Use sealant silicone ZPX18572 in Place of J918673 if Desired

1шт.

3

84538616

COVER

Timing Gear

1шт.

4

J938156

GASKET,0.79mm Thk

Gear Housing

1шт.

5

J926863

FLANGE BOLT

Qty 8 for Front Gear Cover to Timing Gear Housing to Engine Block, Qty 2 for Timing Gear Housing to Engine Block

10шт.

6

J924962

FLANGE BOLT

Front Gear Cover to Timing Gear Housing

8шт.

7

J924962

FLANGE BOLT

Timing Gear Housing to Engine Block

5шт.

8

J900257

PIN,10.01mm OD x 16mm L

Dowel

2шт.

9

J919683

HOUSING

Timing Pin

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

Quad, Timing Pin Housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

Head Cap

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

Timing

1шт.

13

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Sealing

1шт.

14

100-2587

SNAP RING,0.875", Int, #87

Retaining, Timing Pin

1шт.

15

J938655

GASKET,1.27mm Thk

Access Cover Plate

1шт.

16

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

Hvy, Flange

2шт.

17

J914868

COVER

Access Cover, Flat

1шт.

18

J903463

PLUG,M63 x 5

Front Access, Fuel Pump Drive Gear

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover, Fuel Pump Drive Gear

1шт.

20

J912772

RETAINER

Bolt

1шт.

21

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

Hvy

1шт.
