Запчасти Case IH RP135 (10.101.AA) - CYLINDER HEAD GASKET (10) - ENGINE

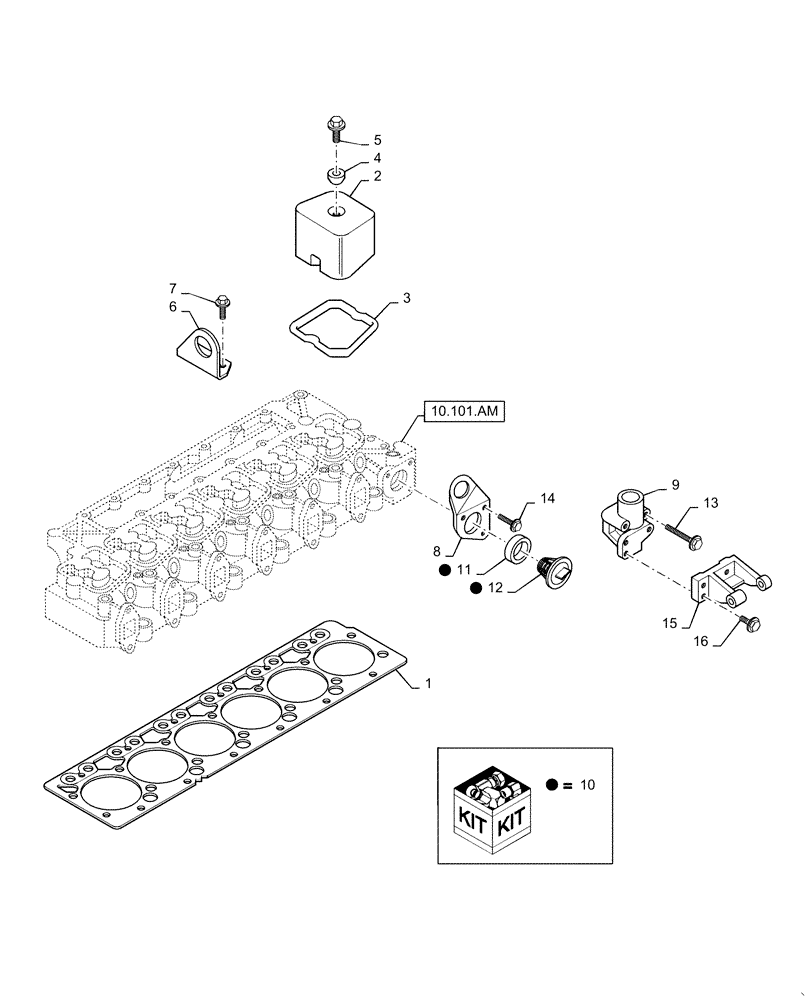

Схема запчастей Case IH RP135 - (10.101.AA) - CYLINDER HEAD GASKET (10) - ENGINE
4
2
5
14
10
6
10
10
1
7
15
8
10
16
11
13
9
12
10.101.am
3

Артикул

Название

Примечание

Количество

1

J283335

GASKET,2.32mm Thk

Head, Standard

1шт.

1

J283337

GASKET,2.24mm Thk

Head, 1 Notch, 0.25mm Overthick

1шт.

1

J283339

GASKET

Head, 2 Notches, 0.50mm Overthick

1шт.

2

J928404

COVER

Rocker Arm

6шт.

3

2852033

GASKET,7mm Thk

Rocker Arm Cover

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise

6шт.

5

J907049

BOLT,Hex

6шт.

6

J908118

BRACKET

Lifting, Rear

1шт.

7

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

8

J903757

BRACKET

Lifting, Front

1шт.

9

J285102

HOUSING

Thermostat

1шт.

10

47616858

KIT

Coolant Thermostat, Incl 11 - 12

1шт.

11

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Thermostat Housing

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat, Coolant, Incl in 10

1шт.

13

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

86624966

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Alternator Mounting

1шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

Выбрано товаров: 18
