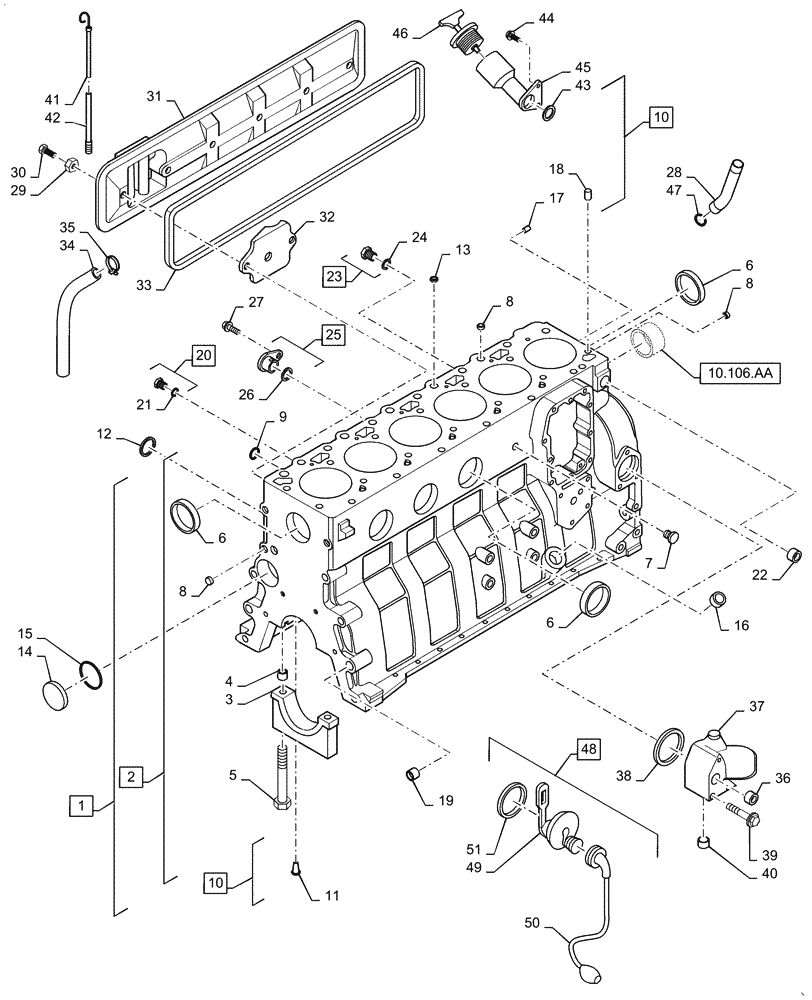

Запчасти Case IH RP135 (10.100.AD[02]) - CYLINDER BLOCK, SN 4553441 AND AFTER (10) - ENGINE

1

243948A2R

REMAN-BASIC ENGINE

1шт.

1

243948A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR933645

REMAN-SHORT ENGINE

1шт.

1

JC933645

CORE-ENGINE

Return Part Number

1шт.

2

84282784

ENGINE OVERHAUL KIT

Assy, Stripped Engine, Incl 3 - 9

1шт.

Also Order 84301646 Engine Overhaul Kit

1шт.

3

87579994

BEARING ASSY

Main Bearing

7шт.

4

J900068

BEARING WASHER

Dowel

14шт.

5

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main Bearing Cap, Special

14шт.

6

75312133

PLUG

Expansion

6шт.

7

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

Socket

1шт.

8

J900956

PLUG

Expansion

3шт.

9

86625124

PLUG,Cup, 1", Stainless

Cup

4шт.

10

84301646

ENGINE OVERHAUL KIT

Block Hardware, Incl 11 - 26

1шт.

11

J937214

NOZZLE CAP

Piston Cooling

6шт.

12

J900958

PLUG

Expansion

1шт.

13

J900955

PLUG

Expansion

2шт.

14

41-3038

PLUG,Exp, 2 3/8"

Expansion

1шт.

15

J926047

O-RING,0.07" Thk x 2.239" ID

Sealing

1шт.

16

J920706

PLUG

Expansion

1шт.

17

J900257

PIN,10.01mm OD x 16mm L

Dowel

2шт.

18

J902343

DOWEL

Dowel

2шт.

19

J900068

BEARING WASHER

Dowel

2шт.

20

J678923

PLUG,M10 x 1

Socket, Incl 21

3шт.

21

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

22

86625118

DRAIN PLUG,1/2" - 14 NPT

Square Socket Headless

1шт.

23

J678921

PLUG

Socket, Incl 24

1шт.

24

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing

1шт.

25

J932296

PLUG

Timing Sensor Hole, Incl 26

1шт.

26

J330478

O-RING,0.07" Thk x 0.676" ID

Sealing

1шт.

27

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

28

J931973

TUBE,0.875" OD

Turbocharger Oil Drain, Req 47 Qty 1

1шт.

29

J928759

SEALING WASHER

Cover Bolt

4шт.

30

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

31

J990730

COVER

Tappet

1шт.

32

J907586

BAFFLE

Tappet Cover

1шт.

Use With ZPX18572 Sealant

1шт.

33

J284623

GASKET

Tappet Cover

1шт.

34

J918614

TUBE,435.00 mm

1шт.

35

J904230

CLAMP,25.4mm

Spring, Hose

1шт.

36

217-1031

REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT

Socket

1шт.

37

J934879

INLET MANIFOLD

Water

1шт.

38

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

39

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

Flange, Hvy

3шт.

40

87034671

PLUG,Hex Soc, 1/2"-14

Socket

1шт.

41

J907714

DIPSTICK

Engine Oil

1шт.

42

J905127

TUBE,9.52 mm OD x 180 mm L

Dipstick

1шт.

43

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

44

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

Hvy

2шт.

45

J911696

TUBE,38.1 - 52.39 mm OD x 102.9, 56.5 mm L

Oil Fill

1шт.

46

47606501

FILLER CAP

Oil Fill Tube

1шт.

47

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

48

196803A1

KIT

Engine Block Heater, Incl 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

Element, Engine Block Heater, Incl in 48

1шт.

50

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater

1шт.

51

J910517

O-RING

Heater Sealing

1шт.
