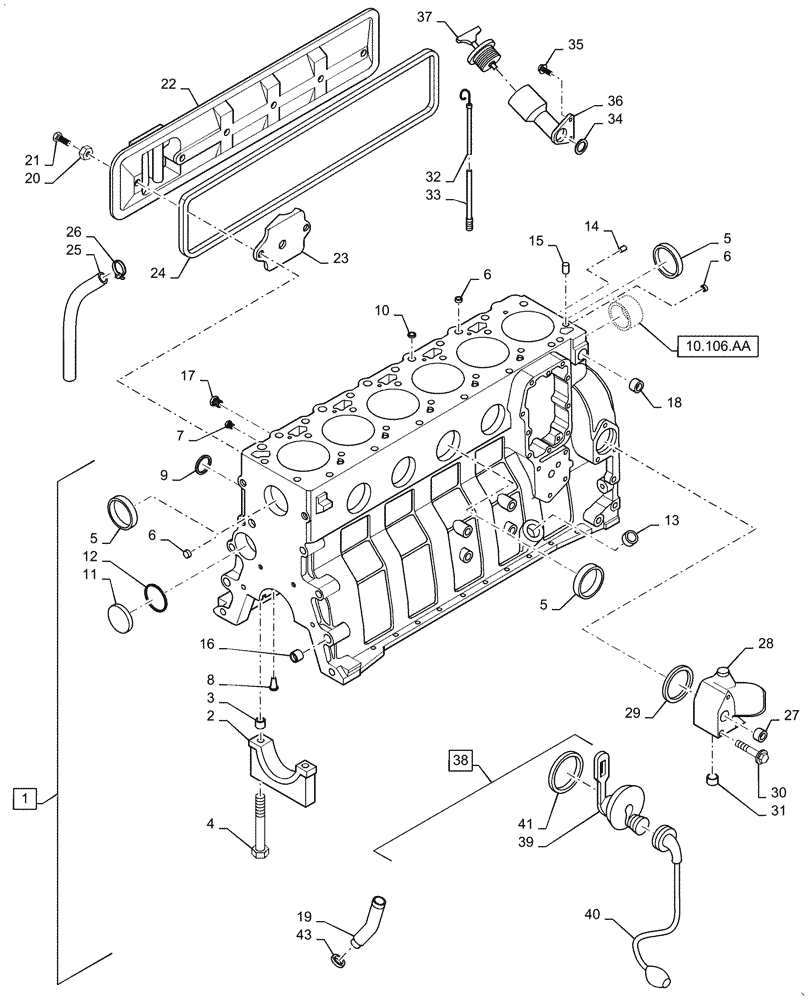

Запчасти Case IH RP135 (10.100.AD[01]) - CYLINDER BLOCK, PRIOR TO SN 45534441 (10) - ENGINE

1

243948A2R

REMAN-BASIC ENGINE

1шт.

1

243948A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR933645

REMAN-SHORT ENGINE

1шт.

1

JC933645

CORE-ENGINE

Return Part Number

1шт.

2

87579994

BEARING ASSY

Cap, Main Bearing

7шт.

3

J900068

BEARING WASHER

Dowel

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Main Bearing Cap, Special

14шт.

5

75312133

PLUG

Expansion

6шт.

6

J900956

PLUG

Expansion

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Plug, Cup

4шт.

8

J937214

NOZZLE CAP

Piston Cooling

6шт.

9

J900958

PLUG

Expansion

1шт.

10

J900955

PLUG

Expansion

2шт.

11

41-3038

PLUG,Exp, 2 3/8"

Expansion, Welch

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

Sealing

1шт.

13

J920706

PLUG

Expansion

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

Dowel

2шт.

15

J902343

DOWEL

Ring

2шт.

16

J900068

BEARING WASHER

Dowel

2шт.

17

J906619

PLUG,1/8" - 27

Plug

2шт.

18

86625118

DRAIN PLUG,1/2" - 14 NPT

Plug

1шт.

19

J931973

TUBE,0.875" OD

Turbocharger Oil Drain, Req 43 Qty 1

1шт.

20

J928759

SEALING WASHER

Cover Bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J990730

COVER

Tappet

1шт.

23

J907586

BAFFLE

Tappet Cover

1шт.

Use W/ ZPX18572 Sealant

1шт.

24

J284623

GASKET

Tappet Cover

1шт.

25

J918614

TUBE,435.00 mm

1шт.

26

J904230

CLAMP,25.4mm

Spring, Hose

1шт.

27

217-1031

REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT

1шт.

28

J934879

INLET MANIFOLD

Water

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

Sealing

1шт.

30

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

31

87034671

PLUG,Hex Soc, 1/2"-14

1шт.

32

J907714

DIPSTICK

Engine Oil

1шт.

33

J905127

TUBE,9.52 mm OD x 180 mm L

Dipstick

1шт.

34

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

35

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

36

J911696

TUBE,38.1 - 52.39 mm OD x 102.9, 56.5 mm L

Oil Fill

1шт.

37

47606501

FILLER CAP

Oil Fill Tube

1шт.

38

196803A1

KIT

Engine Block Heater, Incl 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

Element, Engine Block Heater, Incl in 38

1шт.

40

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater

1шт.

41

J910517

O-RING

Sealing

1шт.

42

250838A2

HYD CONNECTOR

Not Shown

2шт.

43

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.
