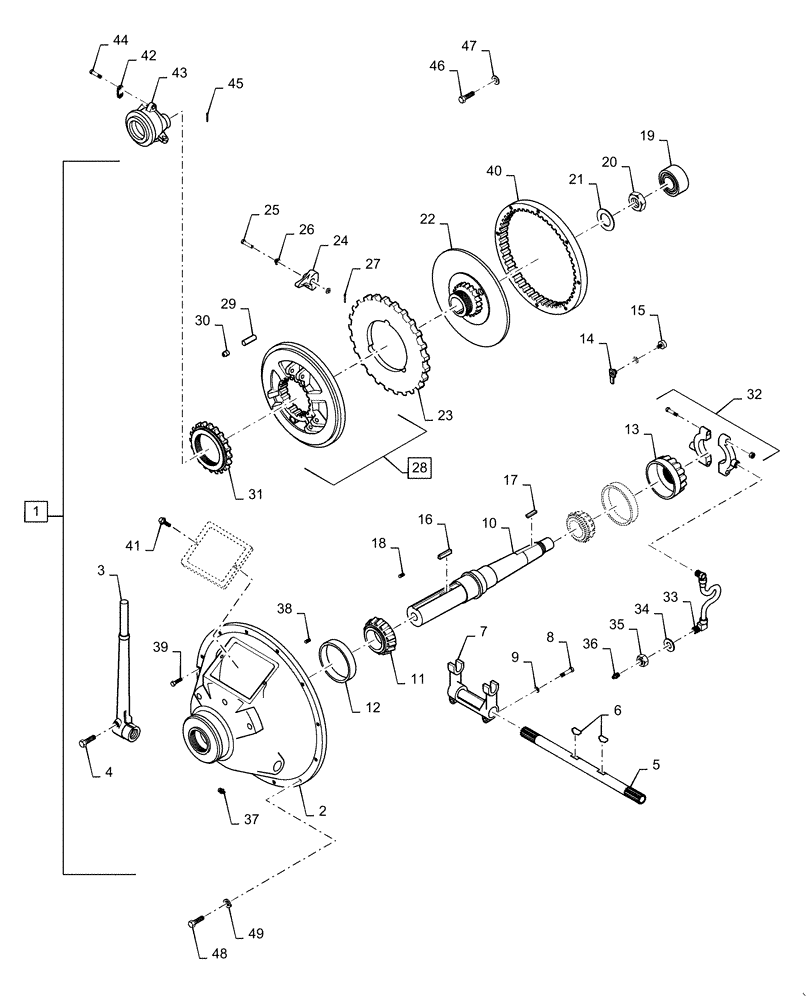

Запчасти Case IH RP110 (31.225.AA) - PTO CLUTCH - RP110 UNITS (31) - IMPLEMENT POWER TAKE OFF

1

1347633C1

CLUTCH ASSEMBLY

PTO, 11 1/2", Incl 2 - 45

1шт.

1

1347633C1R

REMAN-CLUTCH ASSY

PTO, 11 1/2", Incl 2 - 45

1шт.

1

1347633C1C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Clutch Housing, Incl with 1

1шт.

3

1347799C1

LEVER

Hand

1шт.

4

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

5

A44136

SHAFT

Operating Lever

1шт.

6

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

Woodruff

1шт.

7

A10246

YOKE

Throwout

1шт.

8

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

9

193-78

LOCK WASHER,3/8"

Heavy Duty, Internal Tooth Lock

2шт.

10

A43199

SHAFT

Clutch

1шт.

11

86577033

ROLLER BEARING,63.5mm ID x 138.25mm OD x 36.54mm W

Tapered Roller Bearing

2шт.

12

163044

BEARING CUP,110.03mm OD x 18.82mm W

Tapered Roller Bearing

2шт.

13

A43327

RETAINER

Bearing

1шт.

14

1347816C1

BEARING LOCK NUT

Bearing Retainer

1шт.

15

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

16

A40256

KEY

Square, 5/8 X 5/8 X 5-3/8 in

1шт.

17

A40305

KEY

Square, 3/8 X 3/8 X 2-1/2 in

1шт.

18

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

19

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

1шт.

20

A58595

NUT

Hex

1шт.

21

51200854

LOCK WASHER

Tab Lock, Hub Nut

1шт.

22

A10453

PLATE

Hub

1шт.

23

9820504

CLUTCH, PRESSURE PLA

Driving

1шт.

24

138609

LEVER

Floating Plate

3шт.

25

138610

CLEVIS PIN,9.5mm OD x 60.2mm L

Pivot, Lever

3шт.

26

138611

SPRING WASHER

Pivot, Pin

6шт.

27

A43383

SPLIT PIN

Cotter, Special

3шт.

28

A44723

PLATE

Floating Plate, Incl 29 - 30

1шт.

29

258874

SPRING

Adjustable Lock Pin

1шт.

30

1347803C1

PIN

Lock, Adjusting Ring

1шт.

31

138963

RING

PTO Adjusting

1шт.

32

A40245

COLLAR

Assy, Sleeve

1шт.

33

1347801C1

HOSE

Flexible, 311 mm (12-1/4 in) Long

1шт.

34

193-84

LOCK WASHER,5/8"

Heavy Duty, Internal Tooth Lock

1шт.

35

408

NUT,5/8" - 18, Gr 5

Hex

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

Grease

2шт.

37

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Grease, Straight

2шт.

38

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

Set, Oval Point

1шт.

39

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

2шт.

40

51200863

RING

Drive

1шт.

41

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

External Tooth Lock

2шт.

42

A10446

LINK

6шт.

43

V48459

SLEEVE

1шт.

44

A40192

AXLE PIN,8mm OD x 26.16mm L

Headed

6шт.

45

80756

COTTER PIN,1/8" x 3/4"

6шт.

46

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

48

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

49

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Lock

12шт.

50

47704965

HANDLE

Rubber, Not Illustrated

1шт.
