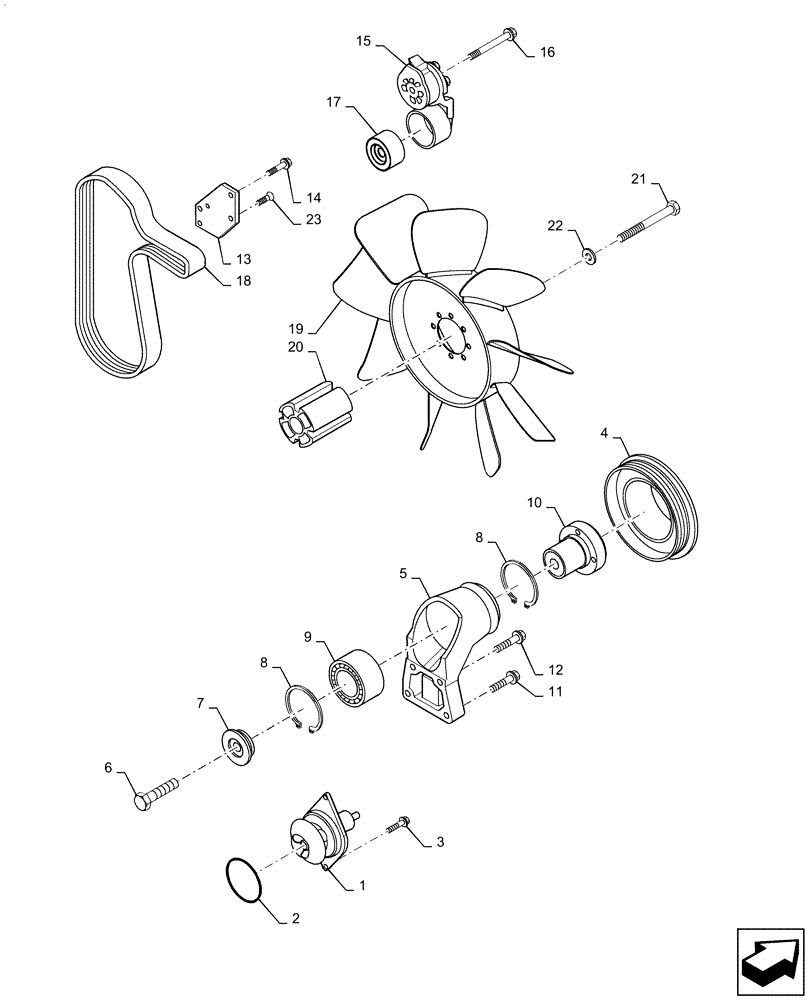

Запчасти Case IH RP110 (10.400.BB) - WATER PUMP & PULLEY (10) - ENGINE

1

J286278R

REMAN-WATER PUMP

Assembly

1шт.

1

J286278C

CORE-WATER PUMP

Assembly

1шт.

2

86625101

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

3

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

4

J914462

PULLEY,163mm OD

1.1 to 1 Ratio

1шт.

4

87739401

PULLEY,207.26mm OD

Fan, 207mm Diameter 0.87 to 1 Ratio

1шт.

5

84585624

SUPPORT

Fan

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

7

J923044

RETAINER

Fan Hub

1шт.

8

34039

SNAP RING,2.50", Int, #250

Internal Retaining

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

Fan

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

12

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

13

J925195

SUPPORT

Belt Tensioner

1шт.

13

J925194

SUPPORT

Belt Tensioner

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

15

87326910

BELT TENSIONER

1шт.

16

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

17

A77817

KIT

Tensioner, Incl Pulley, Bolt and Dust Cover

1шт.

18

87681147

V-BELT,27.92mm W x 1505mm L, 8 Ribs

Fan

1шт.

18

J911573

V-BELT,27.92mm W x 1562.1mm L, 8 Ribs

Fan

1шт.

19

283964A1

FAN

Engine

1шт.

20

A189227

SPACER

Fan Mounting

1шт.

21

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

22

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

23

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.
