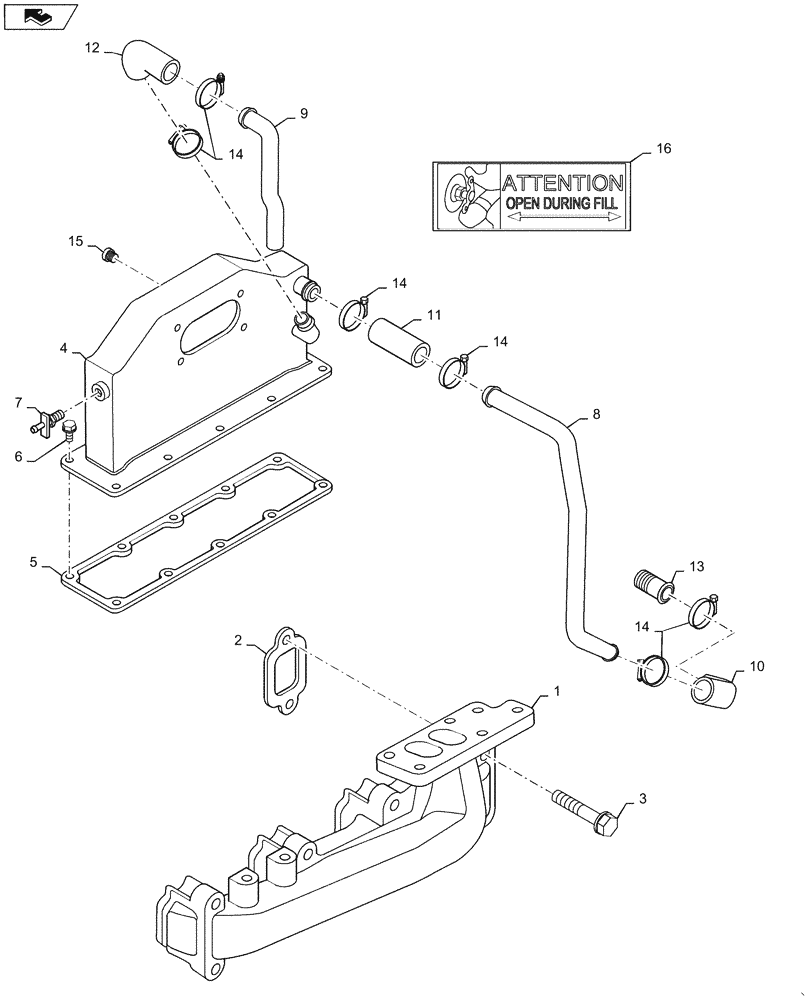

Запчасти Case IH RP110 (10.254.AC[01]) - EXHAUST MANIFOLD (10) - ENGINE

1

J901919

MANIFOLD

Exhaust

1шт.

2

J927154

GASKET,0.38mm Thk

For Exhaust Manifold

4шт.

3

2852744

SCREW,Flng, M10 x 1.5 x 65mm

8шт.

4

84573152

AFTERCOOLER

Air Intake

1шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

For Intake Manifold

1шт.

6

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

Aftercooler to Cylinder Head

10шт.

7

J909394

COCK, DRAIN

1шт.

8

84154314

TUBE

Aftercooler Return

1шт.

9

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

Aftercooler Drain

1шт.

10

J918607

HOSE,43.20 mm

To Supply Tube

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

To Aftercooler

1шт.

12

J918608

HOSE,18.50 mm ID x 69.50 mm

To Drain Tube

1шт.

13

J282444

COUPLING

Block to Hose, to Supply Hose

1шт.

14

J937613

HOSE CLAMP

Spring Type, to Tubes

6шт.

15

J906619

PLUG,1/8" - 27

Hex, 1/8 Inch PT

1шт.

16

J910778

DECAL

Caution, Open During Fill

1шт.
