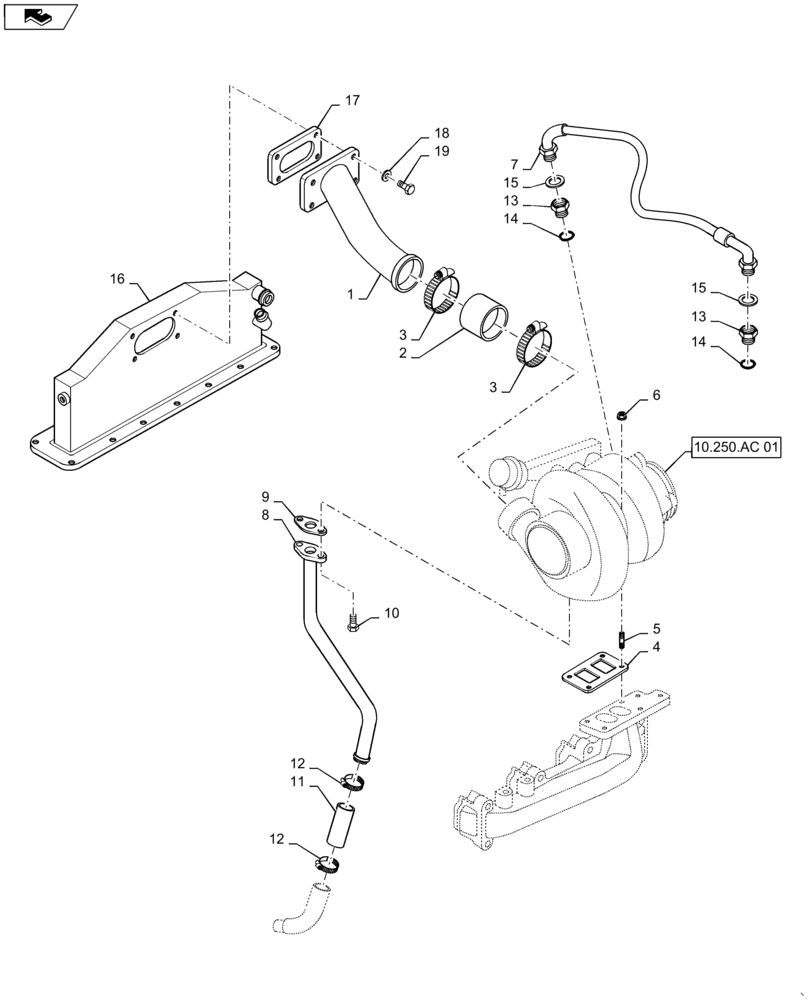

Запчасти Case IH RP110 (10.250.AE [01]) - TURBOCHARGER & RELATED PARTS (10) - ENGINE

1

J933338

AIR INTAKE,Turbo

Air Crossover

1шт.

2

87439340

HOSE,50.00 mm ID x 80.00 mm

Air Intake

1шт.

3

86625019

HOSE CLAMP,44mm - 67mm

2шт.

4

J919369

GASKET,0.5mm Thk

Turbocharger to Manifold

1шт.

5

J818823

STUD

Turbocharger Mounting

1шт.

6

4899086

FLANGE NUT,Hex, M10 x 1.5

10 mm x 1.5

4шт.

7

J913759

HOSE

Turbocharger Oil Supply

1шт.

8

J934064

TUBE,22.22 mm OD x 393, 131 mm L

Turbocharger Oil Drain

1шт.

9

J937706

GASKET,0.79mm Thk

1шт.

10

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

11

J286499

HOSE

76 mm Turbocharger Oil Drain

1шт.

12

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

13

J919687

HYD CONNECTOR

Connect Supply to Turbo, Incl 14

2шт.

14

14453080

O-RING,0.426" ID x 0.07"

1шт.

15

86637735

SEAL,9.53mm ID x 13.97mm OD

Copper 3/8 inch OD

2шт.

16

84573152

AFTERCOOLER

Air Intake

1шт.

17

J914856

GASKET,1.02mm Thk

Air Crossover Connection

1шт.

18

J918189

SEALING WASHER

4шт.

19

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.
