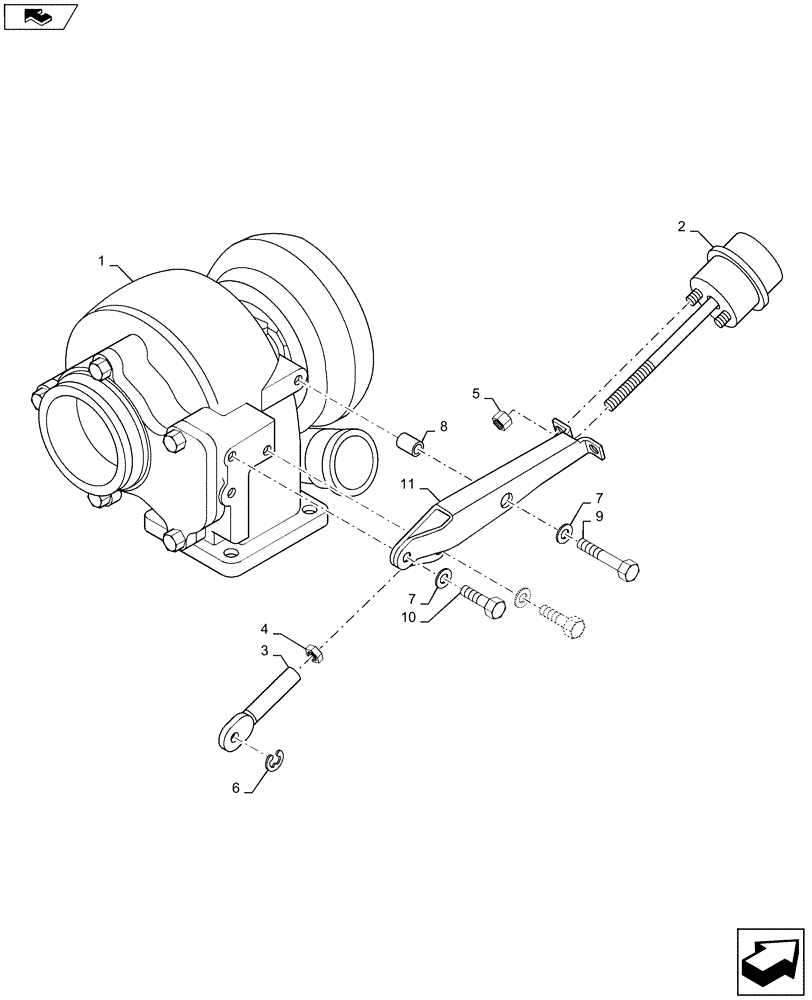

Запчасти Case IH RP110 (10.250.AC [02]) - WASTEGATE ACTUATOR (10) - ENGINE

1

JR802906

REMAN-TURBOCHARGER

Assembly

1шт.

1

JC537751

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J594012

ACTUATOR

Turbo Wastegate

1шт.

3

J528177

LINK

Adjusting

1шт.

4

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

5

86509309

NUT,1/4"-28, G5

2шт.

6

J528221

CIRCLIP

Retaining Ring

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

8

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

Mounting

1шт.

9

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

J535203

SUPPORT

Wastegate Actuator

1шт.
