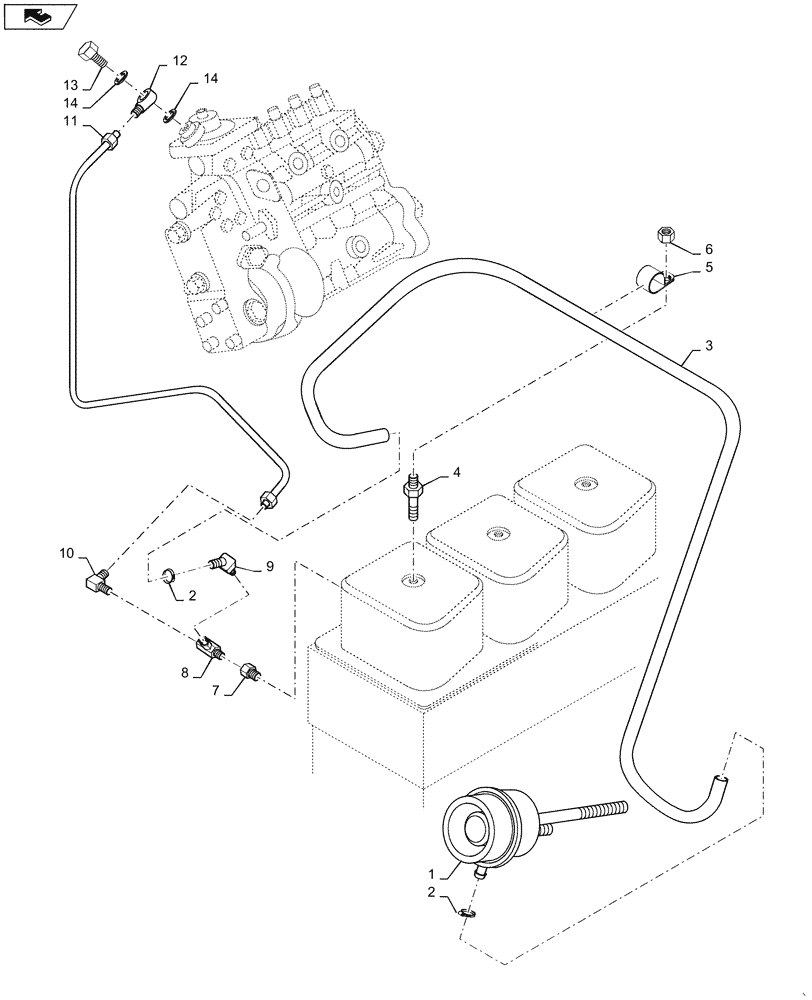

Запчасти Case IH RP110 (10.250.AC[03]) - WASTEGATE ACTUATOR (10) - ENGINE

1

J594012

ACTUATOR

Turbo Wastegate

1шт.

2

86625022

HOSE CLAMP,6.3mm - 15.7mm

2шт.

3

J991047

HOSE,6.35mm ID x 710mm L

1шт.

4

J920344

FLANGE BOLT

Valve Cover and Hose, Wastegate Actuator Mounting

1шт.

5

J920348

CLIP,ELECTRICAL

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

87520047

REDUCER FITTING

1/2 Male x 1/8 Inch Female

1шт.

8

J282406

TEE

1/8 - 27 Standard Thread

1шт.

9

86625232

FITTING,45 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

10

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

11

J991512

TUBE,6.35 mm OD x 120 mm L

Aneroid, Nylon

1шт.

12

J990881

CONNECTION

Banjo

1шт.

13

J903035

BANJO BOLT

M12 x 1.5 x 24 mm

1шт.

14

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 18 x 1 mm

2шт.
