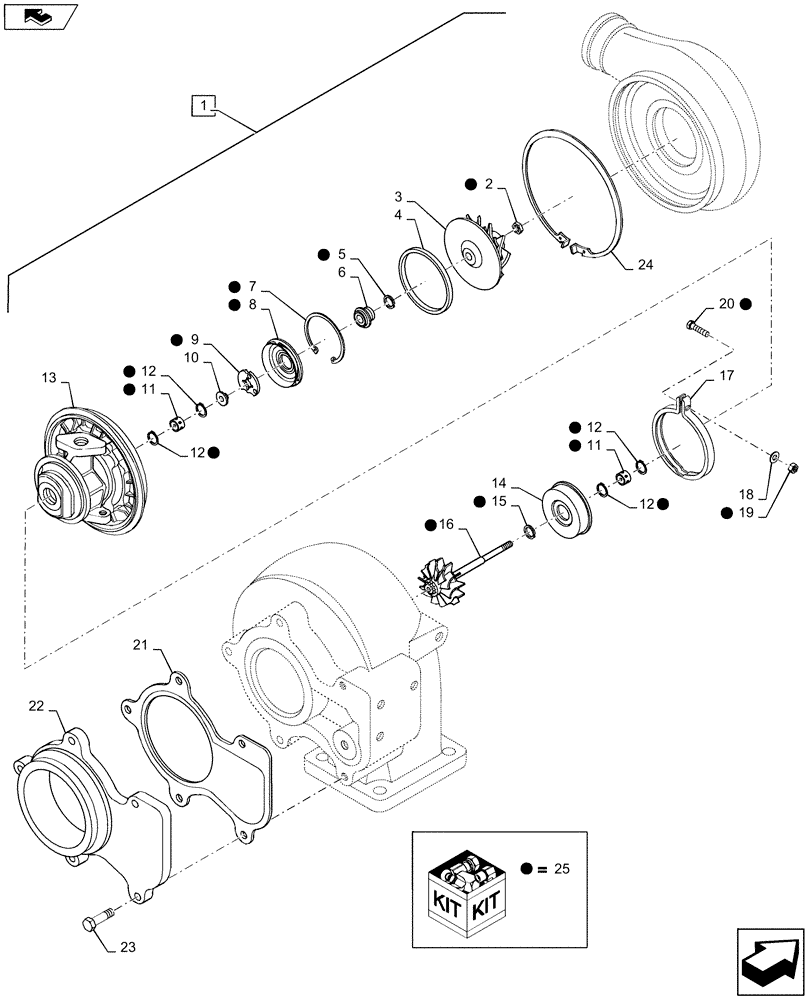

Запчасти Case IH RP110 (10.250.AC[01]) - TURBOCHARGER (10) - ENGINE

1

JR802906

REMAN-TURBOCHARGER

RP 110, Incl 2 - 24

1шт.

1

JC537751

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

Hex Incl with 1

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller Incl with 1

1шт.

4

NSS

NOT SOLD SEPARAT

Plate Seal Incl with 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Slit Ring Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Oil Slinger Incl with 1

1шт.

7

NSS

NOT SOLD SEPARAT

Snap Ring Incl with 1

1шт.

8

NSS

NOT SOLD SEPARAT

Oil Baffle Incl with 1

1шт.

9

NSS

NOT SOLD SEPARAT

Thrust Bearing Incl with 1

1шт.

10

NSS

NOT SOLD SEPARAT

Thrust Collar Incl with 1

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing Incl with 1

2шт.

12

NSS

NOT SOLD SEPARAT

Retaining Ring Incl with 1

4шт.

13

NSS

NOT SOLD SEPARAT

Bearing Housing Incl with 1

1шт.

14

NSS

NOT SOLD SEPARAT

Heat Shield Incl with 1

1шт.

15

NSS

NOT SOLD SEPARAT

Split Ring Seal Incl with 1

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor Assembly with Shaft Incl with 1

1шт.

17

J590606

CLAMP BRACKET,103mm

Adjustable Clamp

1шт.

18

J535971

WASHER

1шт.

19

J592050

NUT

Hex, Lock, Incl Washer

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

Hex

1шт.

21

J535001

GASKET,0.25mm Thk

Turbine Adapter

1шт.

22

J527759

ADAPTER

Connection, Piston Ring, Turbine

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Hex

5шт.

24

J535800

RING, SNAP

1шт.

25

J575205

PACKAGE, REPAIR

1шт.
