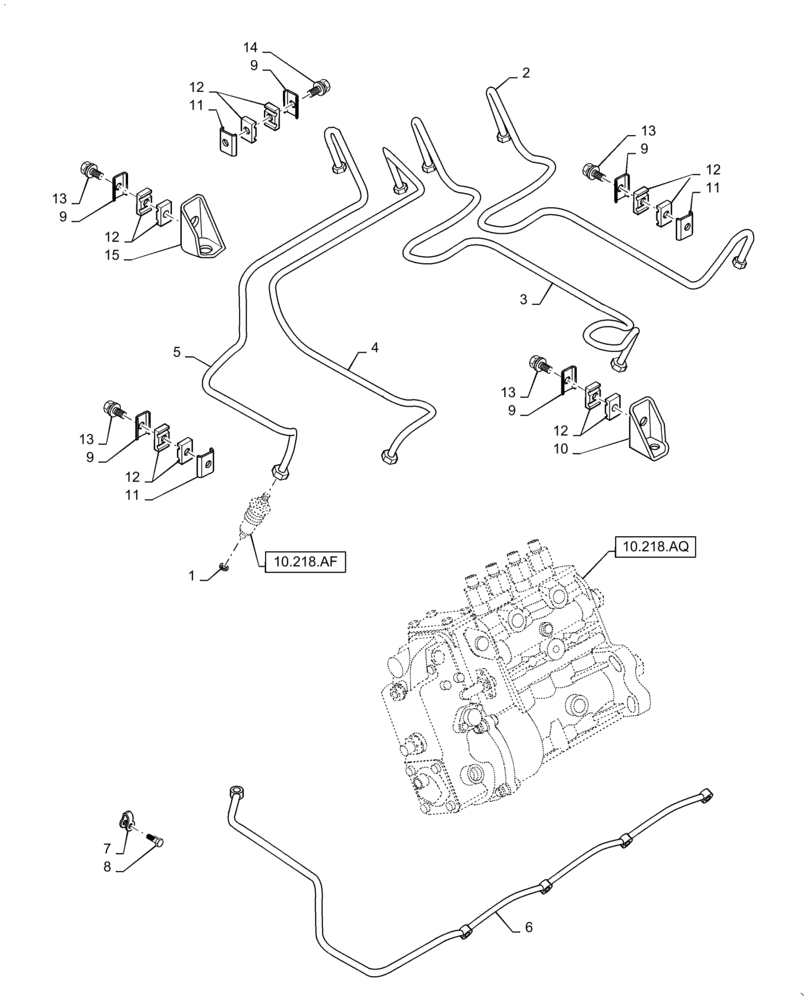

Запчасти Case IH RP110 (10.218.AE[01]) - FUEL INJECTOR, LINES (10) - ENGINE

1

J930324

SEAL

7 mm Injector Tip

4шт.

2

J932054

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 1 Cylinder

1шт.

3

J932055

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 2 Cylinder

1шт.

4

J932056

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 3 Cylinder

1шт.

5

J932057

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 4 Cylinder

1шт.

6

J284579

TUBE

Manifold, Fuel Drain, Tee to Fuel Tank Return

1шт.

7

J903380

SEAL

Connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Banjo Drain, Fuel Drain Manifold

4шт.

9

CASJ904711

SUPPORT

Fuel Tube

5шт.

10

J282942

BRACKET

Fuel Tube

2шт.

11

J917717

BRACE

Fuel Tube

3шт.

12

J917746

CLAMP

Fuel Tube

12шт.

13

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

14

J920855

CAPTIVE WASHER SCREW

M5 x 0.8 x 35 mm

1шт.

15

J282942

BRACKET

Fuel Tube

1шт.
