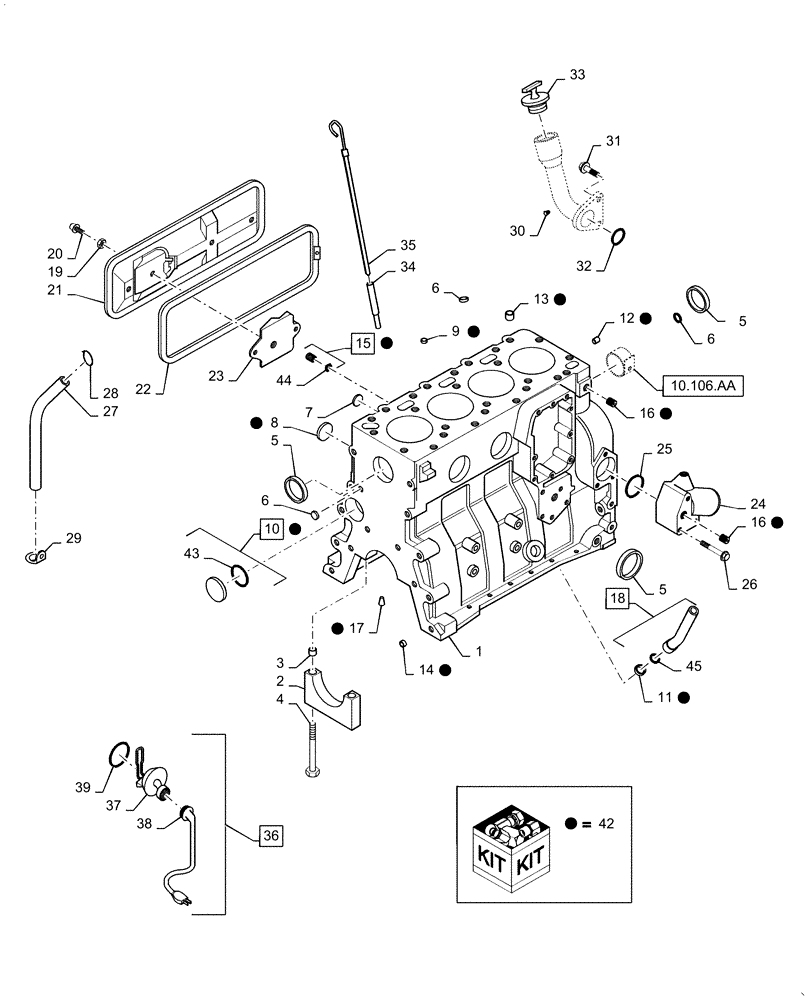

Запчасти Case IH RP110 (10.001.AD[02]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

234277A2R

REMAN-BASIC ENGINE

Assembly

1шт.

1

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

1

J933648R

SHORT ENGINE

Short, Remanufactured

1шт.

1

J933648C

CORE-ENGINE

Return Number

1шт.

1

84271255

BLOCK ASSY.

Stripped, Must Order Ref 42

1шт.

2

87579994

BEARING ASSY

Cap, Main

5шт.

3

J900068

BEARING WASHER

Ring, Dowel, 18mm

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Special, Bearing Cap

10шт.

5

75312133

PLUG

Expansion, 58mm

1шт.

6

J900956

PLUG

Expansion, 18mm

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Expansion

2шт.

8

J900958

PLUG

Expansion, 32mm, Incl with 42

2шт.

9

J900955

PLUG

Expansion, 10mm, Incl with 42

1шт.

10

41-3038

PLUG,Exp, 2 3/8"

Incl with 42, Incl 43

1шт.

11

J920706

PLUG

Expansion, .866mm, Incl with 42

1шт.

12

J900257

PIN,10.01mm OD x 16mm L

Dowel, 16mm, Incl with 42

2шт.

13

J902343

DOWEL

Ring, 16mm, Incl with 42

2шт.

14

J900068

BEARING WASHER

Ring, Dowel, 18mm, Incl with 42

2шт.

15

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8"-27, Incl with 42, Incl 44

2шт.

16

87034671

PLUG,Hex Soc, 1/2"-14

Incl with 42

1шт.

17

J937214

NOZZLE CAP

Piston Cooling, Incl with 42

4шт.

18

J931973

TUBE,0.875" OD

Oil Drain, Incl 45

1шт.

19

J928759

SEALING WASHER

Cover Bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

21

J936186

COVER

Tappet

1шт.

22

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

23

J907586

BAFFLE

Tappet Cover

1шт.

24

J934877

HYD CONNECTOR

Water Inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50mm

1шт.

26

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

27

J918612

TUBE,360.00 mm

Breather

1шт.

28

J904230

CLAMP,25.4mm

Hose, Spring

1шт.

29

J928989

CLIP

Retaining

1шт.

30

84396666

TUBE

Oil Fill

1шт.

31

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

32

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Ring, Filler Tube

1шт.

33

A77424

FILLER CAP

Oil Fill Cap

1шт.

34

84487447

TUBE

Oil Dipstick Tube

1шт.

35

J905781

DIPSTICK

Oil Level

1шт.

36

196803A1

KIT

Engine Block Heater, Incl 37 -39

1шт.

37

NSS

NOT SOLD SEPARAT

Engine Heater Element, 12 Volt, Incl with 36

1шт.

38

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater, Incl with 36

1шт.

39

J910517

O-RING

Heater Sealing, Incl with 36

1шт.

40

250838A2

HYD CONNECTOR

Not Illustrated

1шт.

41

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

For 40, Not Illustrated

1шт.

42

84301646

ENGINE OVERHAUL KIT

Hardware, Incl 8 - 17

1шт.

43

J926047

O-RING,0.07" Thk x 2.239" ID

Incl with 10

1шт.

44

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Incl with 15

2шт.

45

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Incl with 18

1шт.
