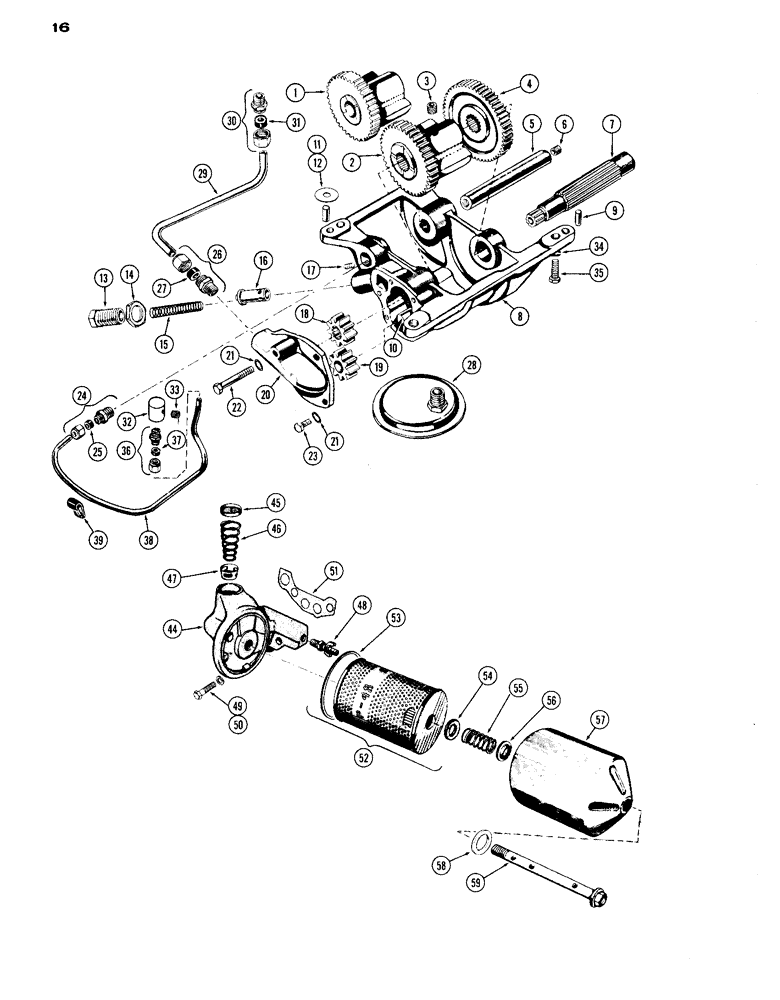

Запчасти Case IH A301D (16) - BALANCER AND OIL PUMP / ENGINE OIL FILTER, DIESEL ENGINE

A22540

BALANCER

& OIL PUMP ASSY - complete

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT - (w/bushings)

1шт.

2

A22561

COUNTERWEIGHT - splined

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" x 3/8" N.C. cup pt.

1шт.

4

A22562

X

GEAR - drive

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

7

A22558

SHAFT

- counterweight drive

1шт.

8

A22541

HOUSING ASSY - balancer

1шт.

9

A8134

PIN

- dowel

2шт.

10

A22543

SHAFT

- stub

1шт.

11

A22670

SHIM,.005" Thk

Hsg. to block .005" Thk

1шт.

12

A22671

SHIM,.010" Thk

Hsg to block .010" Thk

1шт.

13

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

14

O9735AB

NUT - adjusting screw

1шт.

15

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

16

A22566

PLUNGER

- relief, oil pump

1шт.

17

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16" x 5/8" cone pt

1шт.

18

A22564

GEAR

- drive, oil pump (splined)

1шт.

19

A22555

GEAR

- driven, oil pump (w/bushing)

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

22

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - tube, 1/4" tube x 1/4" P.T.

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, 5/8" tube x 1/2" P.T.

1шт.

27

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

28

A22590

FILTER SCREEN

SCREEN - oil inlet

1шт.

29

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

30

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, 5/8" tube x 1/2" P.T.

1шт.

31

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

32

A22592

PLUG

- oil gallery, cyl. block

1шт.

33

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, Serial Range: plug-block

1шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

36

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR - tube, 1/4" tube x 1/8" P.T.

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

A22596

TUBE

- oil gallery to balancer shaft

1шт.

39

A20541

CLIP

- oil tube

1шт.

44

A23469

BASE

ASSY - oil filter

1шт.

45

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

46

A21091

VALVE SPRING

SPRING - relief valve

1шт.

47

A21090

VALVE

- relief

1шт.

48

A23656

COCK, DRAIN

VALVE - drain

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

50

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex hd

1шт.

51

A21084

GASKET

-, Serial Range: base-block

1шт.

52

A21475

ENGINE OIL FILTER

ELEMENT KIT - filter

1шт.

53

A21473

GASKET

-, Serial Range: shell-base

1шт.

54

A21474

GASKET

- inner

1шт.

55

A21478

SPRING

- retainer, element

1шт.

56

A21477

RETAINER

- spring

1шт.

57

A21471

SHELL

- filter

1шт.

58

A21479

GASKET

- bolt to shell outer

1шт.

59

A21476

BOLT

-, Serial Range: filter-base

1шт.
