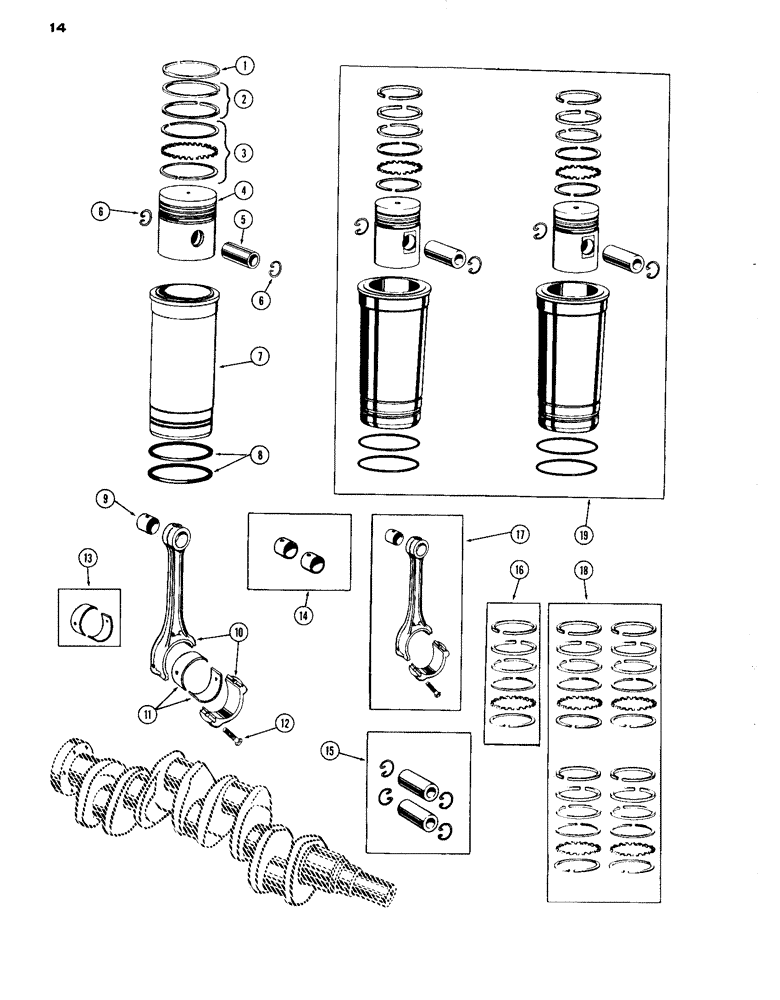

Запчасти Case IH A301D (14) - PISTONS, SLEEVES AND CONNECTING RODS, DIESEL ENGINE

1

NSS

NOT SOLD SEPARAT

RING - piston, top (Order ref. 16 or 18)

4шт.

2

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd (Order ref. 16 or 18)

8шт.

3

NSS

NOT SOLD SEPARAT

RING ASSY. - oil (Order ref. 16 or 18)

4шт.

4

A33712

X

PISTON - engine, 4-3/8" bore

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - wrist, piston (Order A21725)

4шт.

6

A21016

RING, SNAP

RING - retainer, piston pin

8шт.

7

A23660

SLEEVE

- cylinder

4шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing

8шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order A21722)

4шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting (Order A24424)

4шт.

11

NSS

NOT SOLD SEPARAT

LINER - connecting rod (Order ref. 13)

8шт.

12

O9718AB

X

BOLT - rod cap

8шт.

13

A20393

LINING

LINER KIT - brg., conn. rod (Std.)

4шт.

13

A20569

JOURNAL

LINER KIT - brg., conn. rod (.002" undersize)

4шт.

13

A20571

BEARING LINER

LINER KIT - brg., conn. rod (.010" undersize)

4шт.

13

A20573

KIT

LINER KIT - brg., conn. rod (.020" undersize)

4шт.

13

A20576

LINING

LINER KIT - brg., conn. rod (.030" undersize)

4шт.

14

A21722

BUSHING

KIT - connecting rod (Set of 2)

2шт.

15

A21725

KIT

PIN KIT - piston (Incl. 2-pins & 4 rings)

2шт.

16

A40363

RING

KIT - piston (Re-ring single piston)

4шт.

17

A24424

ROD

ASSY. - connecting (Incl. rod, cap, bushing and two cap bolts)

4шт.

18

A20856

PISTON RING SET

RING KIT - piston (re-ring 4-pistons)

1шт.

19

A40357

SLEEVE ASSY

SLEEVE & PISTON KIT - matched (Set of 2) (Incl. piston & rings, sleeves & "o" rings and pin & retaining rings)

2шт.
