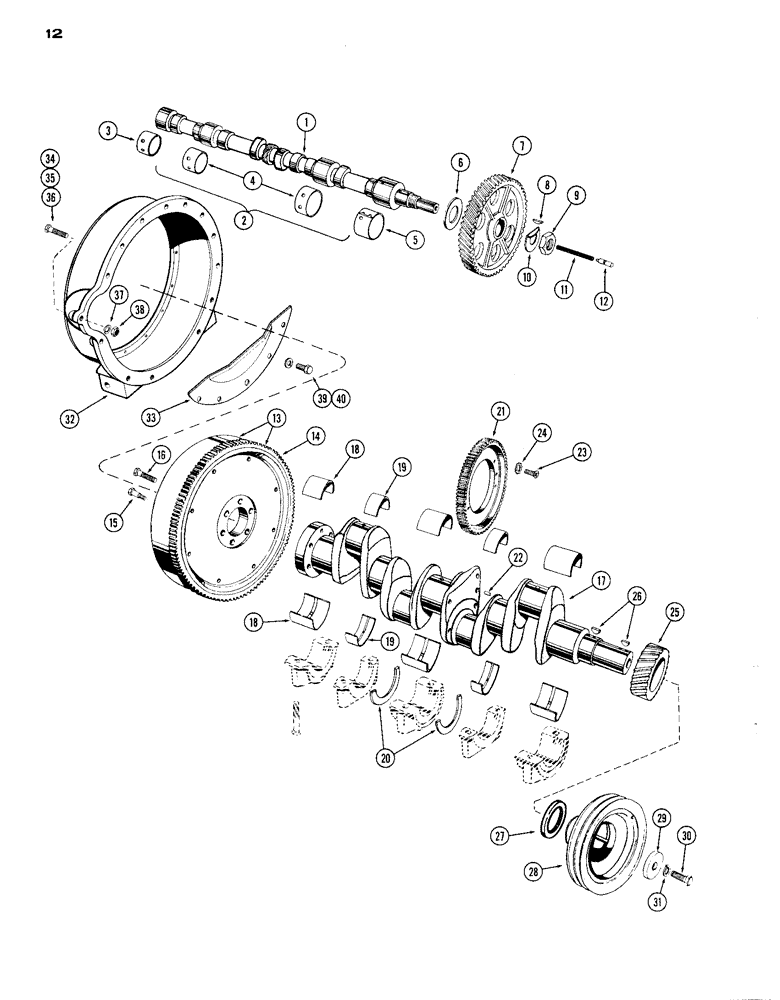

Запчасти Case IH A301D (12) - CAMSHAFT / CRANKSHAFT - FLYWHEEL & HOUSING, DIESEL ENGINE

1

A23495

CAMSHAFT

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft 4th (Order A23577)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft 2nd & 3rd (Order A23577)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft 1st (Order A23577)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

O971AB

X

NUT - camshaft gear

1шт.

10

O970AB

X

LOCKWASHER - camshaft nut

1шт.

11

O9726AB

X

SPRING - thrust plunger

1шт.

12

O9725AB

X

PLUNGER - thrust, camshaft

1шт.

13

A10420

FLYWHEEL ASSY.

1шт.

14

O9830AB

X

GEAR - ring, starting motor

1шт.

15

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

SCREW - dowel, Serial Range: flywheel-crankshaft

2шт.

16

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

SCREW - cap, Serial Range: flywheel-crankshaft

4шт.

17

A22578

CRANKSHAFT

1шт.

18

4706AA

X

LINER KIT - wide brg., crankshaft (Std size)

3шт.

18

A7182

KIT

LINER KIT - wide brg., crankshaft (-.002")

3шт.

18

A7188

BEARING LINER

LINER KIT - wide brg., crankshaft (-.010")

3шт.

18

A7194

KIT

LINER KIT - wide brg., crankshaft (-.020")

3шт.

18

A7200

KIT

LINER KIT - wide brg., crankshaft (-.030")

3шт.

19

A20394

LINING

LINER KIT - narrow brg., crankshaft (Std. size)

2шт.

19

A20579

LINING

LINER KIT - narrow brg., crankshaft (-.002")

2шт.

19

A20582

LINING

LINER KIT - narrow brg., crankshaft (-.010")

2шт.

19

A20585

KIT

LINER KIT - narrow brg., crankshaft (-.020")

2шт.

19

A20588

KIT

LINER KIT - narrow brg., crankshaft (-.030")

2шт.

20

O9705AB

X

WASHER - thrust (Std. size)

2шт.

20

A7204

WASHER

- thrust (.006" oversize)

2шт.

21

A22576

GEAR

ASSY. - drive, balancer

1шт.

22

A8134

PIN

- dowel

1шт.

23

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer, Serial Range: gear-crankshaft

4шт.

24

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

25

O9707AB

X

GEAR - crankshaft

1шт.

26

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley to crankshaft #C, 5/16" x 1 1/8", HT

2шт.

27

A23433

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

28

A23644

PULLEY

- fan drive, crankshaft

1шт.

29

A23229

WASHER

- retainer, fan drive pulley

1шт.

30

O10282AB

X

BOLT -, Serial Range: pulley-crankshaft

1шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

A9397

HOUSING

- flywheel

1шт.

33

A7081

BEARING

SHIELD - dust, flywheel

1шт.

34

A32607

STEP BOLT

- hsg. to cyl. block

1шт.

35

A32608

STEP BOLT

BOLT - hsg. to cyl. block

1шт.

36

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

37

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

38

25-1012

NUT,3/4"-10, G5

2шт.

39

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

40

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.
