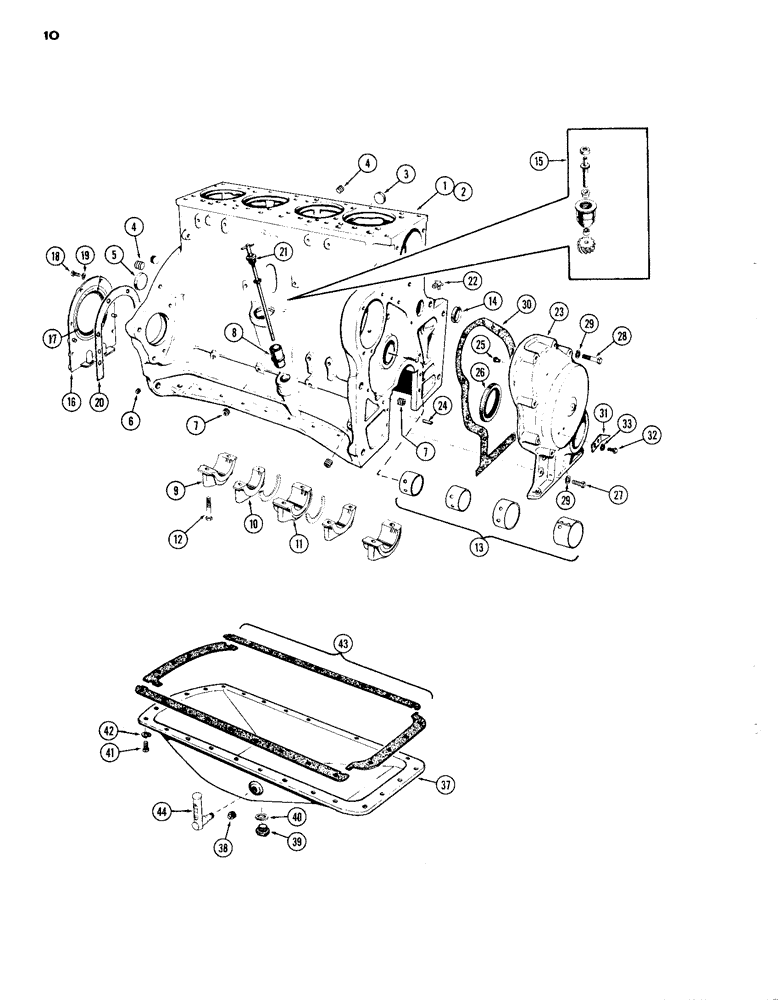

Запчасти Case IH A301D (10) - CYLINDER BLOCK ASSEMBLY / OIL PAN, DIESEL ENGINE

1

A40361

SHORT ENGINE

SHORT BLOCK ASSY - (includes stripped block, sleeves, crankshaft and gear, bearing liners, balancer drive gear, rear oil seal and retainer, conn. rod and liners, pistons, rings, pins, camshaft and gear, push rod and lifters)

1шт.

2

A23494

BLOCK

ASSY - stripped

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, left side

1шт.

4

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" sq. socket hd

1шт.

5

A24361

PLUG

- cup, rear camshaft hole

1шт.

6

221-41

PLUG

- pipe, 1/8" slotted hd

2шт.

7

221-1843

PLUG

- pipe, 3/8" socket hd

4шт.

8

A20714

X

SOCKET - oil level gauge

1шт.

9

A24941

CAP

- wide bearing, crankshaft

2шт.

10

A24942

CYLINDER END CAP

CAP - narrow bearing, crankshaft

2шт.

11

A24943

CAP

- thrust bearing, crankshaft

1шт.

12

O9706AB

BOLT - brg., Serial Range: cap-block

10шт.

13

A23577

KIT

BUSHING SET - camshaft

1шт.

14

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front

1шт.

15

A33610

DRIVE

ASSY - tachometer

1шт.

16

A32182

RETAINER

ASSY. - rear oil seal

1шт.

17

A23085

OIL SEAL

OIL SEAL - rear retainer, crankshaft

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

A20739

GAUGE

- oil level

1шт.

22

A23656

COCK, DRAIN

VALVE - water drain

1шт.

23

A20718

COVER ASSY. - timing gear

1шт.

24

O9710AB

PIN - dowel, Serial Range: cover-block

2шт.

25

O9754AB

BUTTON - thrust

2шт.

26

A23433

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex. hd.

8шт.

29

92-6

LOCK WASHER,3/8"

10шт.

30

A33018

GASKET

-, Serial Range: cover-block

1шт.

31

A21362

CLIP

POINTER - timing

1шт.

32

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

33

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" int.-ext. Shakeproof

1шт.

37

A23010

PAN - oil, engine

1шт.

38

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd. (less A11052)

1шт.

39

A14280

PLUG

- drain

1шт.

40

O9844AB

X

GASKET - drain plug

1шт.

41

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

26шт.

42

92-6

LOCK WASHER,3/8"

26шт.

43

A7616

GASKET KIT

GASKET SET - oil, Serial Range: pan-block

1шт.

44

A11052

GAUGE - sight, oil level

1шт.
