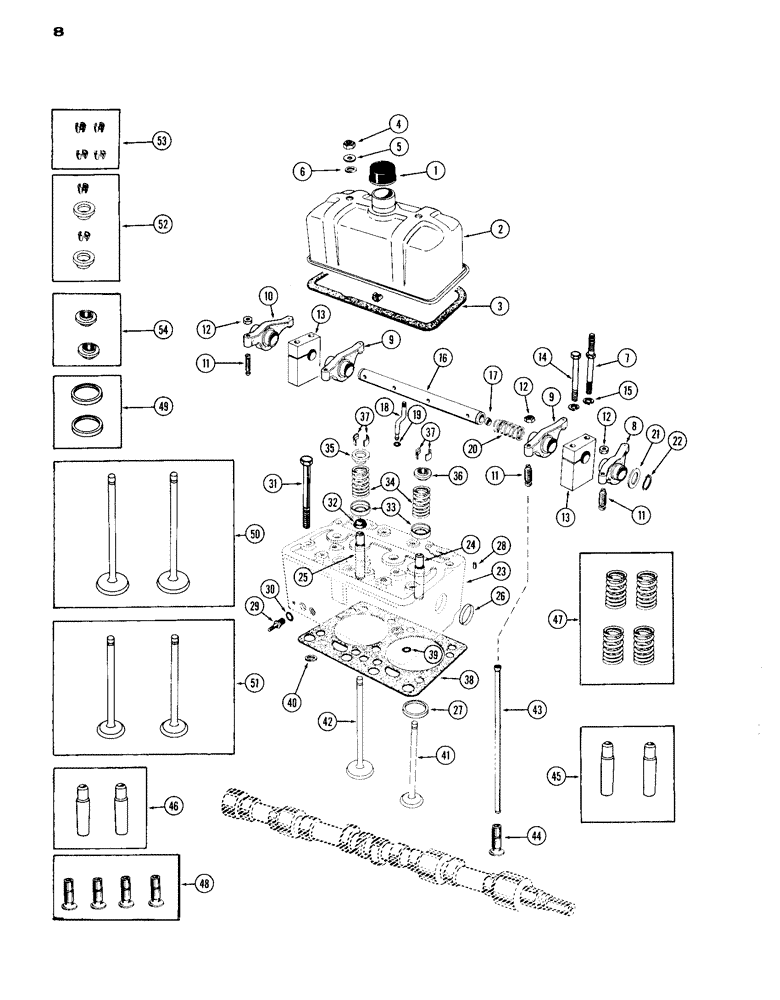

Запчасти Case IH A301D (08) - CYLINDER HEAD ASSEMBLY, DIESEL ENGINE

1

O9960AB

X

BREATHER - valve cover

2шт.

2

A20345

COVER - cylinder head

2шт.

3

O9959AB

X

GASKET - cover

2шт.

4

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

5

A23683

WASHER

- cover nut

4шт.

6

A23684

GASKET

GASKET - cover nut

4шт.

7

O10732AB

STUD - cover & rocker arm brkt.

4шт.

8

A22324

ROCKER

ARM - rocker, #1 & #3 exhaust valve

2шт.

9

A22322

ROCKER

ARM - rocker, intake valve

4шт.

10

A22326

ROCKER

ARM - rocker, #2 & #4 exhaust valve

2шт.

11

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

8шт.

12

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam 3/8" N.F. hex

8шт.

13

O9773AB

BRACKET - rockershaft

4шт.

14

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

15

92-7

LOCK WASHER,7/16"

8шт.

16

A23671

X

SHAFT - rocker arm

2шт.

17

A22318

PLUG - rockershaft

2шт.

18

O9771AB

X

TUBE - oil, rockershaft

2шт.

19

O9772AB

X

"O" RING - oil tube

2шт.

20

O9769AB

X

SPRING - rockershaft

2шт.

21

O9770AB

X

WASHER - rockershaft

1шт.

22

O3658CH

X

SNAP RING - rockershaft

4шт.

23

A33644

X

HEAD ASSY - stripped

2шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (See ref. 45)

4шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (See ref. 46)

4шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

- cup

2шт.

27

NSS

NOT SOLD SEPARAT

INSERT - valve seat (See ref. 49)

4шт.

28

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel body

2шт.

29

A10678

STUD

- large, injector

2шт.

30

A10679

GASKET

"O" RING - stud

2шт.

31

A23355

BOLT

-, Serial Range: head-block

18шт.

32

A10726

SEAL

SHIELD - rubber, intake valve

4шт.

33

O9751AB

X

SEAT - valve spring

8шт.

34

NSS

NOT SOLD SEPARAT

SPRING - valve (See ref. 47)

8шт.

35

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (See ref. 52)

4шт.

36

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (See ref. 54)

4шт.

37

NSS

NOT SOLD SEPARAT

LOCK - valve spring (See ref. 53)

16шт.

38

A23117

GASKET

-, Serial Range: head-block

2шт.

39

O8569AB

X

"O" RING - oil passage

2шт.

40

A7669

RING

- seal, oil passage

4шт.

41

NSS

NOT SOLD SEPARAT

VALVE - exhaust (See ref. 51)

4шт.

42

NSS

NOT SOLD SEPARAT

VALVE - intake (See ref. 50)

4шт.

43

A21060

ROD

PUSH ROD

8шт.

44

NSS

NOT SOLD SEPARAT

LIFTER - push rod (See ref. 48)

8шт.

45

A21674

GUIDE

- exhaust valve stem (Set of 2)

2шт.

46

A21671

GUIDE

- intake valve stem (Set of 2)

2шт.

47

A21694

SPRING

KIT - valve (Set of 4)

2шт.

48

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

49

A21683

SHAFT

INSERT KIT - exh. valve seat (Set of 2)

2шт.

50

A24921

KIT

VALVE KIT - intake (Set of 2)

2шт.

51

A24881

KIT

VALVE KIT - exhaust (Set of 2)

2шт.

52

A21657

LOCK

RETAINER KIT - valve spring (Set of 2 w/locks)

2шт.

53

A40352

LOCK

KIT - retainer (Set of 8)

2шт.

54

A24993

CAP

ROTO-CAP KIT - exhaust valve (Set of 2)

2шт.
