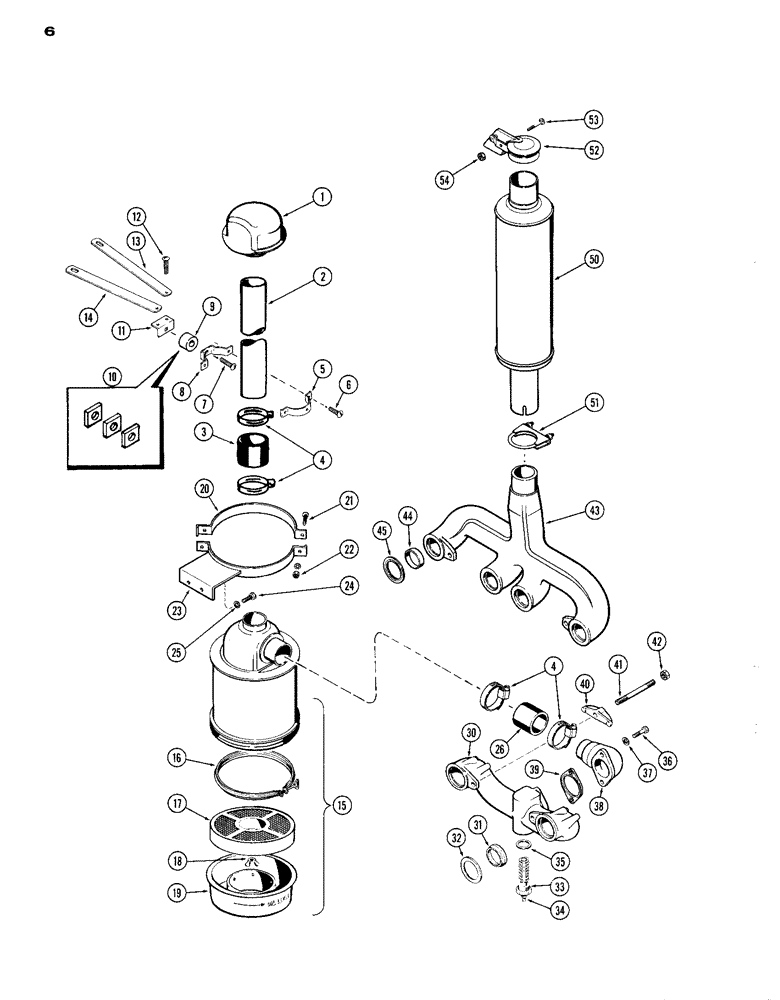

Запчасти Case IH A301D (06) - AIR CLEANER / INTAKE & EXHAUST MANIFOLD / MUFFLER (OPTIONAL), DIESEL ENGINE

1

A21433

CAP

- pre-screener

1шт.

2

A22369

STACK - intake, air cleaner

1шт.

3

A9826AB

HOSE - stack to air cleaner

1шт.

4

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

5

O9823AB

STRAP - intake pipe

1шт.

6

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- mach., 1/4" x 3/4" N.F., rd. hd.

2шт.

7

11-532

X

BOLT - 5/16" x 2" rd. hd., sq. neck

1шт.

8

O9824AB

SUPPORT - intake pipe strap

1шт.

9

O8266AB

X

SPACER - support (Type 1 Units)

1шт.

10

A11491

SPACER - support (Type 2 & 3 Units)

3шт.

11

A9741

BRACKET - pipe support strap (Type 1 Units)

1шт.

12

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C., rd. hd.

2шт.

13

A9743

STRAP - pipe support (Type 1 Units) (10-7/8")

1шт.

14

A9742

STRAP - pipe support (Type 1 Units) (11-3/4")

1шт.

15

A21432

CLEANER

ASSY. - air

1шт.

16

O10475AB

X

CLAMP ASSY. - oil cup

1шт.

17

A22194

ELEMENT

SCREEN - oil bath

1шт.

18

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

1шт.

19

A22193

CUP - oil

1шт.

20

O9820AB

STRAP - support, air cleaner

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

23

A11830

SUPPORT - air cleaner

2шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

A21828

HOSE

- air, Serial Range: cleaner-elbow

1шт.

30

A21005

MANIFOLD - intake

1шт.

31

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

32

A21054

MANIFOLD GASKET

- intake manifold

2шт.

33

A24396

X

HEATER - manifold

1шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Wire to heater

1шт.

35

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

36

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

A21007

ELBOW - intake

1шт.

39

A21055

MANIFOLD GASKET

- intake elbow

1шт.

40

A24368

CLAMP

- intake & exhaust manifold

4шт.

41

O9817AB

X

STUD - manifold clamp

4шт.

42

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

43

A21006

MANIFOLD - exhaust

1шт.

44

A21056

CAP

FERRULE - exhaust manifold

4шт.

45

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

A34202

ATTACHMENT - muffler

1шт.

50

A24314

MUFFLER

- exhaust

1шт.

51

A13240

CLAMP,2-5/8" ID

ASSY. - muffler

1шт.

52

A33742

CAP

ASSY. - weather, muffler

1шт.

53

11-532

X

BOLT - carriage, 5/16" x 2" N.C.

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

- N.C. hex

1шт.
