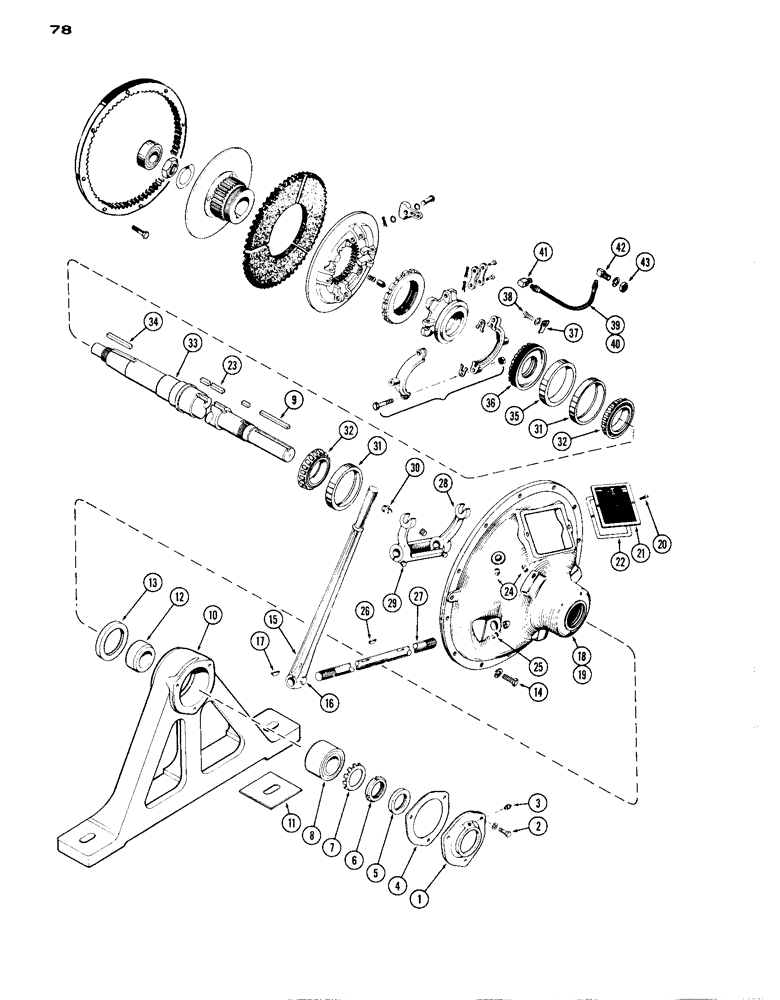

Запчасти Case IH A301D (78) - P.T.O. CLUTCH, MULTIPLE PULLEY

1

A10549

CAP - brg., clutch shaft

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

3

191-1

FITTING - grease, 1/8" Str. P.T.

1шт.

4

O3450AB

X

GASKET - cap, shaft support

1шт.

5

VT4447

X

SEAL - oil, shaft brg. cap

1шт.

6

O9023AB

X

NUT - lock, shaft support

1шт.

7

O9024AB

WASHER - lock, brg. nut

1шт.

8

A10547

BEARING - outer, clutch shaft

1шт.

9

O5694HT

KEY - pulley, outer

1шт.

10

A9803

SUPPORT - shaft, clutch

1шт.

11

A8884

SHIM - support (.015")

1шт.

11

A8885

SHIM - support (.030")

1шт.

11

A8886

SHIM - support (.060")

1шт.

12

A8887

COLLAR - clutch shaft

1шт.

13

O7041AB

X

SEAL - oil, outer clutch sft. brg.

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

15

4716A

LEVER - clutch

1шт.

16

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C., hex.

1шт.

17

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Lever to shaft #15, 1/4" x 1"

1шт.

18

A34122

CLUTCH ASSY. - power take-off

1шт.

19

A40259

HOUSING

- clutch P.T.O.

1шт.

20

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- sems w/lock, 1/4" x 1/2" N.C.

2шт.

21

A40257

PLATE - instruction & inspection

1шт.

22

A40249

GASKET - plate, inspection

1шт.

23

A40256

KEY

- shaft, pulley, 5/8" sq. x 5-3/8"

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lincoln #205010 1/4"-28 x .56" lg, Self-Tap

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" Lincoln Str. #5000

2шт.

26

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Shaft #15, 1/4" x 1", HT

2шт.

27

A40250

OIL RESERVOIR

SHAFT - operating, P.T.O.

1шт.

28

A40246

FORK

YOKE - throw-out, P.T.O.

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C., hex.

2шт.

30

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - lube, 1/4" Lincoln Str. #105000

1шт.

31

O3755AB

X

CUP - bearing (Timken #394A)

2шт.

32

O5084AB

X

CONE - bearing (Timken #395)

2шт.

33

A34123

SHAFT - clutch, P.T.O.

1шт.

34

A40305

KEY

- clutch shaft, P.T.O.

1шт.

35

A40253

SPACER - bearing, P.T.O.

1шт.

36

A40252

RETAINER - bearing, P.T.O.

1шт.

37

A40251

LOCK - bearing retainer

1шт.

38

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

39

A40255

HOSE ASSY. - flexible, P.T.O.

1шт.

40

A40255

HOSE - flexible, clutch

1шт.

41

A40195

FITTING

- hose, clutch

1шт.

42

A40196

X

FITTING - hose, clutch

1шт.

43

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F., hex.

1шт.
