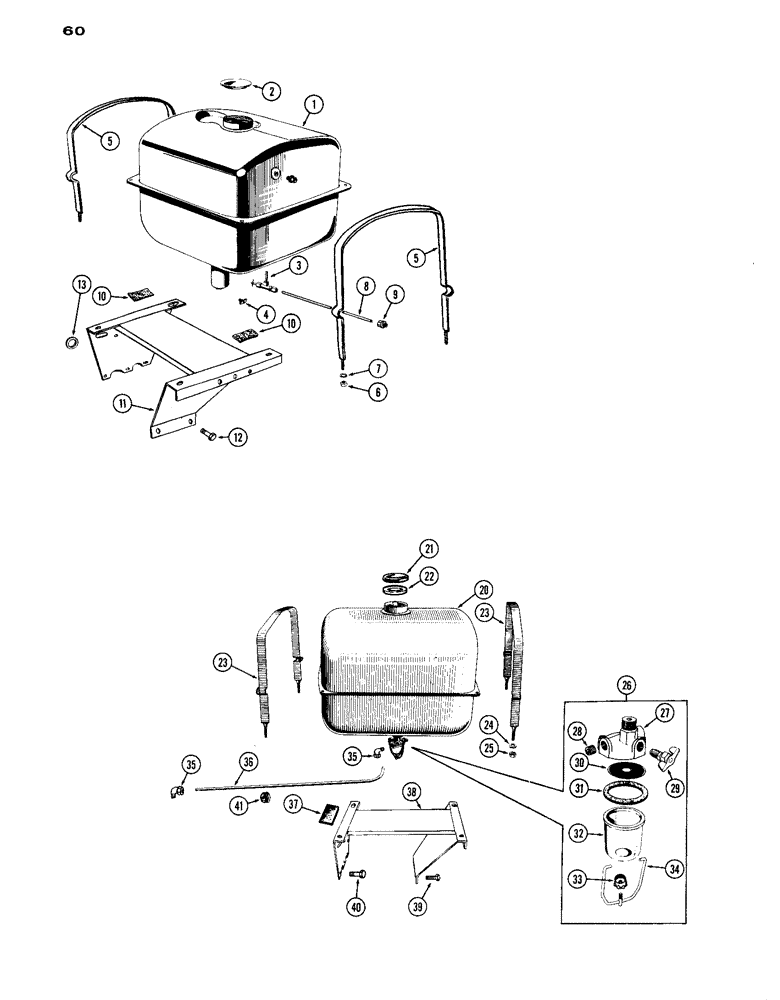

Запчасти Case IH A301D (60) - FUEL TANK SYSTEM, TYPE THREE DIESEL UNITS / TYPE THREE GASOLINE UNITS

1

A23506

TANK - fuel, Type 3 diesel units

1шт.

2

A33558

CAP

- filler, fuel tank

1шт.

3

O9934AB

X

VALVE ASSY. - needle

1шт.

4

217-102

PLUG, DRAIN

VALVE - drain, fuel tank

1шт.

5

A9284

STRAP - retainer, fuel tank

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

4шт.

7

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

LOCKWASHER - 3/8" int.-ext. Shakeproof

4шт.

8

A20652

TUBE - tank to 1st. stage filter

1шт.

9

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - 3/8" tube x 1/4" male P.T.

1шт.

10

O4796AB

X

CUSHION - fuel tank

4шт.

11

A22370

SUPPORT - fuel tank

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

A7808

GROMMET

- fuel tube thru support

1шт.

20

A9573

TANK - fuel, Type 3 gasoline units

1шт.

21

O10909A

X

CAP - filler, fuel tank

1шт.

22

O1036AB

X

GASKET - filler cap

1шт.

23

A9284

STRAP - retainer, fuel tank

2шт.

24

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

LOCKWASHER - 3/8" int.-ext. Shakeproof

4шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

4шт.

26

O4905AB

X

STRAINER ASSY. - fuel

1шт.

27

A11216

HEAD - strainer

1шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

1шт.

29

A11205

VALVE

ASSY. - needle

1шт.

30

A11211

FILTER SCREEN

SCREEN - filter

1шт.

31

A11208

GASKET

- bowl to head (cork)

1шт.

32

A11209

BOWL

- strainer fuel

1шт.

33

A11210

ADJUSTER

NUT ASSY. - bowl retainer

1шт.

34

A11212

BAIL

ASSY. - strainer bowl

1шт.

35

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- 5/16" tube x 1/8" male p.t.

2шт.

36

A9338

TUBE -, Serial Range: strainer-carburetor

1шт.

37

O4796AB

X

CUSHION - fuel tank

4шт.

38

A22370

SUPPORT - fuel tank

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- 1/2" x 1-3/4" N.C., hex.

3шт.

41

A7808

GROMMET

- fuel tube thru support

1шт.
