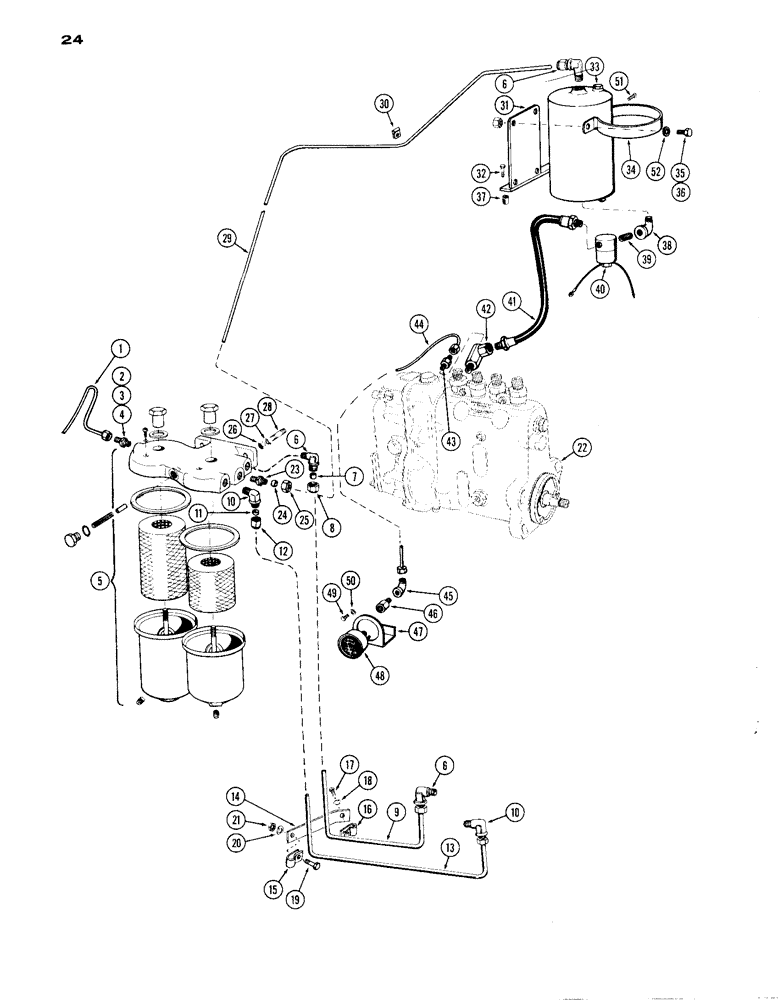

Запчасти Case IH A301D (24) - FUEL INJECTION FILTER SYSTEM, DIESEL ENGINE

1

A34213

TUBE - fuel tank to prim, filter (type 3 Unit)

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - fuel tube (3/8" tube x 1/4" P.T.)

1шт.

3

222-104

SLEEVE,3/8" Tube

- conn. (3/8" O.D. tube)

1шт.

4

222-114

NUT,5/8"-24

NUT - conn. (3/8" O.D. tube)

1шт.

5

A40435

FILTER

ASSY. - primary (Repairs, P. 23)

1шт.

6

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" P.T.

3шт.

7

222-103

SLEEVE,5/16" Tube

1шт.

8

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

9

A20650

TUBE

- first stage filter to fuel pump

1шт.

10

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T.

2шт.

11

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

12

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

13

A20651

TUBE

- fuel pump to second stage filter

1шт.

14

A20656

BRACKET - 1st & 2nd stage tube clip

1шт.

15

O9649AB

CLIP - tube A20651

1шт.

16

A20688

CLIP

- tube A20650

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

18

92-5

LOCK WASHER,5/16"

1шт.

19

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4" x 3/4" N.C. RD. HD.

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

1шт.

22

A22633

PUMP ASSY. - fuel (Repairs, P. 23)

1шт.

23

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" tube x 1/4" P.T.

1шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT - connector, 5/16" O.D. tube

1шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

O1579AB

STUD - mtg., primary filter

2шт.

29

A20657

TUBE - 2nd stage to final filter

1шт.

30

A7922

CLIP

- tube, secondary filter

1шт.

31

A20723

BRACKET - final filter mounting

1шт.

32

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

33

O9985AB1

FILTER - final

1шт.

34

O9986AB

CLAMP - final stage filter

2шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

37

O10322AB

SPACER - bracket, filter

2шт.

38

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- strut, 90deg. x 1/4" P.T.

1шт.

39

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - pipe, 1/4" P.T. x 15/16" long

1шт.

40

O10603AB

VALVE - solenoid, fuel

1шт.

41

A20538

FUEL HOSE,0.38" ID x 8.50"

Solenoid valve to pump union 0.38" ID x 8.50"

1шт.

42

A20539

FITTING

UNION - 90deg., hose to fuel pump

1шт.

43

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - tube, 1/8" tube x 1/8" P.T.

1шт.

44

A9364

TUBE

- fuel pressure gauge

1шт.

45

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- 1/8" tube x 1/8" P.T., 90deg.

1шт.

46

O10381AB

SNUBBER - fuel oil gauge

1шт.

47

A14498

X

SUPPORT - fuel pressure gauge

1шт.

48

A11471

X

GAUGE - pressure, fuel oil

1шт.

49

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

51

75-424

SCREW

- mach., 1/4" x 1-1/2" N.C., rd. hd.

2шт.

52

193-45

WASHER,Ext-Int Tooth, 5/16"

LOCKWASHER - 5/16" ext.-int. Shakeproof

4шт.
